Waterco Micron Top Mount Deep Bed Filter Range
Waterco Micron Top Mount Deep Bed Filter Range
We sell below minimum advertised price. Inquire to request our best price.

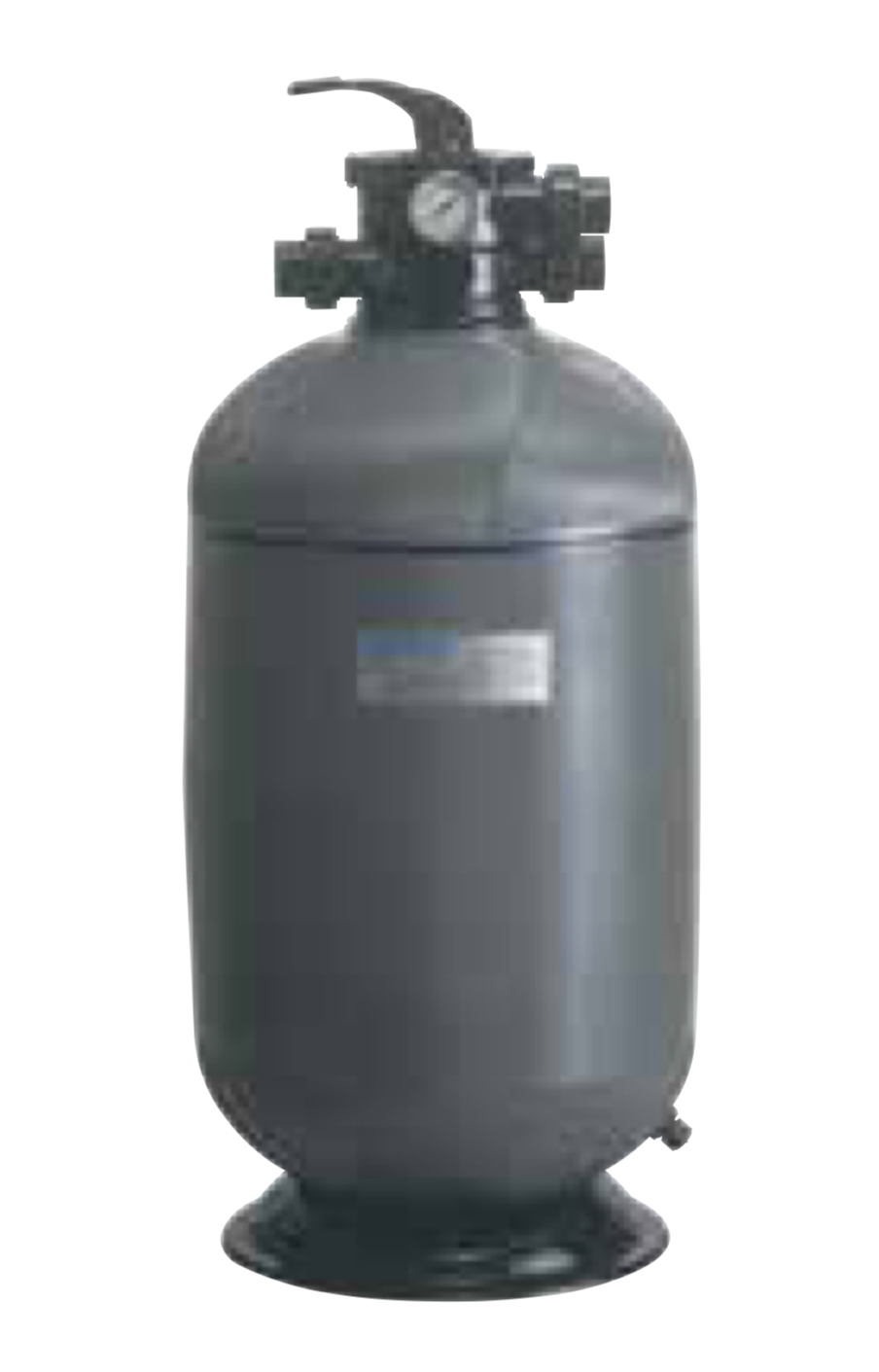

Waterco Micron Top Mount Deep Bed Media Filter
Extra-deep 500 mm media bed for higher dirt capacity and finer clarity
The Micron Top Mount Deep Bed boosts filtration performance with a guaranteed 500 mm bed depth that increases dirt-holding capacity and enhances water clarity—ideal for larger residential pools and heavier-duty use. The seamless, UV-resistant fibreglass tank pairs with a compact top-mount multiport for simple plumbing, efficient backwashing and neat installs.
Key Features
- 500 mm deep bed design for greater dirt capacity and improved in-depth filtration.
- Filament-wound fibreglass vessel: seamless, corrosion-proof and UV-resistant.
- Top-mount six-position multiport valve for filter/backwash/rinse/waste/recirculate/close.
- Hydraulically balanced laterals to promote even flow and efficient backwashing.
- Compatible with sand, glass, or zeolite media (capacities per model below).
Warranty
| Component | Residential Warranty | Commercial Warranty |
|---|---|---|
| Filter Tank | 10 Years (Conditional) | 5 Years (1 year full + 4 years pro rata) |
| Multiport Valve | 3 Years | 2 Years |
| Labour | 1 Year | — |
| Other Components | 1 Year | 1 Year |
*Please refer to Waterco’s official Warranty Terms and Conditions for full details.
Model Comparison Table
| Model | Valve Size (mm) | Inner Ø (mm) (approx. inch) |
Filter Area (m²) | Bed Depth (mm) | Max Flow (L/min) | Max Pool Size* (L) | Backwash Flow (L/min) | Media Volume (L) | Glass Pearl (kg) | Ecopure 0.815–1.5 (kg) | Sand 16/30 (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SD400 | 40 | 400 (≈16″) | 0.13 | 500 | 101 | 36,000 | 84 | 68 | 109 | 82 | 100 |
| SD500 | 40 | 500 (≈20″) | 0.20 | 500 | 157 | 57,000 | 131 | 105 | 169 | 126 | 154 |
| SD600 | 40 | 600 (≈24″) | 0.28 | 500 | 226 | 81,000 | 189 | 161 | 259 | 193 | 235 |
| SD750 | 50 | 750 (≈30″) | 0.44 | 500 | 353 | 127,000 | 295 | 247 | 398 | 296 | 360 |
| SD900 | 50 | 900 (≈36″) | 0.64 | 500 | 509 | 183,000 | 424 | 377 | 607 | 452 | 550 |
*Max pool size based on 6-hour turnover (per Waterco documentation). All specifications acquired from verified Waterco sources.
Frequently Asked Questions
Q1: How is the deep bed different from the standard Micron top mount?
Deep bed models use a 500 mm media bed (vs a shallower bed on standard tanks) to increase dirt-holding capacity and improve in-depth filtration—useful for larger pools or heavier bather loads.
Q2: Which media can I use?
These filters accept silica sand, glass, or zeolite. The table lists model-specific media volumes to help you order correctly.
Q3: How do I size the filter to my pool?
Use the Max Flow and Max Pool Size as guides. For heated or high-use pools, choose the next size up to extend backwash intervals and lower head loss.
Q4: What maintenance is required?
Routine backwashing via the multiport valve. The hydraulically balanced laterals promote even cleaning of the media bed and help maintain performance between backwashes.
