AstralPool
Astral ClariSave Cartridge Filter Range
Astral ClariSave Cartridge Filter Range
We sell below minimum advertised price. Inquire to request our best price.

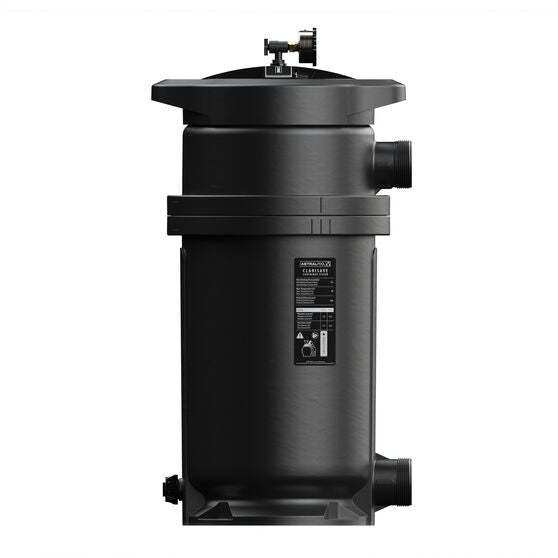

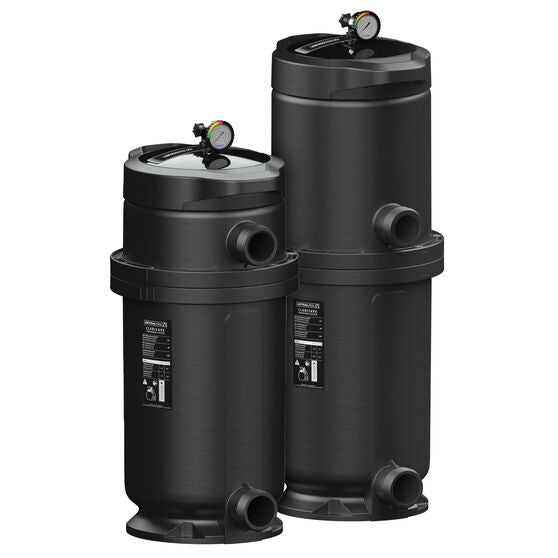

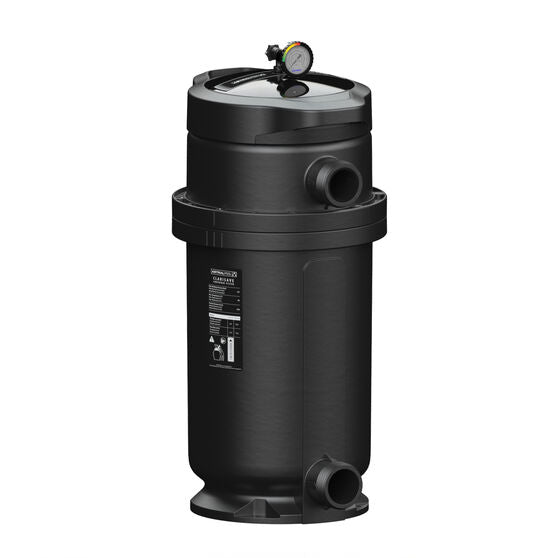

Astral ClariSave Cartridge Filter Range
Eco-smart clarity for every Australian pool
Astral’s ClariSave series brings commercial-grade cartridge
filtration to backyard and boutique commercial pools alike. Four
precision-engineered models (10 – 25 m³/h) deliver crystal-clear
water with up to 20 µm fineness while slashing back-washing water loss by
over 80 % compared with traditional sand filters.
The result? Softer, sparkling water, lower energy bills and a lighter
environmental footprint — all in a compact footprint that slips
neatly into tight Australian pump rooms or filter boxes.
Why buy from us? We ship nationwide from Brisbane with same-day dispatch on all in-stock ClariSave models, supply genuine Astral replacement cartridges, and back every unit with expert support plus a 10-year tank / 12-month valve warranty.
Key Features
- Ultra-fine 20 µm element traps dust, pollen & algae spores invisible to the naked eye
- Flow-optimised core extends cleaning intervals by up to 20 % for lower maintenance

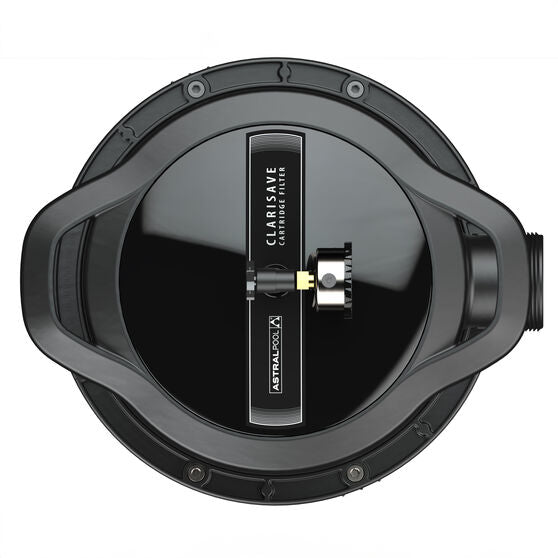

- Lightweight lid with moulded handles – one-person servicing in under 5 minutes
- Adjustable 50 – 63 mm barrel-union ports – effortless retrofit to existing pipework
- Works perfectly with high-efficiency & variable-speed pumps (low pressure drop)
- Climate Care Certified & fully compliant with AS 1926 & Australian safety standards
Model Comparison Table
| Model | Flow Rate (m³/h) |
Pool Turnover 6 hr (L) |
Pool Turnover 8 hr (L) |
Filter Area (m²) |
Port Size (mm) |
Height* (mm) |
Body Ø A (mm) |
Max Pressure (bar) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| ClariSave 10 | 10.1 | 60 600 | 81 000 | 7.8 | 50–63 | 784 | 490 | 3.5 | 17 |
| ClariSave 15 | 15.2 | 91 200 | 122 000 | 10 | 50–63 | 784 | 490 | 3.5 | 18 |
| ClariSave 20 | 20.2 | 121 200 | 162 000 | 12 | 50–63 | 965 | 490 | 3.5 | 21 |
| ClariSave 25 | 25.2 | 151 200 | 202 000 | 14 | 50–63 | 965 | 490 | 3.5 | 23 |
*Height measured with pressure gauge installed.
Frequently Asked Questions
Q1: Which ClariSave size suits my pool?
Match your pool’s turnover in six hours to the “Pool Turnover 6 hr” column above.
For example, a 75 000 L pool pairs with the ClariSave 10, while pools above 150 kL
benefit from the ClariSave 25.
Q2: How often do I need to clean the cartridge?
With normal residential use, most owners hose the element every 4-6 weeks.
Thanks to the ClariSave’s even-flow mesh, cleaning intervals can extend up to
8 weeks in lightly-loaded pools.
Q3: Does the ClariSave work with salt & mineral pools?
Yes — the polypropylene element and 3.5 bar rated tank resist salt-water,
magnesium, and standard chlorine chemistry alike, making it ideal for
Australia’s diverse pool types.
