AstralPool
AstralPool XP Pool Pump Range
AstralPool XP Pool Pump Range
We sell below minimum advertised price. Inquire to request our best price.

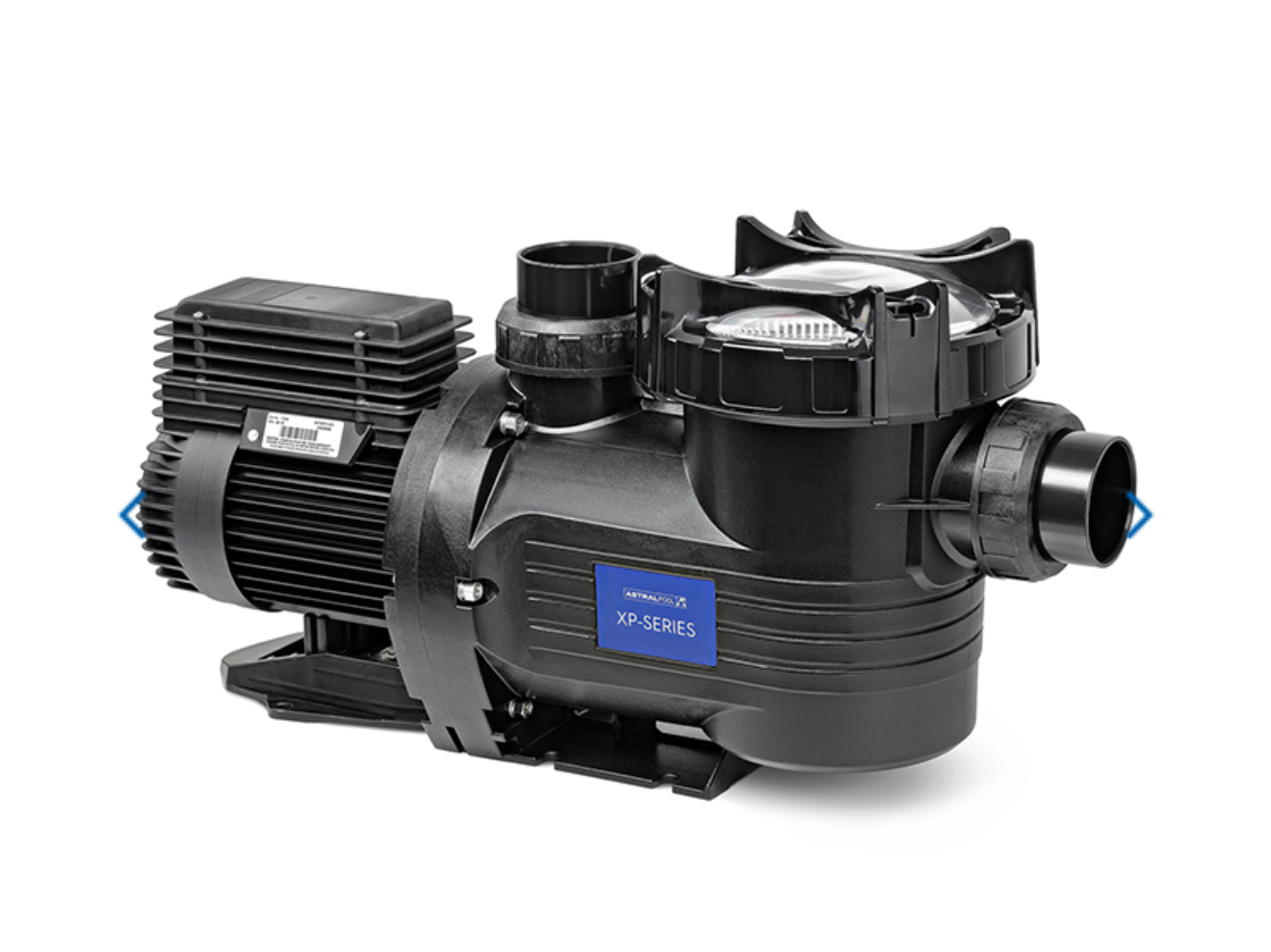

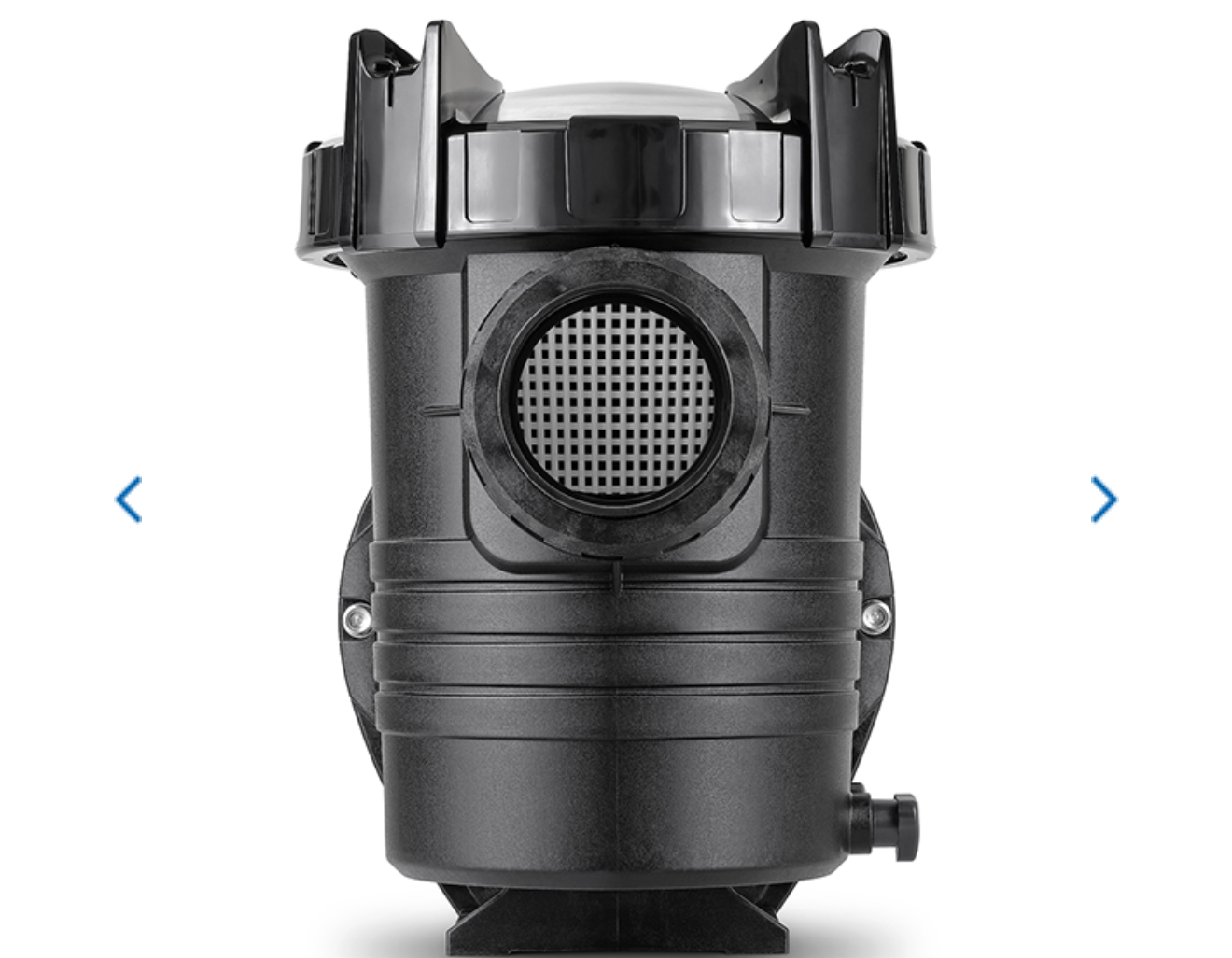

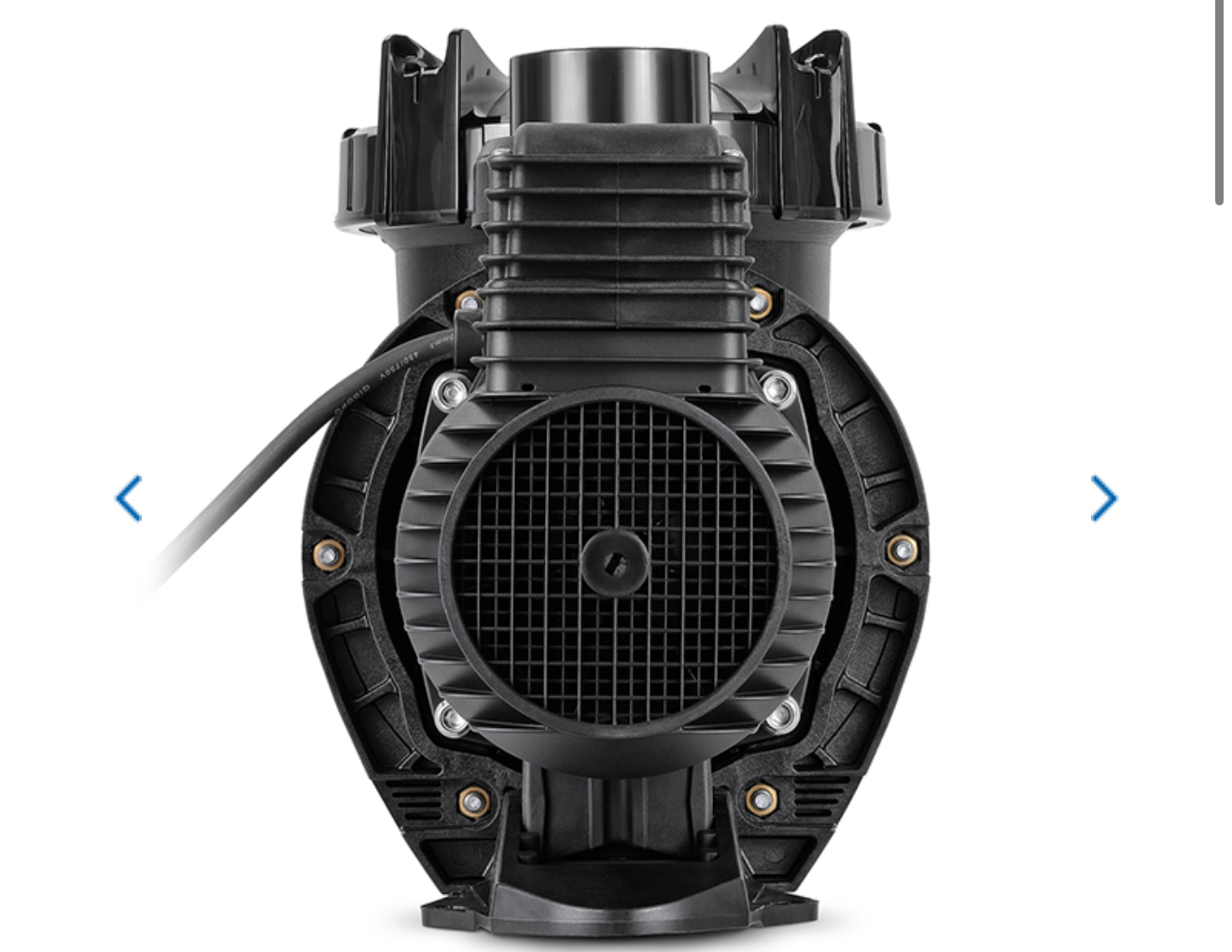

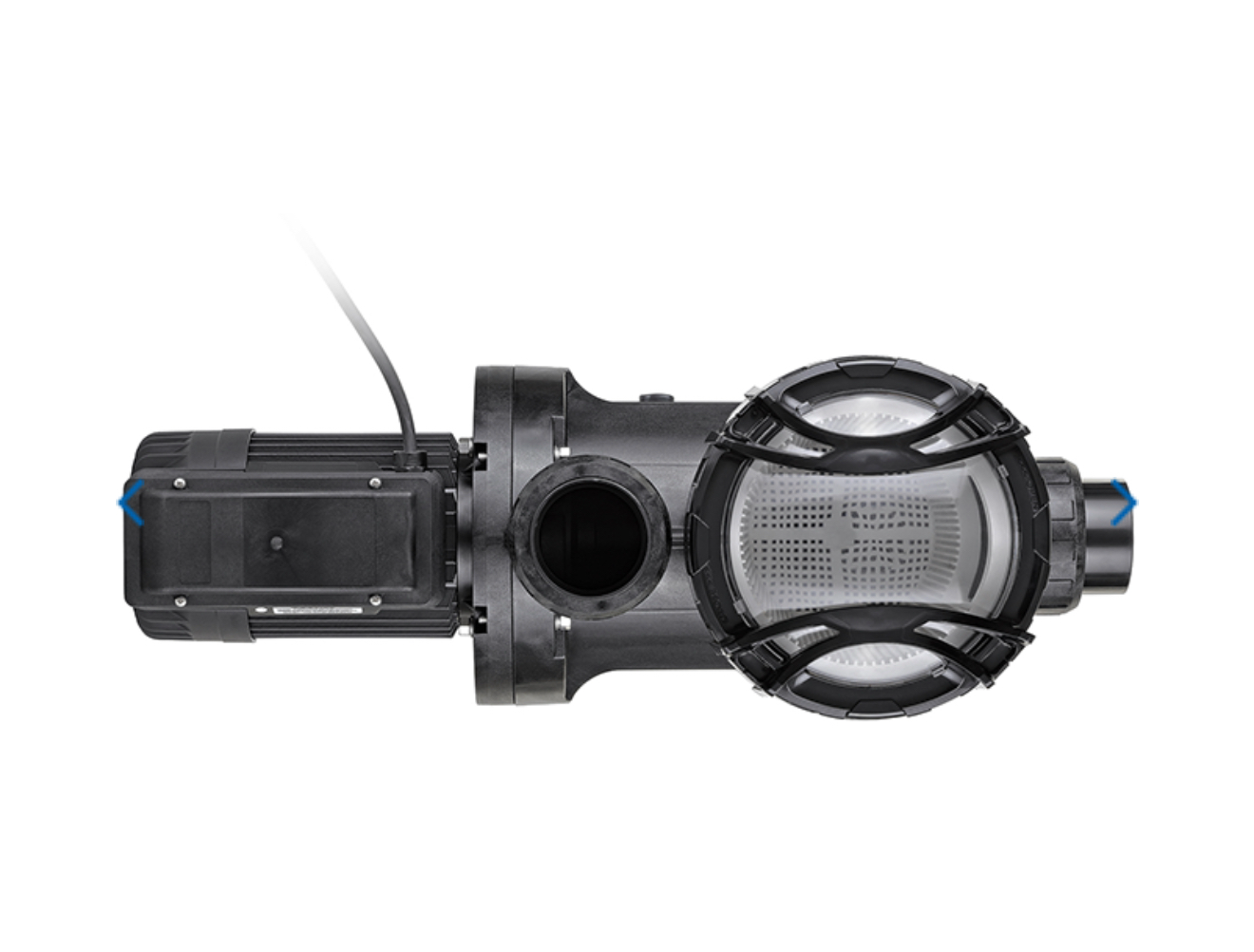

AstralPool XP Pool & Spa Pump Series
High-Performance Pool Pumps Built for Demanding Conditions
The AstralPool XP Series is purpose-built to meet the high demands of today’s in-ground pools, spas, and large residential filtration systems. Featuring durable engineering and superior hydraulic performance, the XP range delivers uncompromising reliability, exceptional flow rates, and energy-efficient operation for high-demand environments. Whether you’re powering an in-floor cleaning system, swim jets, or a larger pool filter, the XP pump is engineered for consistent performance.
Available in a range of single-phase and three-phase models up to 3.0 HP, the XP series is ideal for both residential and semi-commercial installations. Backed by Australia-wide support and compatible with a wide range of pool systems, all models are designed for quiet operation, easy servicing, and long-lasting results. Fast local dispatch and expert advice available through Premium Pool Equipment.
Key Features
- Engineered for high flow and low head-loss systems
- Durable motor and pump housing for extended service life
- Quiet operation with energy-efficient performance
- Ideal for in-floor cleaning systems, spas, and swim jets
- Available in single-phase and three-phase configurations
Model Comparison Table
| Model | Phase | Voltage (V) | Horsepower (HP) | Input Power (W) | Flow Rate (LPM) | Full Load Amps | Energy Consumption (kWh/year) | Energy Star Rating |
|---|---|---|---|---|---|---|---|---|
| XP 1.5 | Single | 240 | 1.5 | 1500 | 440 | 7 | 1534 | 1.0 |
| XP 2.0 | Single | 240 | 2.0 | 1900 | 540 | 8.1 | – | 1.0 |
| XP 3.0 | Single | 240 | 3.0 | 2500 | 635 | 11 | – | 1.0 |
|
XP 2.0 3 PH |
Three | 400 | 2.0 | 2400 | 540 | 3.4 | – | 1.0 |
|
XP 3.0 3 PH |
Three | 400 | 3.0 | 3200 | 635 | 4 | – | 1,0 |
*Flow rates based on 8m head.
Frequently Asked Questions
Q1: Which model is best for high-flow applications like in-floor cleaning?
The XP 3.0 HP models (single or three-phase) offer the highest flow rate of up to 635 LPM and are ideal for in-floor cleaning systems or swim jets.
Q2: Are these pumps energy efficient?

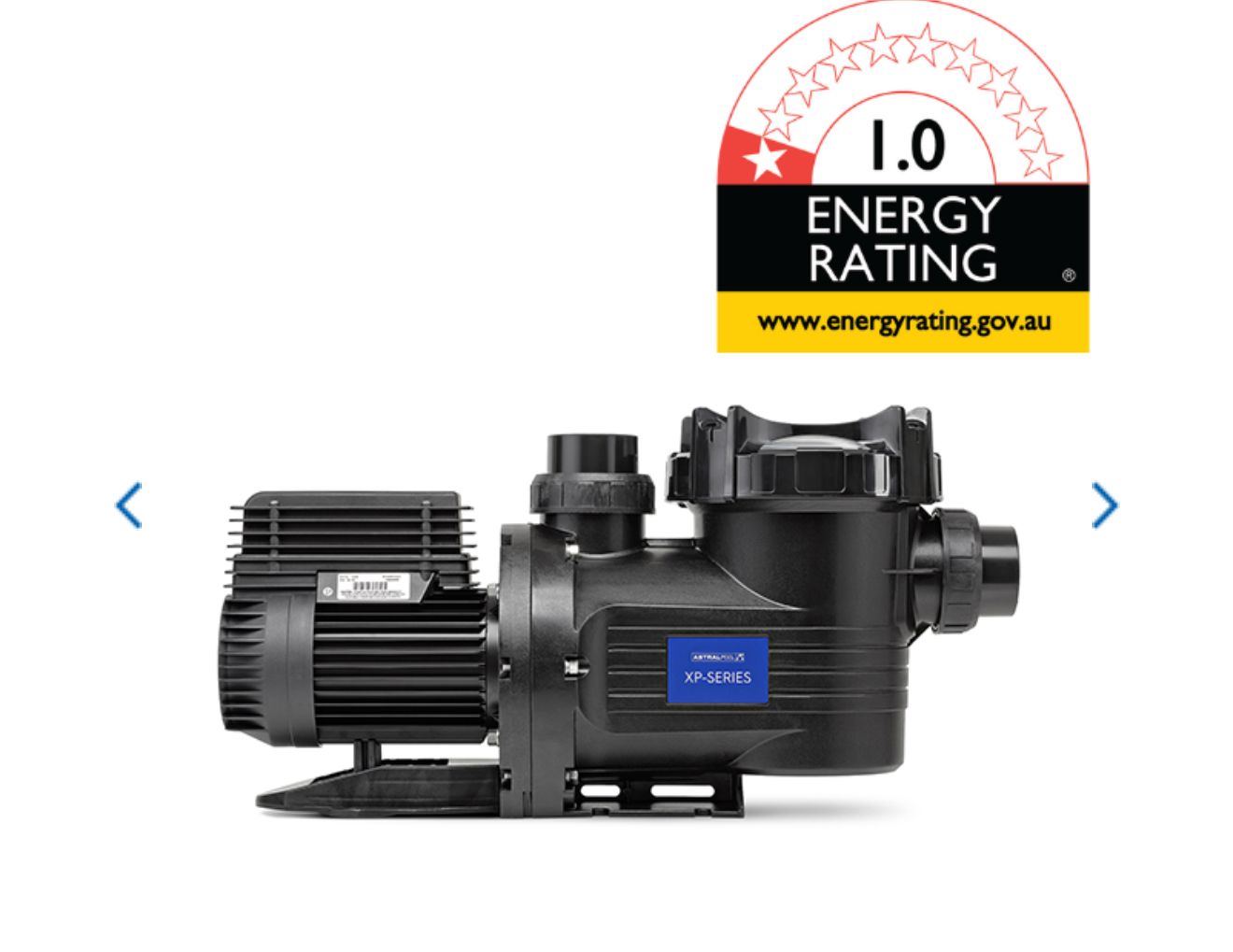

Yes — the XP 1.5 HP single-phase model is certified with a 1.0 energy star rating and low annual energy consumption. Other models are built for performance and durability but are not energy star rated.
Q3: Can I use this with a salt chlorinator?
Absolutely. The XP pump series is fully compatible with saltwater systems and high-efficiency filtration setups.
