Spa Electrics LV100-12 Single Halogen Transformer
Spa Electrics LV100-12 Single Halogen Transformer
We sell below minimum advertised price. Inquire to request our best price.

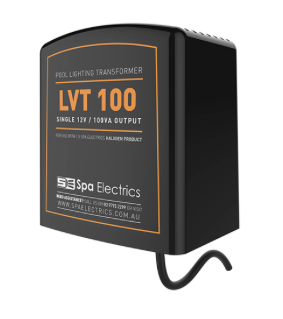

Spa Electrics LV100‑12 Single Halogen Transformer
High‑capacity transformer for halogen pool lighting
The LV100‑12 transformer from Spa Electrics is built to power a single halogen pool light at 12 V AC and 100 W. It features a toroidal coil design, resettable thermal overload, and a replaceable 15 A fuse — offering robust protection for high-power lighting applications. With an IP45 weatherproof rating and 12‑month manufacturer’s warranty, the LV100‑12 is suited for outdoor installations in Aussie pool conditions.
Plug‑and‑play design, captive terminals, and a rugged housing make it ideal for retrofit or new installations where halogen lighting is still preferred or required.
Key Features
- 12 V AC, 100 W output for a single halogen pool light
- Long‑life toroidal coil transformer design
- Resettable thermal overload protection built in
- Replaceable 15 A (3AG) fuse for safeguarding

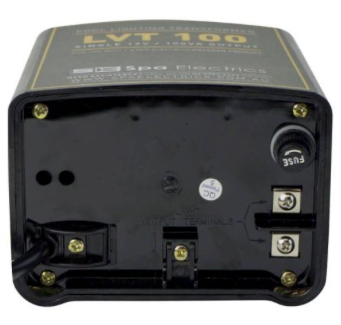

- Captive terminal screw connections for secure wiring
- Weatherproof housing rated at IP45
- Plug‑and‑play installation with no complex wiring required
- 12‑month manufacturer’s warranty included
Model Specification Table
| Model | Voltage | Wattage | Suitable Light Type | Weather Rating | Warranty |
|---|---|---|---|---|---|
| LV100‑12 | 12 V AC | 100 W | Single Spa Electrics Halogen Light | IP45 | 12 months |
*Specifications based on Spa Electrics official “Transformers” sources and verified distributor listings.
Frequently Asked Questions
Q1: What type of light is this transformer for?
It’s designed for one Spa Electrics halogen pool light (12 V, 100 W).
Q2: How does overload protection work?
It has resettable thermal overload protection built in to automatically safeguard the circuit.
Q3: What fusing is used?
It includes a replaceable 15 A (3AG) fuse.
Q4: Is it suitable for outdoor installation?
Yes — the housing is rated IP45 for weather resistance.
Warranty
| Component | Domestic Installations | Commercial Installations |
|---|---|---|
| LV100‑12 Transformer (all components) | 12 months | 12 months |
Warranty is valid for products installed in accordance with Spa Electrics guidelines. Refer to official documentation for full terms and conditions.
