Spa Electrics LV100Q-12 Quad LED Transformer
Spa Electrics LV100Q-12 Quad LED Transformer
We sell below minimum advertised price. Inquire to request our best price.

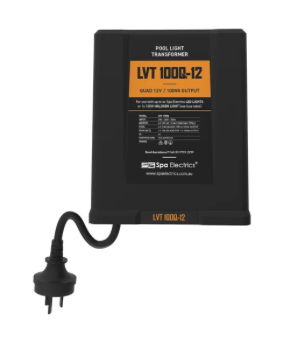

Spa Electrics LV100Q‑12 Quad LED Transformer
Power up to four lights reliably
The LV100Q‑12 is Spa Electrics’ quad‑output transformer, designed to deliver 12 V AC at 100 W total, with four independent outputs — perfect for multiple LED pool lights. It features robust toroidal coil construction, captive screw terminals, a mounting rail, and weather‑protected GPO output. With IP44 rating and a 12‑month manufacturer’s warranty, it’s crafted to support larger lighting setups with reliability.
Each output is fused and isolated. Ideal for pool systems wanting to run four LED lights, this model supports scalable installations with synchronized control across multiple outputs.
Key Features
- 12 V AC, 100 W transformer with four independent outputs
- Suitable for powering up to 4 Spa Electrics LED lights

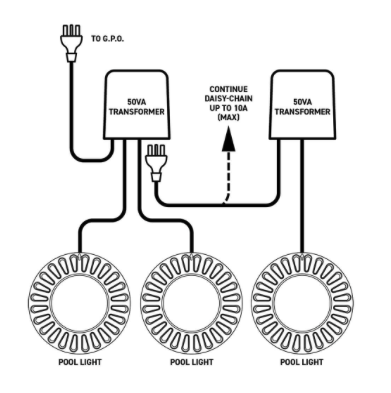

- Weather‑protected auxiliary GPO for daisy chain setups
- Toroidal coil design for low noise and reliable service life
- Captive screw terminals for secure wiring
- Each output includes a replaceable fuse
- Mounting rail allows side-by-side installation
- IP44 weatherproof rating
- 12‑month manufacturer’s warranty
Model Specification Table
| Model | Output Voltage | Total Wattage | Number of Outputs | Weather Rating | Warranty |
|---|---|---|---|---|---|
| LV100Q‑12 | 12 V AC | 100 W | 4 Outputs | IP44 | 12 Months |
*Specifications sourced from the official Spa Electrics “Transformers” documentation.
Frequently Asked Questions
Q1: How many LED lights can it power?
The LV100Q‑12 supports up to four Spa Electrics LED lights simultaneously.
Q2: Does each output have its own fuse?
Yes — it includes independent fuses per output for protection and isolation.
Q3: What does the weather‑protected auxiliary GPO do?
It permits additional devices or daisy‑chain connections in a protected outdoor setting.
Q4: What is the IP rating?
The transformer enclosure is rated IP44 per Spa Electrics’ published specs.
Warranty
| Component | Domestic Installations | Commercial Installations |
|---|---|---|
| LV100Q‑12 Transformer (all parts) | 12 Months | 12 Months |
Warranty is subject to installation compliance and proper use. Refer to Spa Electrics documentation for full terms.
