Spa Electrics LV150-24 Single Halogen Transformer
Spa Electrics LV150-24 Single Halogen Transformer
We sell below minimum advertised price. Inquire to request our best price.

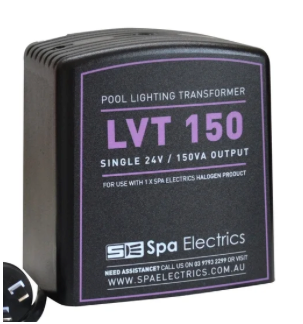

Spa Electrics LV150-24 Single Halogen Transformer
Heavy-duty transformer for high-output 24V halogen lighting
The LV150-24 Single Halogen Transformer from Spa Electrics delivers powerful 150-watt output at 22–24 V AC, ideal for driving a single high-wattage halogen pool light. Engineered with a durable toroidal coil for long life, it is suited to a variety of larger residential or commercial lighting applications.
Equipped with blade fuse protection, captive terminals for easy connection, and a surface-mountable casing, the LV150-24 offers robust, weather-resistant performance with IP44 rating for covered outdoor installation. Perfect for new pool lighting installations or halogen light replacements.
Key Features
- Delivers up to 150 W power output at 22–24 V AC
- Supports 1 × high-wattage halogen pool light
- Toroidal transformer design for superior reliability
- IP44-rated for outdoor covered installation
- Captive terminals simplify cable connection
- Integrated replaceable blade fuse (6.3A)
- Heavy-duty steel enclosure with mounting plate
- Built for compatibility with Spa Electrics halogen lights
Technical Specifications
| Model | Output Voltage | Max Wattage | Light Support | Fuse Rating | IP Rating |
|---|---|---|---|---|---|
| LV150-24 | 22–24 V AC | 150 W | 1 × Halogen Light | 6.3 A Blade Fuse | IP44 |
*Specifications sourced from official Spa Electrics resources and verified distributors (2025).
Frequently Asked Questions
Q1: Is this transformer compatible with LED lights?
No, the LV150-24 is designed specifically for halogen lighting at 22–24V. For LED lighting, use a compatible 12V model.
Q2: Can I install this transformer outdoors?
Yes, it is IP44 rated, which makes it suitable for outdoor installation under cover or in sheltered enclosures.
Q3: What happens if the fuse blows?
The LV150-24 includes a replaceable 6.3A blade fuse, which can be easily swapped during servicing.
Warranty
| Component | Domestic Installations | Commercial Installations |
|---|---|---|
| LV150-24 Transformer | 12 Months | 12 Months |
Warranty applies to products installed in accordance with Spa Electrics guidelines. See manufacturer documentation for full terms.
