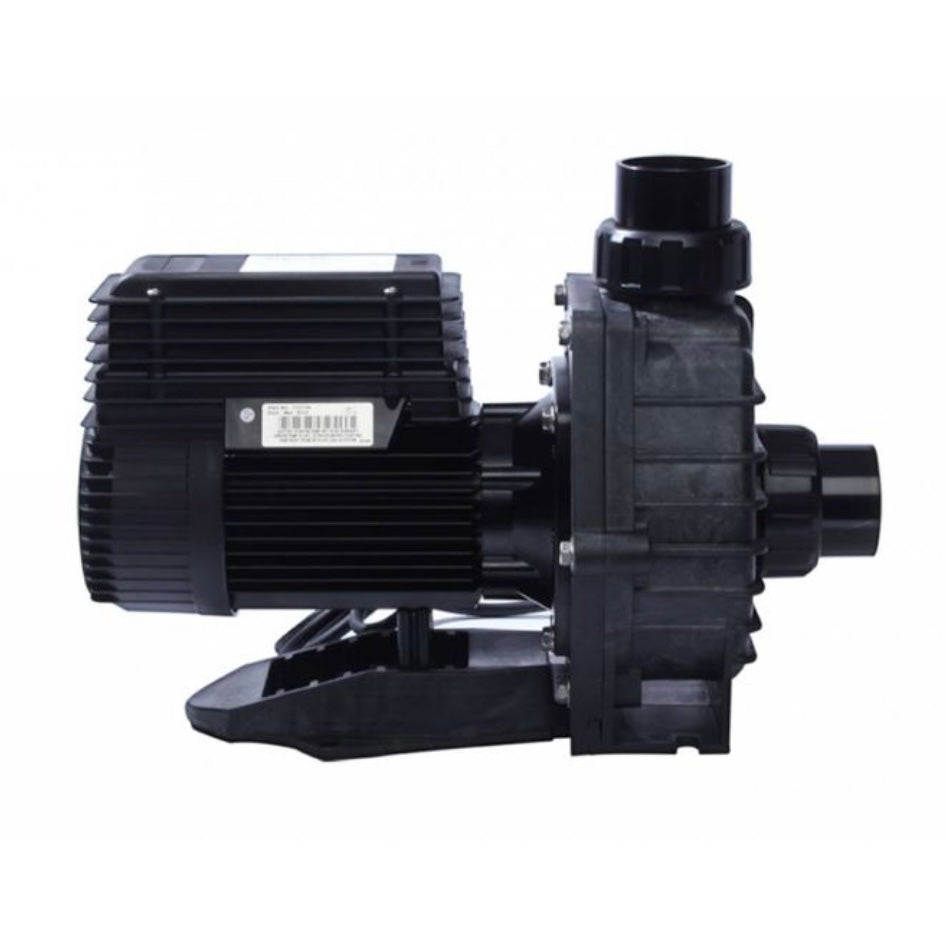

AstralPool FX Series Pool Pump Range
High-Flow Booster Pumps for Flooded Suction Applications
The AstralPool FX Series is purpose-built for flooded suction pool installations where high flow and quiet performance are key. Designed for installations below the waterline (such as solar, swim jets, spa booster systems, and above-ground pools), these pumps deliver excellent hydraulic performance with minimal noise output and hassle-free maintenance.
With five available models ranging from 0.5 HP to 2.0 HP, the FX range offers flexibility across various residential and light commercial setups. Backed by official AstralPool warranty and available Australia-wide from Premium Pool Equipment, these pumps are MEPS-compliant and built to last.
Key Features
- Ideal for flooded suction installations (below waterline)
- Quiet single-speed motor with low vibration
- High flow rates – up to 520 LPM across models
- 1-star MEPS energy rating on most models
- Australian-designed and supported nationwide
Model Comparison Table
| Model | Horsepower (HP) | Voltage | Full Load Amps | Phase | Input (W) | Full Load (kW) |
|---|---|---|---|---|---|---|
| FX 140 | 0.50 | 240 | 2.9 | Single | 650 | 2.75 |
| FX 190 | 0.75 | 240 | 3.2 | Single | 822 | 3.47 |
| FX 250 | 1.00 | 240 | 4.3 | Single | 1015 | 4.38 |
| FX 340 | 1.50 | 240 | 6.6 | Single | 1617 | 7.27 |
| FX 520 | 2.00 | 240 | 8.3 | Single | 1900 | 7.93 |
*Data sourced directly from AstralPool’s official technical product chart. All models operate on single-phase 240 V power.
Frequently Asked Questions
Q1: Can the FX Series be used as a standard filtration pump?
The FX Series is designed for flooded suction setups and lacks a strainer basket. It’s best used for booster systems, not as a direct filter pump replacement.
Q2: What does “flooded suction” mean?
It means the pump sits below the water level, allowing water to flow into the pump under natural gravity without priming.
Q3: Can this pump be installed outdoors?
Yes — all FX models are weather-resistant and suitable for outdoor installation in protected or shaded areas.
