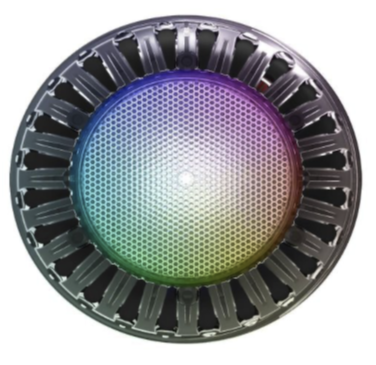

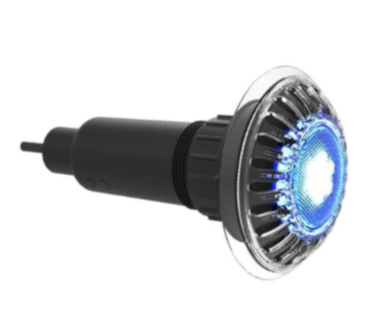

Spa Electrics Atom EMV LED Pool Light Series (Vinyl)
Sleek lighting tailored for vinyl pools
The Atom EMV Series from Spa Electrics is engineered specifically for vinyl pools, offering a slim niche‑mount LED light that delivers striking illumination with minimal intrusion. It’s built to withstand water contact, UV exposure, and pool chemistry — perfectly balancing aesthetic and functional performance.

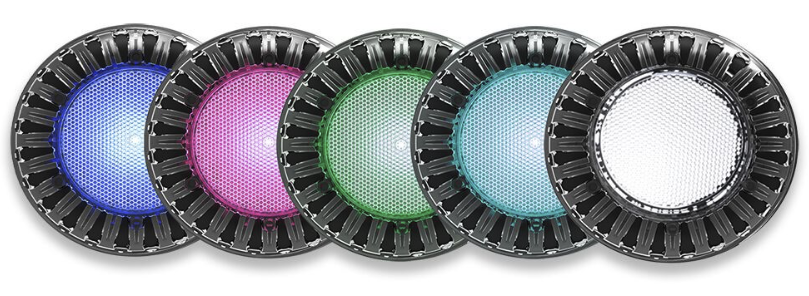

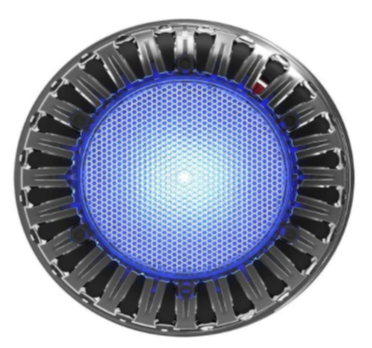

Available in Multi PLUS (RGB+White), Multi‑Colour, Blue (465 nm), and White (4000 K) variants, every EMV light is supplied with a vinyl mounting kit and 20 m cable. With support for wall switches, iRIS, and leading pool automation systems, the EMV integrates seamlessly into modern pool setups.
Key Features
- Purpose-built for vinyl pool installations with niche mounting
- Multiple light options: RGB+White, Multi‑Colour, Blue or White outputs
- Control compatibility with wall switch, iRIS, and major automation systems

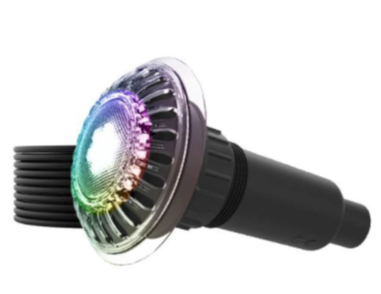

- Includes vinyl mounting kit and 20 m cable for straightforward install
- Operates at safe 12 V AC, consuming approximately 12 W
- IPX8 waterproof rating and UV-stable housing for longevity
- Australian-engineered and manufactured for pool durability
Model Comparison Table
| Model | Light Output | Control Options | Cable Length | Mount Type | Voltage / Wattage |
|---|---|---|---|---|---|
| EMV Multi PLUS | RGB + White | Wall, iRIS, Automation | 20 m | Vinyl Niche | 12V AC / 12W |
| EMV Multi Colour | Multi‑Colour | Wall, iRIS | 20 m | Vinyl Niche | 12V AC / 12W |
| EMV Blue | Blue (465 nm) | Wall Switch Only | 20 m | Vinyl Niche | 12V AC / 12W |
| EMV White | White (4000K) | Wall Switch Only | 20 m | Vinyl Niche | 12V AC / 12W |
*Specifications derived from Spa Electrics official data and distributor listings.
Light Source: Ceramic Light Engine (LED); IPX8 rated; ambient 5 °C to +40 °C.
Frequently Asked Questions
Q1: Is the Atom EMV light suitable for concrete or fibreglass pools?
No — this specific EMV model is designed exclusively for vinyl pools and includes a vinyl pool mounting kit. For other pool types, Spa Electrics offers alternative Atom models with compatible fittings.
Q2: Can I switch between colours with the Multi PLUS model?
Yes. The Multi PLUS variant includes RGB + white output with colour transitions controlled via wall switch, Spa Electrics iRIS controller, or supported pool automation systems.
Q3: Does it require a separate transformer?
It is recommended that the ATOM lighting range is operated using a Spa Electrics LV25‑12 or LV50‑12 transformer. Do not use electronic or switch-mode power supplies with ATOM lights.
Q4: How long is the cable included with the light?
Each Atom EMV light includes a 20-metre cable as standard, providing enough length for most residential pool installs.
Q5: What is the difference between the Multi Colour and Multi PLUS models?
The Multi PLUS supports both RGB and white LED channels with automation system integration. The standard Multi Colour model offers colour cycling but with limited control options (typically wall switch or iRIS controller only).
Warranty Information
Spa Electrics offers a 12-month manufacturer’s warranty on all Atom EMV Series pool lights, covering defects in materials and workmanship under normal use. Warranty claims must be submitted with proof of purchase and installation. For full details or to initiate a warranty request, please contact our support team or visit the Spa Electrics website.
