BWT Pearl HPB Heat Pump Series
BWT Pearl HPB Heat Pump Series
We sell below minimum advertised price. Inquire to request our best price.

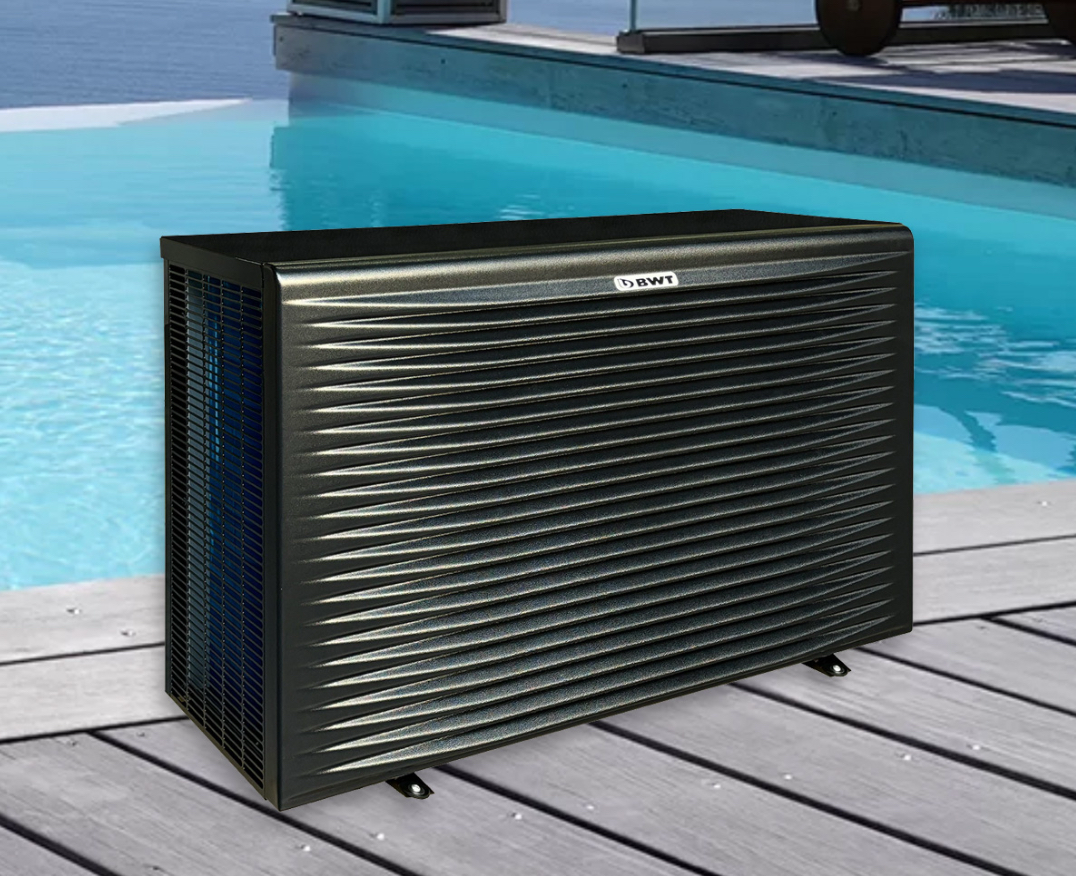

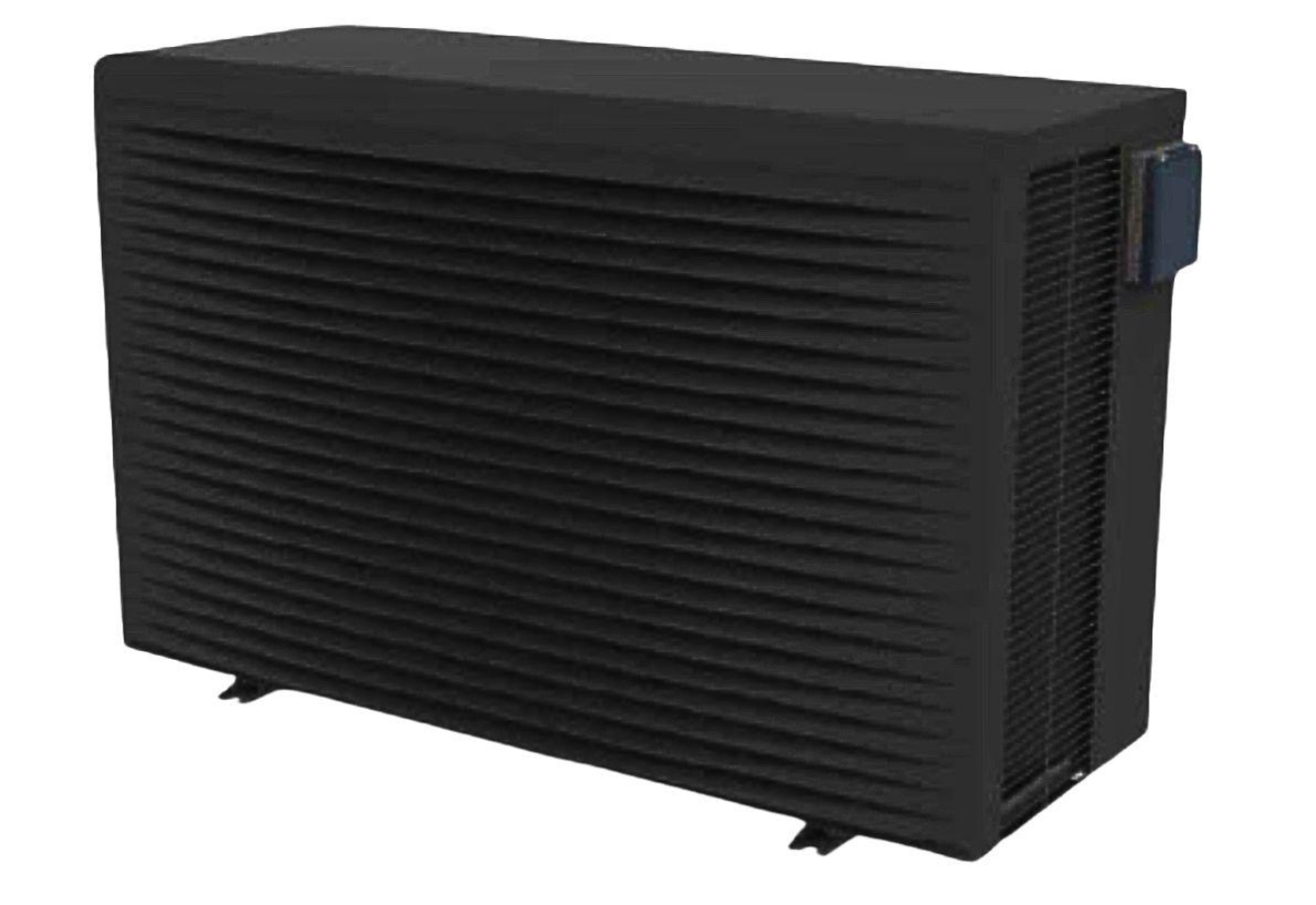

BWT Pearl HPB Pool Heat Pump Series
Compact, efficient heating with smart inverter control
The BWT Pearl HPB Heat Pump Series offers energy-efficient pool heating for residential pools up to 105m², with models from 9.5kW to 20.3kW. These inverter-driven units deliver quiet operation, powerful performance, and feature Eco-Silent, Smart, and Boost modes to suit any climate or usage pattern. Designed for durability and efficiency, the HPB range uses R32 refrigerant and is built with a corrosion-resistant ABS and metal housing.
All models are backed by manufacturer warranty and local support. HPB9 comes pre-fitted with a 15A plug for simple connection, while other models require hardwiring by a licensed electrician. Professional installation is strongly recommended to ensure optimal performance and warranty compliance.
Key Features
- Inverter technology with ECO-Silent, SMART, and BOOST operating modes
- Quiet operation from 23–39 dB(A) at 10 metres
- Models suit pools from 35 m² to 105 m²
- Corrosion-resistant housing with ABS and metal blend
- Uses energy-efficient R32 refrigerant
Warranty Information
All BWT Pearl HPB Heat Pumps are backed by a comprehensive 3-year warranty on parts and labour, with an extended 5-year warranty on the compressor and a massive 25-year warranty on heat exchanger! This warranty is supported by BWT's official Australian distributor network and service agents, ensuring prompt and professional support if needed.
Warranty terms are subject to proper installation and maintenance conditions.
BWT Pearl HPB Heat Pump – Model Comparison Table
| Model | Recommended Pool Size (L) |
Heating Capacity (kW) |
COP (Max Mode) |
Noise Level (dBA) |
Max Power Input (kW) |
Electrical Connection |
Dimensions (mm) |
Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HPB9 | 35,000 – 45,000 | 9.5 | 6.5 | 23–39 | 1.6 | 10A Plug | 981 × 409 × 607 | 55 |
| HPB12 | 45,000 – 60,000 | 12.9 | 6.4 | 25–38 | 2.2 | 15A Plug | 981 × 409 × 607 | 57 |
| HPB14 | 60,000 – 85,000 | 14.8 | 6.5 | 26–37 | 2.8 | Hardwired | 1051 × 433 × 770 | 72 |
| HPB20 | 85,000 – 105,000 | 20.3 | 6.4 | 29–39 | 3.4 | Hardwired | 1051 × 433 × 770 | 73 |
*Data sourced from the official BWT Pools website and brochure. Specifications based on 26°C air, 26°C water, and 80% humidity. Performance may vary with installation, climate, and pool conditions.
Frequently Asked Questions
Q1. Can I install the BWT Pearl HPB Heat Pump myself?
No. All heat pump installations must be performed by a certified pool technician, and models that require hardwiring must be installed by a licensed electrician. Self-installation may void the product warranty.
Q2. What size model is best for my pool?
This depends on your pool’s volume, location, and heating expectations. Refer to the model comparison table above for recommended pool sizes. If you're unsure, reach out and our team will assist you with sizing.
Q3. Is this heat pump suitable for year-round heating?
Yes. BWT Pearl HPB Heat Pumps are designed to operate in a wide temperature range (down to -3°C) and are ideal for both seasonal and year-round pool heating.
Q4. How noisy are the BWT Pearl HPB Heat Pumps?
These models are engineered for quiet operation, with sound levels ranging from 23–39 dBA depending on the model. This makes them one of the quieter options available in their class.
Q5. Do these heat pumps work with saltwater pools?
Yes. BWT heat pumps are compatible with both freshwater and saltwater pool systems. Their internal components are built to resist corrosion in saltwater environments.
Q6. Does the heat pump come with a plug or is it hardwired?
The HPB9 model uses a 10A or 15A plug depending on region and installer configuration. All larger models (HPB12, HPB14, HPB20) require hardwiring by a qualified electrician as part of the installation process.
