BWT Pearl HPF Heat Pump Series
Stylish & Silent Heating with Smart WiFi Control
The BWT Pearl HPF Heat Pump Series offers high-performance, energy-efficient heating with whisper-quiet operation. Designed with a compact front-discharge layout and built-in WiFi control, the HPF range is ideal for modern Australian pools where efficiency and aesthetics matter. With models from 9.5kW to 25.4kW, there's a solution to suit everything from plunge pools to large family setups.
Built tough for Australian conditions and supported by trusted local suppliers, these heat pumps deliver year-round comfort with exceptional control and reliability. Fast shipping available nationwide — speak to our team for personalised sizing guidance.
Key Features
- Front-discharge fan for compact installations and directional airflow
- Integrated WiFi module with app-based remote temperature control
- Quiet operation with vibration-isolated compressor mounting
- Heating and cooling functionality for year-round pool comfort
- Modern matte finish casing with weather-resistant design
Product Warranty
Backed by industry-leading coverage—25 years on the titanium heat exchanger, 10 years on the compressor, and 5 years on parts and labour when registered via BWT’s PolyConnect system. This warranty is validated by official BWT documented sources. For full details, contact our team at Premium Pool Equipment.
Model Comparison Table
| Model | Recommended Pool Size (L) | Heating Capacity (kW) | COP (Max Mode) | Noise Level (dBA) | Max Power Input (kW) | Electrical Connection | Dimensions (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HPF10 | 45,000 – 55,000 | 10.6 | 5.4 | 23–26 | 2.0 | 10A Plug | 980 × 419 × 584 | 46 |
| HPF13 | 55,000 – 70,000 | 13.1 | 5.6 | 23–28 | 2.3 | 15A Plug | 980 × 419 × 584 | 48 |
| HPF16 | 70,000 – 85,000 | 16.1 | 5.1 | 25–30 | 3.2 | Single Phase | 1080 × 479 × 707 | 62 |
| HPF20 | 85,000 – 105,000 | 20.4 | 5.2 | 25–30 | 3.9 | Single Phase | 1080 × 479 × 707 | 63 |
| HPF24 | 105,000 – 130,000 | 24.2 | 5.4 | 26–31 | 4.5 | Single Phase | 1178 × 525 × 569 | 93 |
| HPF27 | 130,000 – 160,000 | 27.8 | 5.2 | 26–32 | 5.3 | Single Phase | 1178 × 525 × 569 | 94 |
*Performance data based on ambient air temperature of 26°C, water temperature of 26°C, and 80% relative humidity.

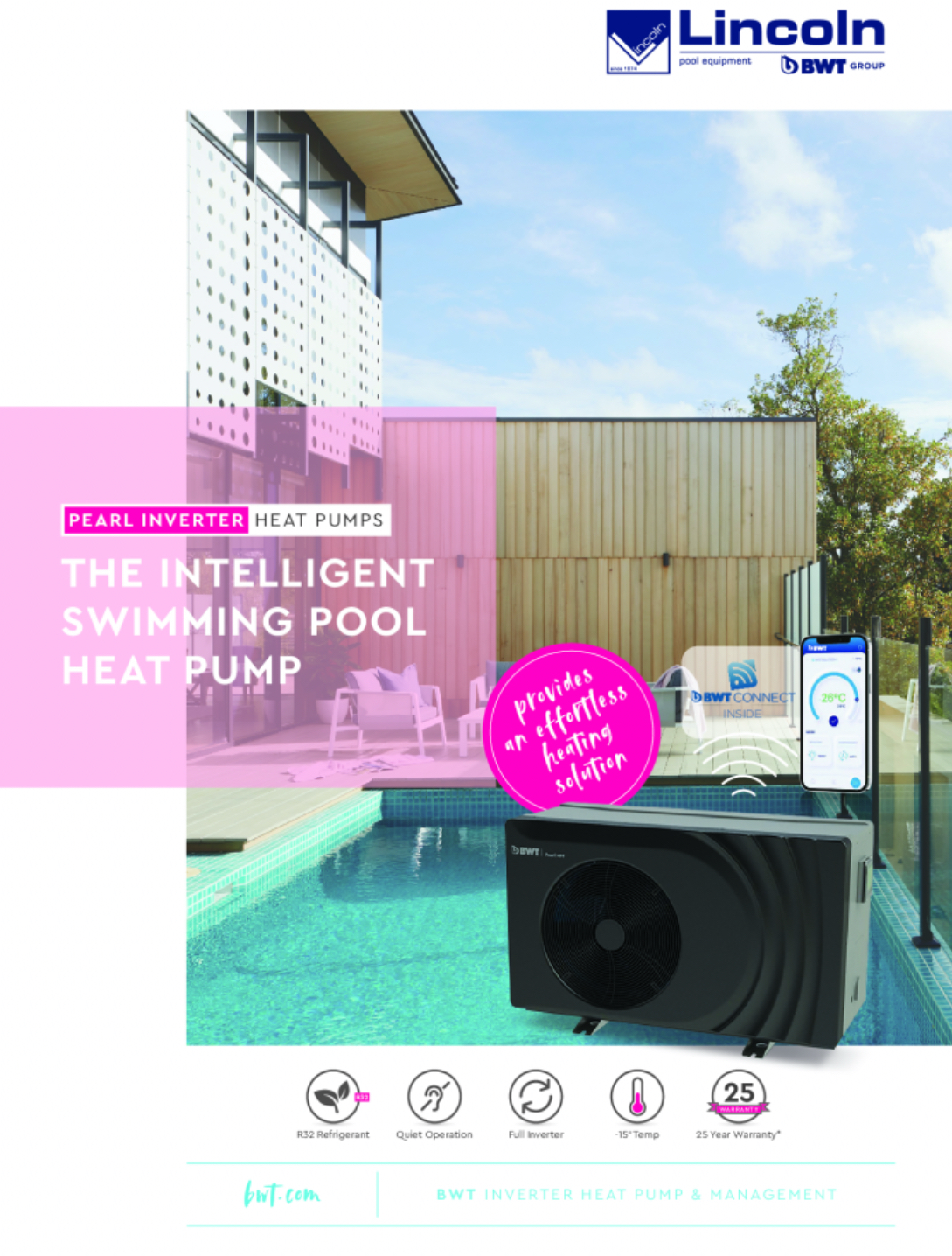

*Data sourced from the official BWT Pools website and brochure. Specs may vary based on installation, climate, and pool conditions.
Frequently Asked Questions
Q1: Who should install the BWT Pearl Heat Pump?
For safety, compliance, and warranty validity, installation must be carried out by a qualified technician. All hardwired models require installation by a licensed electrician.
Q2: Does this heat pump require hardwiring?
Most larger models in the BWT HPF series are hardwired by default. Always check the individual specification table or consult your installer to confirm. Smaller models may include a plug, but always verify electrical compatibility before installation.
Q3: What conditions are the performance specs based on?
Performance data is measured under standard testing conditions: 26°C air temperature, 26°C water temperature, and 80% relative humidity. Actual performance may vary depending on climate and installation.
Q4: What size heat pump should I choose for my pool?
Refer to our pool volume recommendation chart above to select the right model for your pool size. For best results, always oversize slightly to allow for seasonal variation and faster heat-up times.
Q5: Is the BWT Pearl heat pump energy efficient?
Yes. The inverter technology and high COP ratings make this series an excellent energy-saving choice. BWT heat pumps are designed to minimise operating costs while maximising heating output.
Q6: Can I use this heat pump with a saltwater or mineral pool?
Absolutely. The titanium heat exchanger is fully corrosion-resistant and compatible with salt, chlorine, and mineral pool systems.
