EvoHeat Force-i Pro Heat Pump Range
We sell below minimum advertised price. Inquire to request our best price.
Description

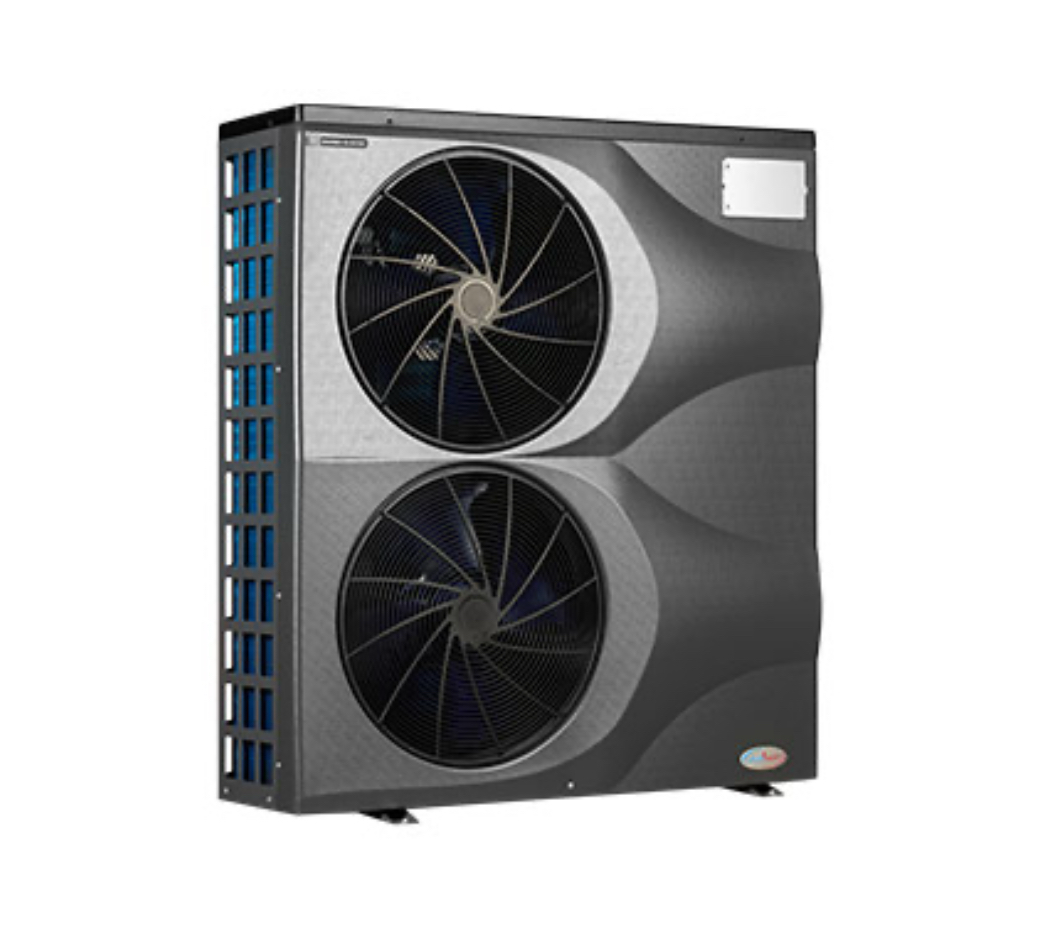

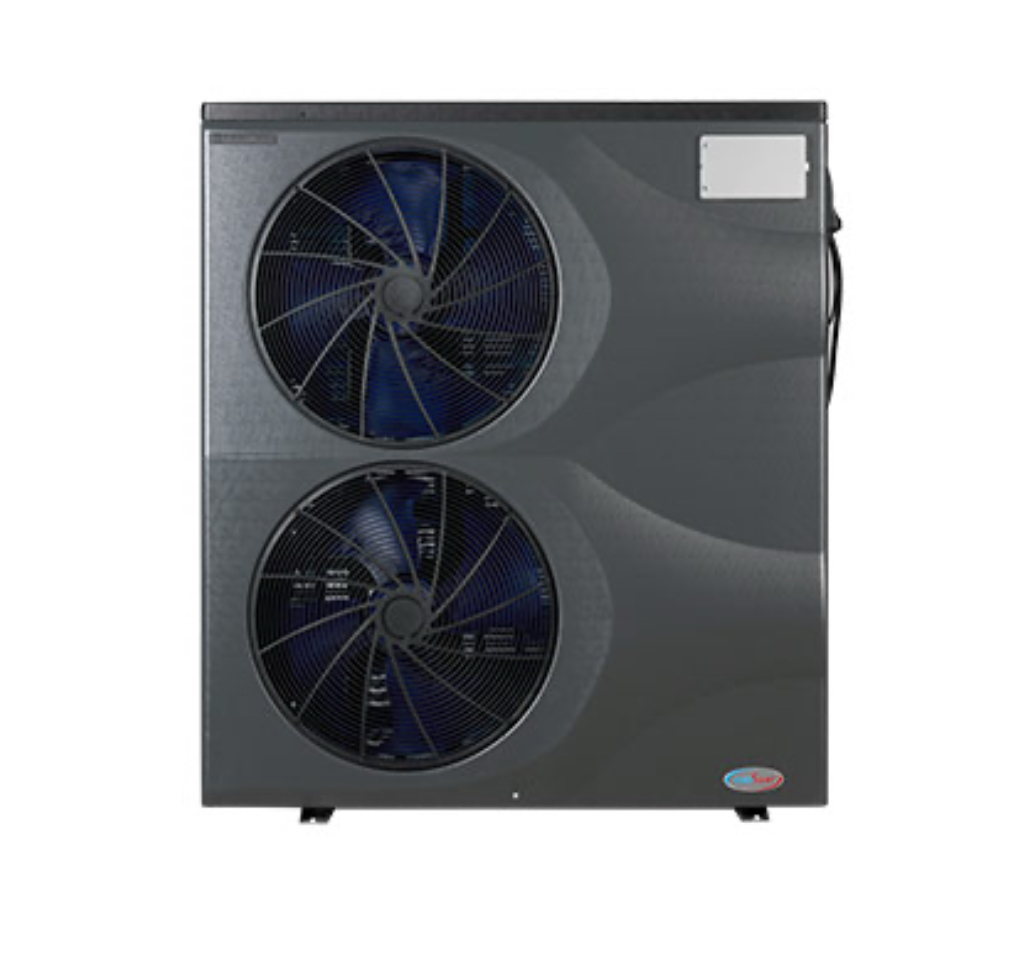

EvoHeat Force-i Pro Heat Pump Range
Superior inverter pool heating with commercial-grade output and ultra-efficient performance
The EvoHeat Force-i Pro Heat Pump Range is built for pool and spa owners who need more heating capacity without sacrificing efficiency. Designed for year-round operation, this premium inverter series automatically adjusts compressor and fan speeds to maintain target temperature with lower running costs than conventional fixed-speed systems.
With advanced features including Wi-Fi control, Solar Smart optimisation, intelligent built-in timers, and a full colour touchscreen controller, the Force-i Pro range offers strong performance for larger residential pools and demanding installations. It also supports heating, cooling, and automatic modes for flexible all-season temperature control.
Key Features
- Stepless full DC inverter compressors, fans, and control systems for efficient variable-speed performance
- High efficiency with C.O.P. figures up to 16.28 under rated conditions

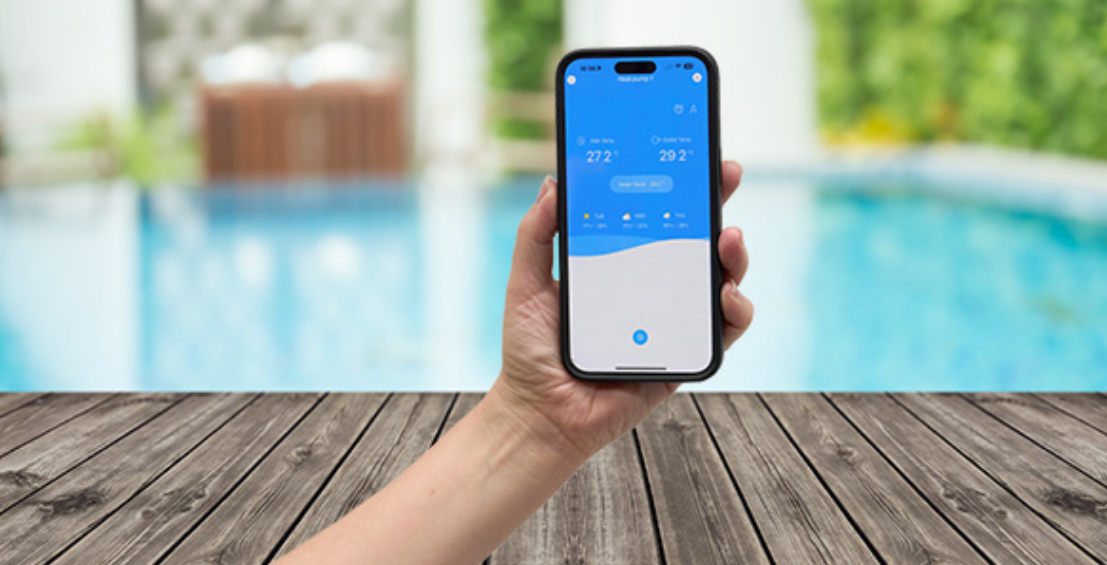

- Wi-Fi control via smartphone app for remote monitoring and temperature management

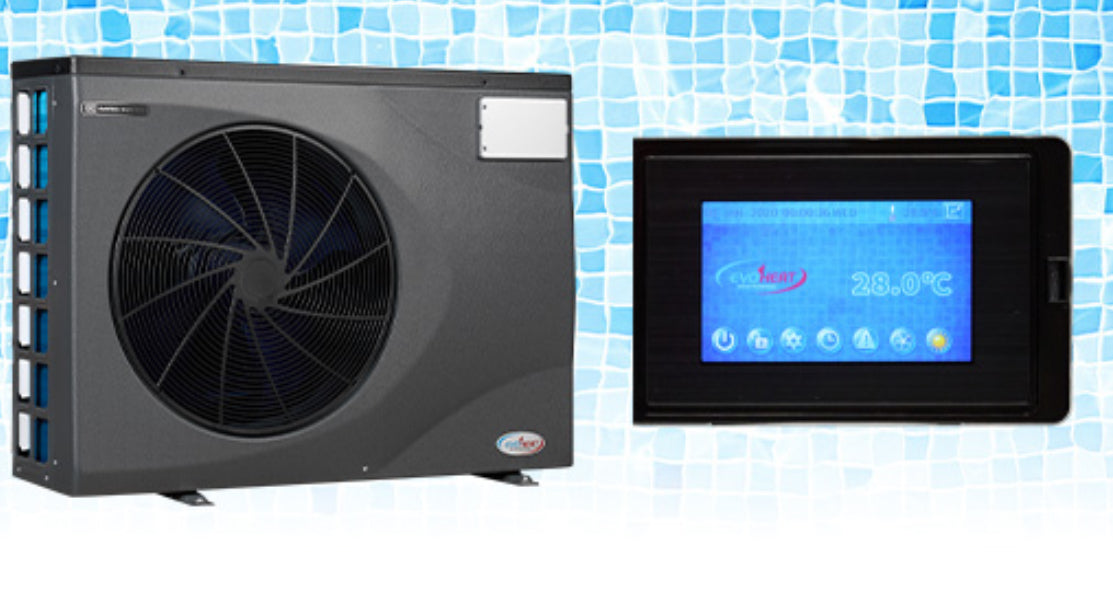

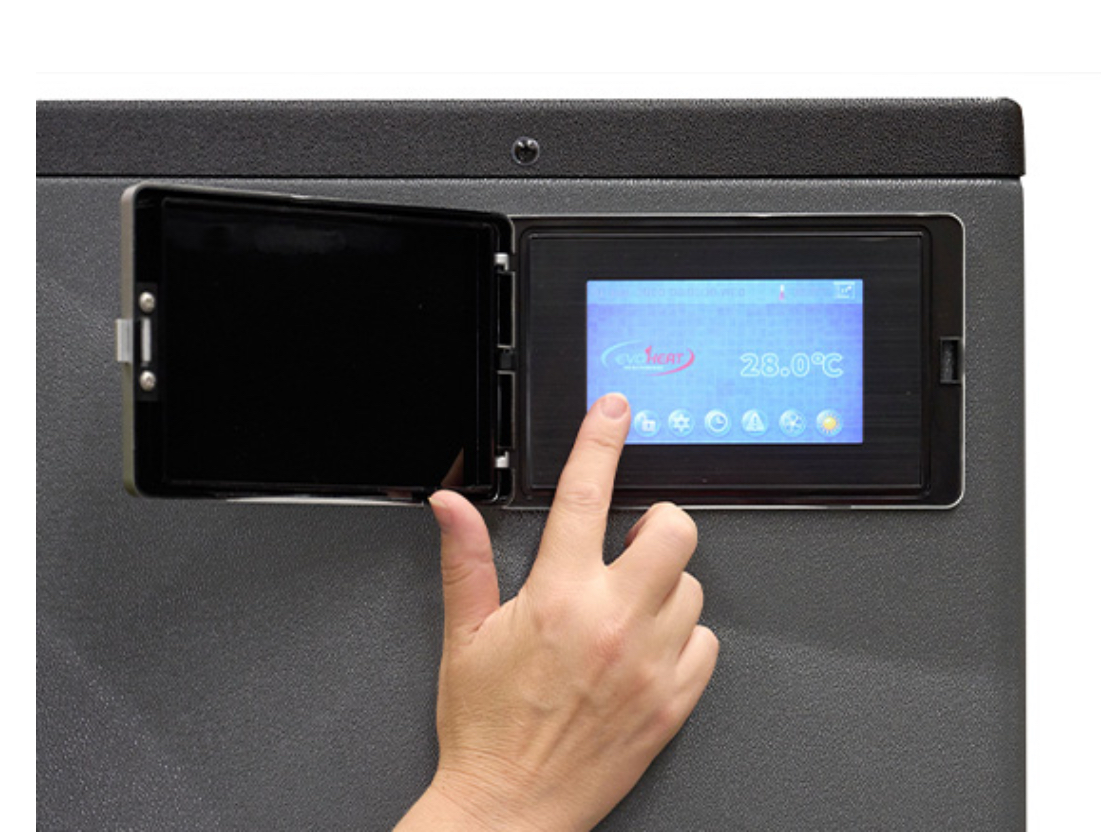

- Intuitive full colour LCD touchscreen controller
- Built-in operational timers to better manage running times and energy use
- Solar Smart mode to better utilise solar PV and reduce operating costs
- Heating, cooling, and automatic modes for flexible year-round pool management
- Ultra-quiet operation with silent mode available across the range
- R32 refrigerant for efficient and environmentally conscious performance
- Remote Assist capability for easier support and diagnostics
Warranty
All Evo Force-i Pro models include the following manufacturer-backed warranty coverage:
- 25 years on titanium heat exchanger
- 5 years on compressor
- 2 years on parts
- 1 year on labour
Warranty is subject to correct installation, operating conditions, and manufacturer terms. Conditions apply.
Model Comparison Table
| Model | Heating Capacity (kW) 27°C Air / 26°C Water In/28°C Water Out |
COP 27°C Air / 26°C Water In/28°C Water Out |
Heating Capacity (kW) 15°C Air / 26°C Water In/28°C Water Out |
Power Supply | Connection Type | Water Flow (L/min) | Noise @ 1m (dBA) | Noise @ 1m Silent (dBA) | Weight (kg) | Dimensions L/W/H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| Force-i Pro 9 | 2.15~9 | 16.13~6.76 | 1.75~7.4 | 220-240/1/50 | 10amp plug | 60 | 40~50 | 40 | 52 | 1046 / 453 / 768 |
| Force-i Pro 12 | 2.85~12 | 16.28~6.79 | 2.25~9.7 | 220-240/1/50 | 15amp plug | 80 | 42~52 | 42 | 58 | 1046 / 453 / 768 |
| Force-i Pro 17 | 3.77~17 | 15.71~6.76 | 2.92~12.4 | 220-240/1/50 | Hardwired | 90 | 44~53 | 44 | 69 | 1161 / 490 / 862 |
| Force-i Pro 19 | 4.6~19.5 | 16.16~6.19 | 3.84~15.4 | 220-240/1/50 | Hardwired | 110 | 46~56 | 45 | 90 | 1161 / 490 / 862 |
| Force-i Pro 24 | 5.7~24.2 | 16.11~6.05 | 4.68~19.9 | 220-240/1/50 | Hardwired | 150 | 46~57 | 46 | 111 | 1161 / 490 / 1274 |
| Force-i Pro 28-3 | 6.7~28.3 | 16.13~6.10 | 5.46~23.3 | 380-415/3/50 | Hardwired | 160 | 48~58 | 48 | 120 | 1161 / 490 / 1274 |
Performance values are based on EvoHeat’s published test conditions. Specifications may change without notice.
EvoHeat Force-i Pro Heat Pump Range
Superior inverter pool heating with commercial-grade output and ultra-efficient performance
The EvoHeat Force-i Pro Heat Pump Range is built for pool and spa owners who need more heating capacity without sacrificing efficiency. Designed for year-round operation, this premium inverter series automatically adjusts compressor and fan speeds to maintain target temperature with lower running costs than conventional fixed-speed systems.
With advanced features including Wi-Fi control, Solar Smart optimisation, intelligent built-in timers, and a full colour touchscreen controller, the Force-i Pro range offers strong performance for larger residential pools and demanding installations. It also supports heating, cooling, and automatic modes for flexible all-season temperature control.
- Stepless full DC inverter compressors, fans, and control systems for efficient variable-speed performance
- High efficiency with C.O.P. figures up to 16.28 under rated conditions
- Wi-Fi control via smartphone app for remote monitoring and temperature management
- Intuitive full colour LCD touchscreen controller
- Built-in operational timers to better manage running times and energy use
- Solar Smart mode to better utilise solar PV and reduce operating costs
- Heating, cooling, and automatic modes for flexible year-round pool management
- Ultra-quiet operation with silent mode available across the range
- R32 refrigerant for efficient and environmentally conscious performance
- Remote Assist capability for easier support and diagnostics
All Evo Force-i Pro models include the following manufacturer-backed warranty coverage:
- 25 years on titanium heat exchanger
- 5 years on compressor
- 2 years on parts
- 1 year on labour
Warranty is subject to correct installation, operating conditions, and manufacturer terms. Conditions apply.
| Model | Heating Capacity (kW) 27°C Air / 26°C Water In/28°C Water Out |
COP 27°C Air / 26°C Water In/28°C Water Out |
Heating Capacity (kW) 15°C Air / 26°C Water In/28°C Water Out |
Power Supply | Connection Type | Water Flow (L/min) | Noise @ 1m (dBA) | Noise @ 1m Silent (dBA) | Weight (kg) | Dimensions L/W/H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| Force-i Pro 9 | 2.15~9 | 16.13~6.76 | 1.75~7.4 | 220-240/1/50 | 10amp plug | 60 | 40~50 | 40 | 52 | 1046 / 453 / 768 |
| Force-i Pro 12 | 2.85~12 | 16.28~6.79 | 2.25~9.7 | 220-240/1/50 | 15amp plug | 80 | 42~52 | 42 | 58 | 1046 / 453 / 768 |
| Force-i Pro 17 | 3.77~17 | 15.71~6.76 | 2.92~12.4 | 220-240/1/50 | Hardwired | 90 | 44~53 | 44 | 69 | 1161 / 490 / 862 |
| Force-i Pro 19 | 4.6~19.5 | 16.16~6.19 | 3.84~15.4 | 220-240/1/50 | Hardwired | 110 | 46~56 | 45 | 90 | 1161 / 490 / 862 |
| Force-i Pro 24 | 5.7~24.2 | 16.11~6.05 | 4.68~19.9 | 220-240/1/50 | Hardwired | 150 | 46~57 | 46 | 111 | 1161 / 490 / 1274 |
| Force-i Pro 28-3 | 6.7~28.3 | 16.13~6.10 | 5.46~23.3 | 380-415/3/50 | Hardwired | 160 | 48~58 | 48 | 120 | 1161 / 490 / 1274 |
Performance values are based on EvoHeat’s published test conditions. Specifications may change without notice.
Frequently Asked Questions
Q1: Are these electric heat pumps or gas heaters?
The EvoHeat Force-i Pro range consists of electric inverter pool and spa heat pumps. They are designed to deliver efficient heating and cooling without the fuel consumption associated with gas systems.
Q2: Can the Force-i Pro cool as well as heat?
Yes. This range supports heating, cooling, and automatic modes, making it a flexible solution for year-round pool and spa temperature management.
Q3: What is Solar Smart mode?
Solar Smart mode is designed to help you better utilise available solar PV by allowing multiple daily timers and performance settings around your solar generation window, helping reduce running costs.
Q4: Do all models include Wi-Fi control?
Yes. The Force-i Pro range includes Wi-Fi connectivity so you can monitor and control your heater through the EvoHeat smartphone app.
Q5: Are these units noisy?
The range is designed for ultra-quiet operation, with lower-capacity models starting from 40 dB(A) at 1 metre under published conditions. Noise varies depending on model size and operating load.
Q6: Which models require hardwired electrical connection?
The Force-i Pro 17 and larger models are listed as hardwired. The Force-i Pro 9 uses a 10 amp plug, while the Force-i Pro 12 uses a 15 amp plug. Electrical installation should always be handled by a licensed professional.
Q7: What refrigerant does the Force-i Pro use?
All models in the range use R32 refrigerant, which is widely used in modern heat pump systems for strong efficiency and lower environmental impact compared with older refrigerants.
Q8: Is this range suitable for both pools and spas?
Yes. EvoHeat presents the Force-i Pro as a pool and spa inverter heat pump, making it suitable for both applications when correctly sized.
