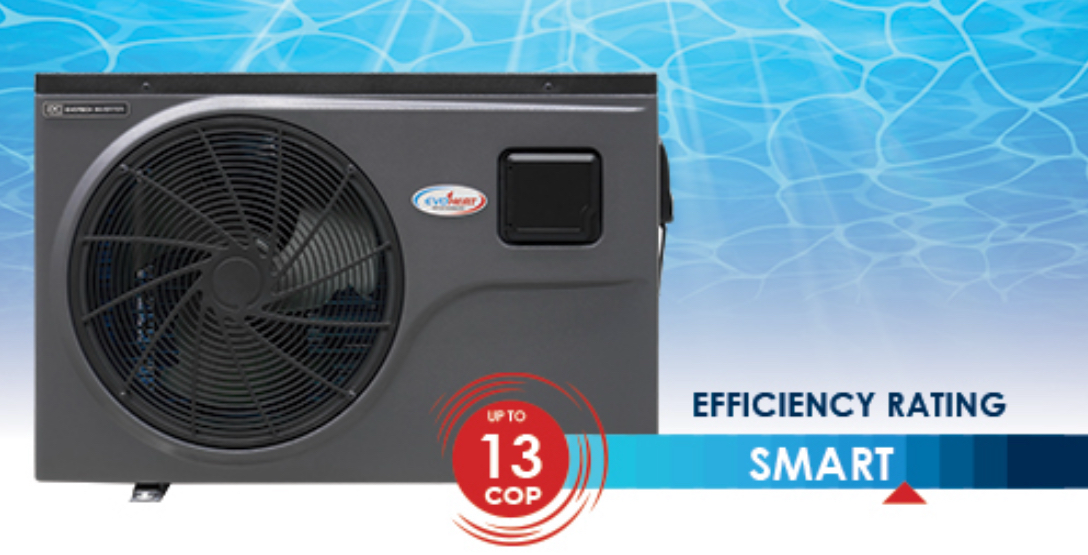

EvoHeat Fusion-i Pro Heat Pump Range
We sell below minimum advertised price. Inquire to request our best price.
Description

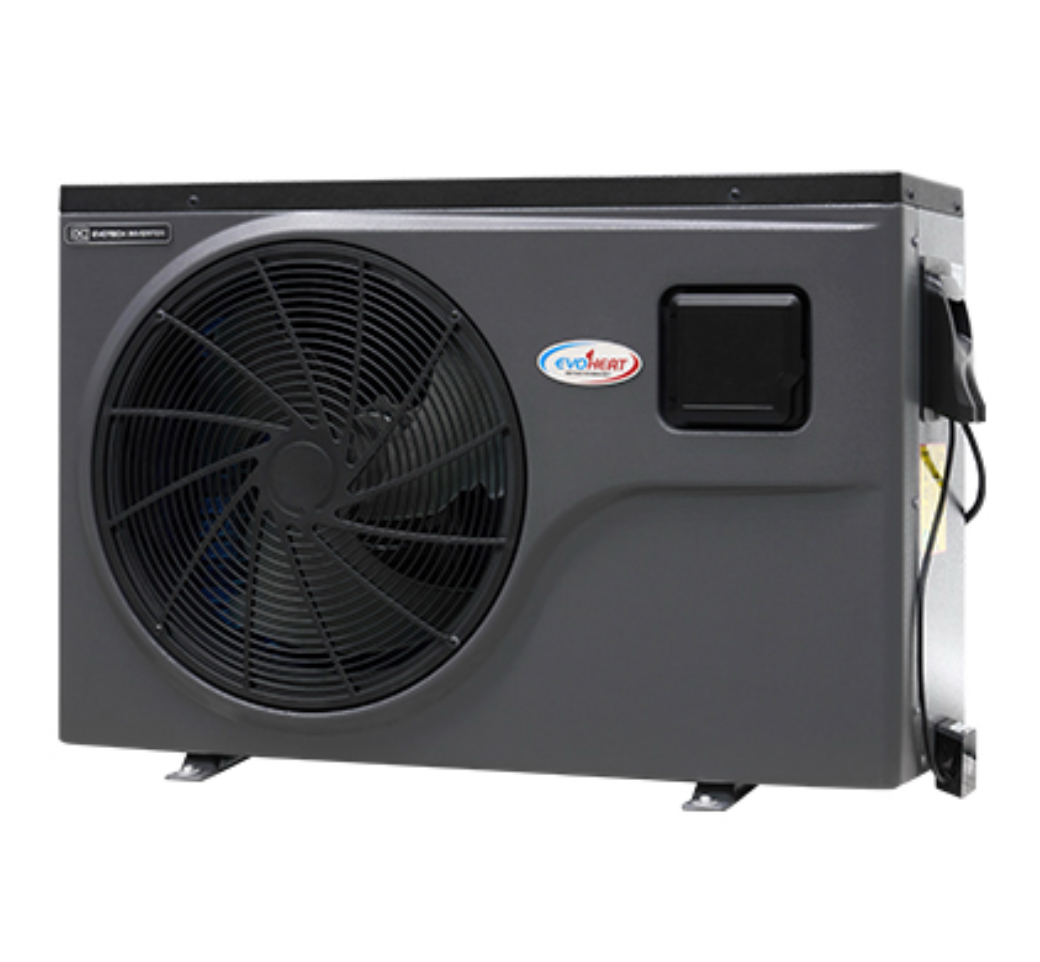

EvoHeat Fusion-i Pro Heat Pump Range
Smart inverter pool heating with quiet performance and lower running costs
The EvoHeat Fusion-i Pro range is designed for pool and spa owners who want a longer swim season without the high ongoing costs often associated with older heating systems. With stepless full DC inverter technology, the Fusion-i Pro automatically adjusts its output to match demand, helping your pool reach temperature efficiently and maintain it with less wasted energy.
This upgraded series adds practical features that make day-to-day ownership easier, including Wi-Fi control, an intuitive colour touchscreen controller, built-in timers, and Solar Smart mode to better utilise available solar PV. With heating, cooling, and auto modes available across the range, the EvoHeat Fusion-i Pro offers a flexible and modern heating solution for Australian backyards.
Key Features
- Stepless full DC inverter compressors, fans, and control systems for efficient variable-speed performance
- Wi-Fi control via smartphone app for remote monitoring and temperature management

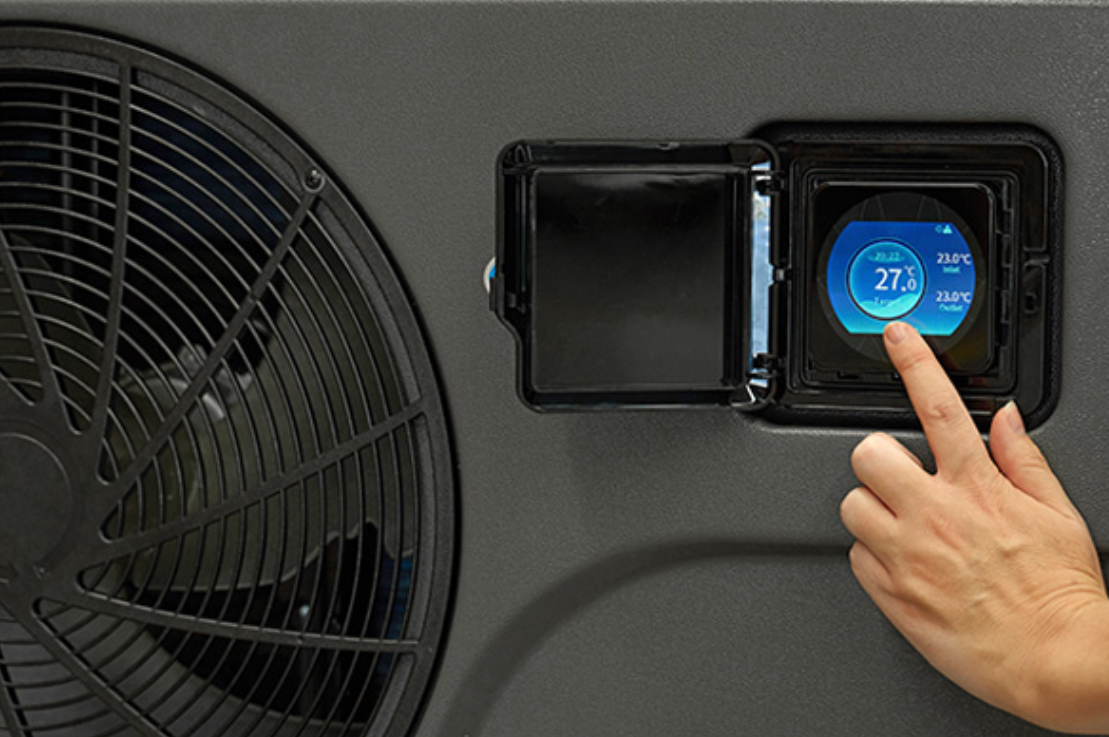

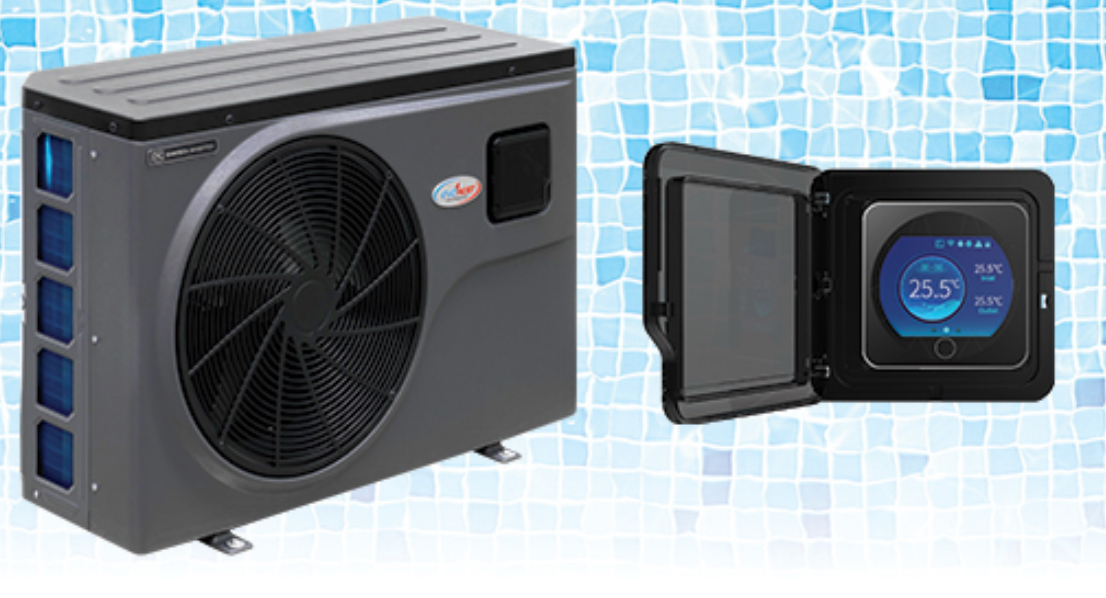

- Intuitive colour LCD touchscreen controller for simple on-unit control
- Built-in timers to help schedule operation around lower tariffs or solar generation
- Solar Smart mode to maximise PV solar usage and reduce heating costs
- Heating, cooling, and auto modes for more flexible year-round pool management
- Ultra-quiet operation, with selected models operating as low as 38 dB(A) at 1 metre
- High efficiency performance with COP figures up to 13 under rated conditions
- R32 refrigerant for efficient and environmentally conscious operation

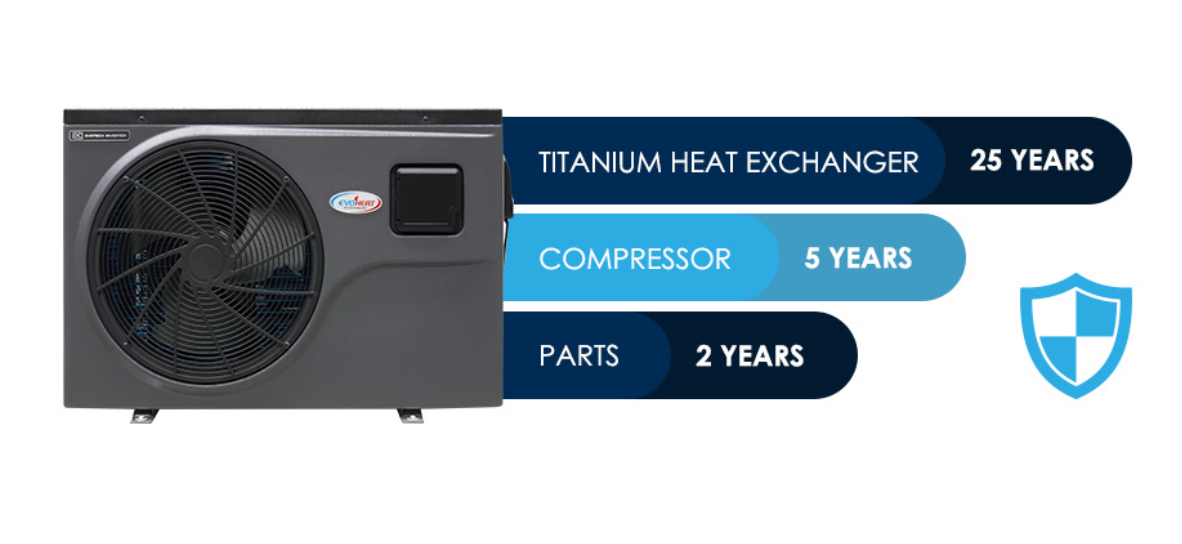

Warranty
All EvoHeat Fusion-i Pro models include the following manufacturer-backed warranty coverage:
- 25 years on titanium heat exchanger
- 5 years on compressor
- 2 years on parts
- 1 year on labour
Warranty is subject to correct installation, operating conditions, and manufacturer terms. Conditions apply.
Model Comparison Table
| Model | Heating Capacity (kW) 27°C Air / 26°C Water In |
COP 27°C Air / 26°C Water In |
Heating Capacity (kW) 15°C Air / 26°C Water In |
Power Supply | Connection Type | Water Flow (L/min) | Noise @ 1m (dBA) | Noise @ 1m Silent (dBA) | Weight (kg) | Dimensions L/W/H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| Fusion-i Pro 7 | 2~7 | 12~5.89 | 1.10~5 | 220-240/1/50 | 10amp plug | 46.67 | 38~51 | 39 | 41 | 934 / 360 / 582 |
| Fusion-i Pro 9 | 2.4~9.36 | 12.5~5.98 | 1.2~6.6 | 220-240/1/50 | 10amp plug | 46.67 | 40~52 | 40 | 42 | 934 / 360 / 582 |
| Fusion-i Pro 13 | 3.2~12.3 | 12.7~6.04 | 1.78~9.07 | 220-240/1/50 | 15amp plug | 66.67 | 42~54 | 43 | 44 | 934 / 360 / 582 |
| Fusion-i Pro 16 | 4.18~15.48 | 12.9~6.01 | 2.17~10.99 | 220-240/1/50 | Hardwired | 85 | 44~55 | 44 | 60 | 1048 / 453 / 770.5 |
| Fusion-i Pro 19 | 4.38~18 | 13.0~5.68 | 2.4~12.47 | 220-240/1/50 | Hardwired | 85 | 44~56 | 45 | 69 | 1048 / 453 / 770.5 |
| Fusion-i Pro 24 | 4.7~24.6 | 13.0~6.32 | 4.40~18.6 | 220-240/1/50 | Hardwired | 166.67 | 45~56 | 46 | 90 | 1159.5 / 490 / 844 |
| Fusion-i Pro 28-3 | 7.7~28.87 | 13~6.43 | 6.4~21.4 | 380-415/3/50 | Hardwired | 200 | 45~57 | 47 | 93 | 1159.5 / 490 / 844 |
| Fusion-i Pro 35-3 | 10.3~32.37 | 13.0~5.49 | 7.85~24.41 | 380-415/3/50 | Hardwired | 230 | 45~57 | 47 | 93 | 1159.5 / 490 / 844 |
Performance values are rated under EvoHeat’s published test conditions. Specifications may change without notice.
EvoHeat Fusion-i Pro Heat Pump Range
Smart inverter pool heating with quiet performance and lower running costs
The EvoHeat Fusion-i Pro range is designed for pool and spa owners who want a longer swim season without the high ongoing costs often associated with older heating systems. With stepless full DC inverter technology, the Fusion-i Pro automatically adjusts its output to match demand, helping your pool reach temperature efficiently and maintain it with less wasted energy.
This upgraded series adds practical features that make day-to-day ownership easier, including Wi-Fi control, an intuitive colour touchscreen controller, built-in timers, and Solar Smart mode to better utilise available solar PV. With heating, cooling, and auto modes available across the range, the EvoHeat Fusion-i Pro offers a flexible and modern heating solution for Australian backyards.
- Stepless full DC inverter compressors, fans, and control systems for efficient variable-speed performance
- Wi-Fi control via smartphone app for remote monitoring and temperature management
- Intuitive colour LCD touchscreen controller for simple on-unit control
- Built-in timers to help schedule operation around lower tariffs or solar generation
- Solar Smart mode to maximise PV solar usage and reduce heating costs
- Heating, cooling, and auto modes for more flexible year-round pool management
- Ultra-quiet operation, with selected models operating as low as 38 dB(A) at 1 metre
- High efficiency performance with COP figures up to 13 under rated conditions
- R32 refrigerant for efficient and environmentally conscious operation
All EvoHeat Fusion-i Pro models include the following manufacturer-backed warranty coverage:
- 25 years on titanium heat exchanger
- 5 years on compressor
- 2 years on parts
- 1 year on labour
Warranty is subject to correct installation, operating conditions, and manufacturer terms. Conditions apply.
| Model | Heating Capacity (kW) 27°C Air / 26°C Water In |
COP 27°C Air / 26°C Water In |
Heating Capacity (kW) 15°C Air / 26°C Water In |
Power Supply | Connection Type | Water Flow (L/min) | Noise @ 1m (dBA) | Noise @ 1m Silent (dBA) | Weight (kg) | Dimensions L/W/H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| Fusion-i Pro 7 | 2~7 | 12~5.89 | 1.10~5 | 220-240/1/50 | 10amp plug | 46.67 | 38~51 | 39 | 41 | 934 / 360 / 582 |
| Fusion-i Pro 9 | 2.4~9.36 | 12.5~5.98 | 1.2~6.6 | 220-240/1/50 | 10amp plug | 46.67 | 40~52 | 40 | 42 | 934 / 360 / 582 |
| Fusion-i Pro 13 | 3.2~12.3 | 12.7~6.04 | 1.78~9.07 | 220-240/1/50 | 15amp plug | 66.67 | 42~54 | 43 | 44 | 934 / 360 / 582 |
| Fusion-i Pro 16 | 4.18~15.48 | 12.9~6.01 | 2.17~10.99 | 220-240/1/50 | Hardwired | 85 | 44~55 | 44 | 60 | 1048 / 453 / 770.5 |
| Fusion-i Pro 19 | 4.38~18 | 13.0~5.68 | 2.4~12.47 | 220-240/1/50 | Hardwired | 85 | 44~56 | 45 | 69 | 1048 / 453 / 770.5 |
| Fusion-i Pro 24 | 4.7~24.6 | 13.0~6.32 | 4.40~18.6 | 220-240/1/50 | Hardwired | 166.67 | 45~56 | 46 | 90 | 1159.5 / 490 / 844 |
| Fusion-i Pro 28-3 | 7.7~28.87 | 13~6.43 | 6.4~21.4 | 380-415/3/50 | Hardwired | 200 | 45~57 | 47 | 93 | 1159.5 / 490 / 844 |
| Fusion-i Pro 35-3 | 10.3~32.37 | 13.0~5.49 | 7.85~24.41 | 380-415/3/50 | Hardwired | 230 | 45~57 | 47 | 93 | 1159.5 / 490 / 844 |
Performance values are rated under EvoHeat’s published test conditions. Specifications may change without notice.
Frequently Asked Questions
Q1: Are these electric heat pumps or gas heaters?
The EvoHeat Fusion-i Pro range consists of electric inverter pool and spa heat pumps. They are designed to deliver efficient heating and cooling without the fuel consumption associated with gas systems.
Q2: Can the Fusion-i Pro cool as well as heat?
Yes. This range supports heating, cooling, and auto modes, making it a versatile option for owners who want more control over pool temperature across changing seasons.
Q3: What is Solar Smart mode?
Solar Smart mode is designed to help you better utilise available solar PV by letting you program timers and performance settings around your solar generation window, reducing grid reliance where possible.
Q4: Do all models include Wi-Fi control?
Yes. The Fusion-i Pro range includes Wi-Fi connectivity so you can monitor and control your heater through the EvoHeat smartphone app on iOS or Android.
Q5: Are these units noisy?
The range is designed for ultra-quiet operation, with lower-capacity models starting from 38 dB(A) at 1 metre under published conditions. Noise will vary depending on model size and operating load.
Q6: Which models need hardwired electrical connection?
The Fusion-i Pro 16 and larger models are listed as hardwired. The smaller 7 and 9 models use a 10 amp plug, while the 13 model uses a 15 amp plug. Electrical installation should always be handled by a licensed professional.
Q7: What refrigerant does the Fusion-i Pro use?
All models in the range use R32 refrigerant, which is widely used in modern heat pump systems for efficient performance and lower environmental impact compared with older refrigerants.
Q8: Is this range suitable for both pools and spas?
Yes. EvoHeat presents the Fusion-i Pro as a swimming pool and spa inverter heat pump, making it suitable for heating applications across both pool and spa installations when correctly sized.
