Hayward Pro Series Media Filter Range
Durable, high-rate sand filters for residential and commercial pools
The Hayward Pro Series Media Filters offer robust, corrosion-resistant performance for pools of all sizes. With large tank diameters ranging from 24" to 36", these high-performance filters deliver excellent flow rates and optimal filtration quality. Built with a unique flange clamp design and integral top diffuser, the Pro Series ensures even distribution of water across the sand bed for clearer, cleaner pool water.
This filter range is trusted across Australian households and backed by local availability. Supplied via authorised distributors with wide compatibility for 40mm or 50mm MPV setups. All units are shipped Australia-wide from Premium Pool Equipment with dedicated product support.
Key Features
- Rugged corrosion-proof tank construction
- Integral top diffuser for even flow distribution
- Large pressure sand bed for superior filtration

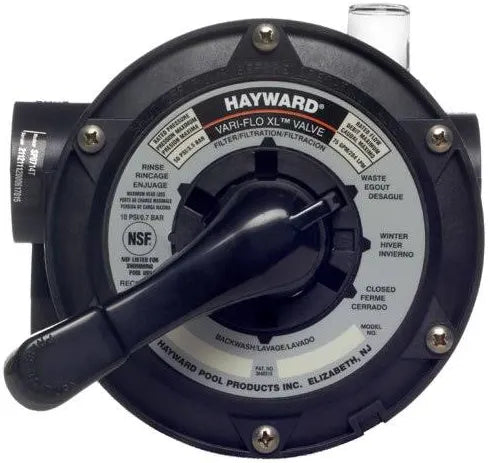

- Clamp-style multiport valve for easy servicing
- Compatible with both fine and glass media
Model Comparison Table
| Model | Tank Diameter | MPV Connection | Max Flow Rate (LPM) | Sand Media (kg) | Glass Media (kg) | Max Pressure (kPa) | Design Flow Rate | Warranty |
|---|---|---|---|---|---|---|---|---|
| 103724 – Pro 24" (40mm) | 24″ | 40mm | 270 | 140 | 40 + 80 | 350 | 205 LPM/m² | 2yr parts |
| 103725 – Pro 24" (50mm) | 24″ | 50mm | 320 | 140 | 40 + 80 | 350 | 205 LPM/m² | 2yr parts |
| 103727 – Pro 27" | 27″ | 50mm | 360 | 160 | 60 + 100 | 350 | 205 LPM/m² | 2yr parts |
| 103731 – Pro 31" | 31″ | 50mm | 440 | 230 | 60 + 120 | 350 | 205 LPM/m² | 2yr parts |
| 103736 – Pro 36" | 36″ | 50mm | 530 | 318 | 100 + 180 | 350 | 205 LPM/m² | 2yr parts |
Source: Hayward Pro Series Manual IS210TS, Austral Pool Equipment Catalogue (2025).
Frequently Asked Questions
Q1: Can I use glass media instead of sand?
Yes — all models are compatible with coarse and fine glass media. Refer to the table for specific quantities.
Q2: What size MPV does each model use?
The 24" model is available in both 40mm and 50mm MPV variants; all other models are 50mm standard.
Q3: Is this filter suitable for saltwater pools?
Yes — the Pro Series is built with corrosion-resistant materials and works well in both freshwater and saltwater systems.
