Hayward Super Fit II Pool Pump Series
Hayward Super Fit II Pool Pump Series
We sell below minimum advertised price. Inquire to request our best price.

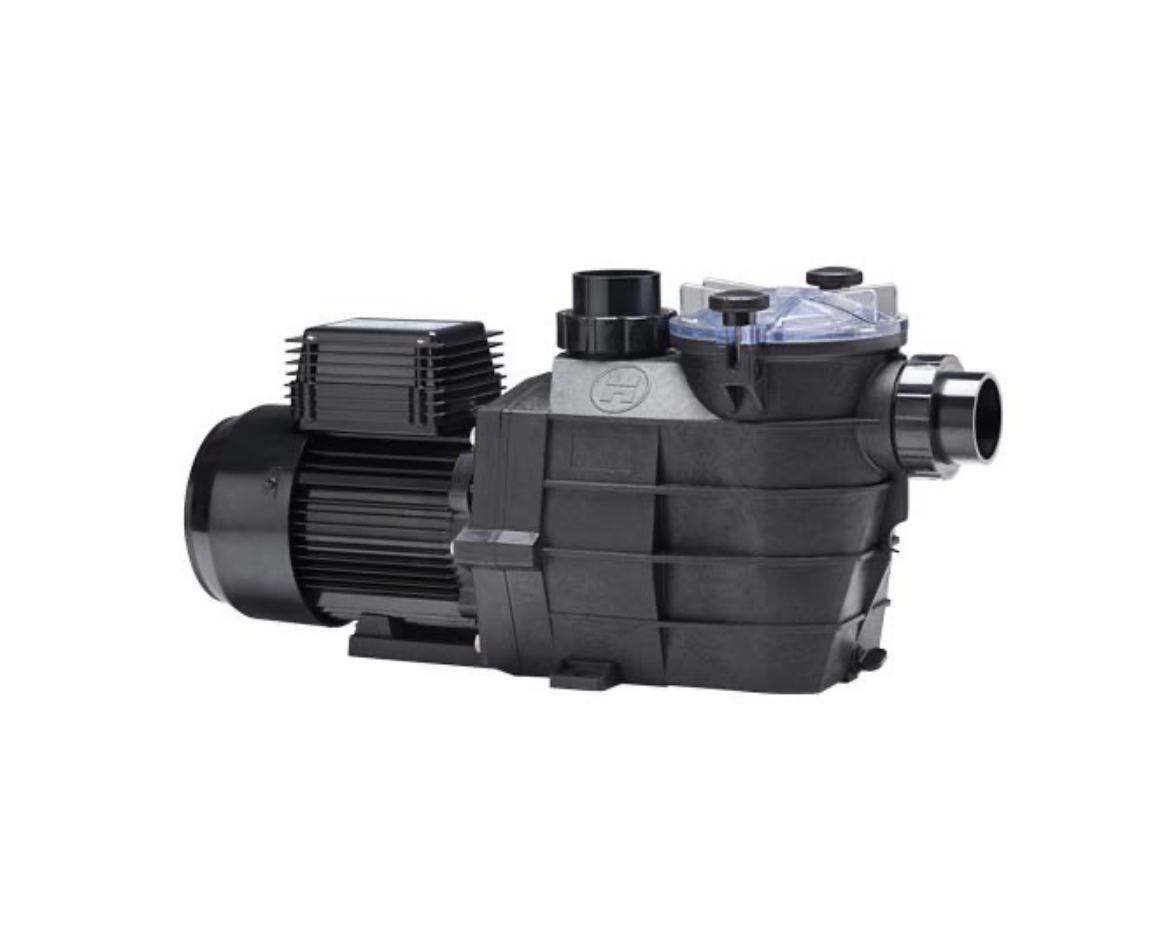

Hayward SuperFit II Single-Speed Pool Pump Series
Powerful, Quiet, and Designed to Retrofit Astral Pumps
The Hayward SuperFit II Single-Speed Pool Pump range delivers outstanding hydraulic performance with whisper-quiet operation, advanced energy efficiency, and a proven design trusted across Australian backyards. Designed to suit both new builds and equipment upgrades, this premium pump range is IPX5 rated for superior protection and operates under 70 dB(A) — making it an excellent choice for residential installations.
Each model in the SuperFit II Series is a direct drop-in replacement for Astral CTX and E-series pumps, making upgrades simple and fast. Backed by a 2-year standard warranty (extendable to 3 years via Totally Hayward dealers), and ready for fast shipping from Premium Pool Equipment, this pump range offers high performance with zero fuss.
Key Features
- Compatible drop-in replacement for Astral CTX and E-Series pumps
- High flow rates from 320 to 550 L/min (model dependent)
- Ultra-quiet operation: all models < 70 dB(A)
- IPX5 weatherproof rating for long-term durability
- Energy Star certified for greater energy savings

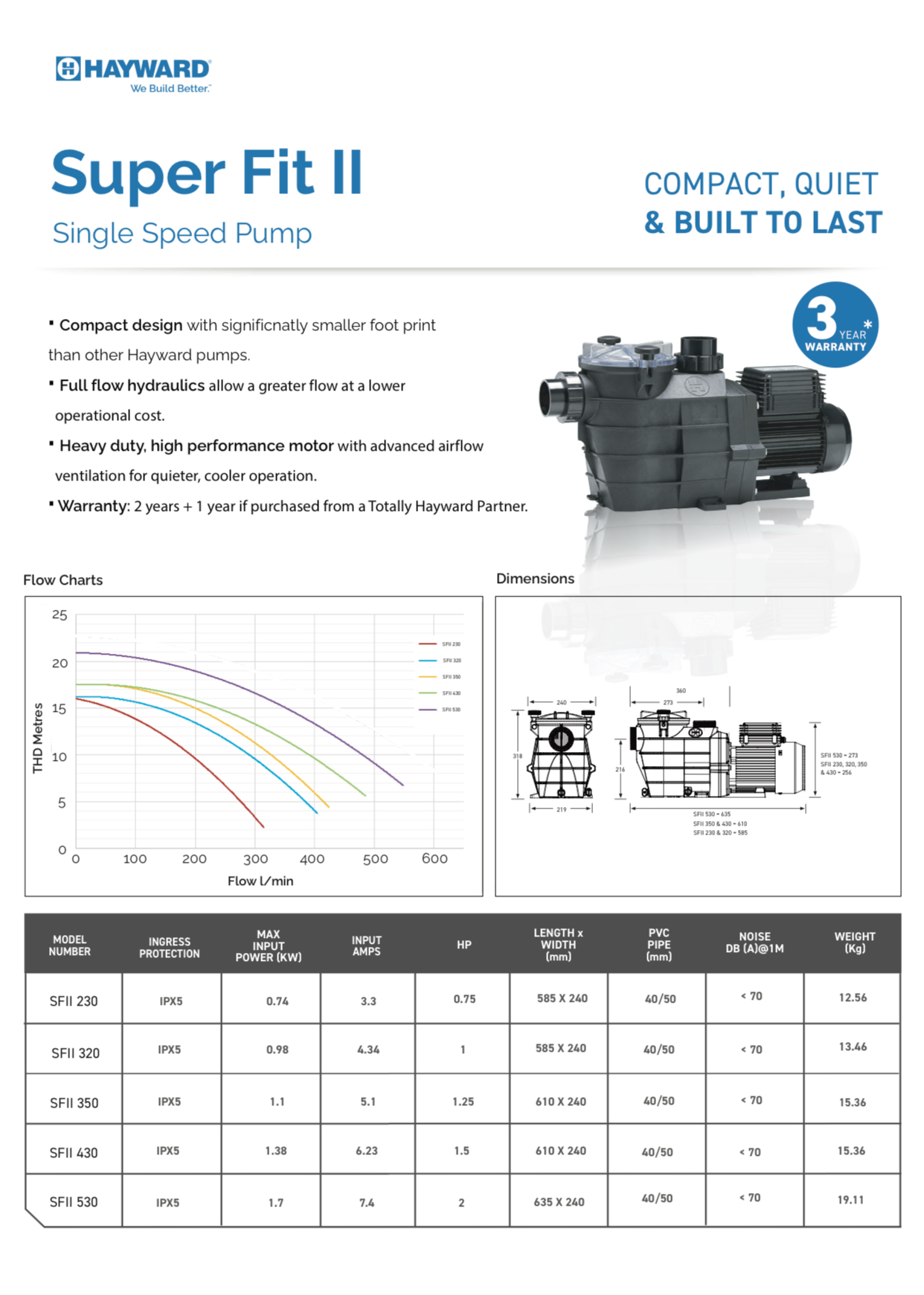

Model Comparison Table
| Model | Flow Rate (L/min) | Horsepower (HP) | Total Head (m) | Weight (kg) | Dimensions (mm) | Efficiency |
|---|---|---|---|---|---|---|
| SuperFit II (SS) | 320 | 0.75 | 16.0 | 12.5 | 585 × 219 × 320 | Energy Star Certified |
|
SuperFit II (SS) |
400 | 1.0 | 16.2 | 13.4 | 585 × 219 × 320 | Energy Star Certified |
| SuperFit II (SS) | 410 | 1.25 | 17.5 | 15.3 | 610 × 219 × 320 | Energy Star Certified |
| SuperFit II (SS) | 490 | 1.5 | 17.5 | 15.3 | 610 × 219 × 320 | Energy Star Certified |
| SuperFit II (SS) | 550 | 2.0 | 20.9 | 19.0 | 618 × 240 × 320 | Energy Star Certified |
*Warranty: 2 years standard or 3 years when installed by a Totally Hayward Partner.
Frequently Asked Questions
Q1: Can this pump replace my old Astral CTX or E-Series model?
Yes — the SuperFit II is specifically designed as a drop-in replacement for both CTX and E-Series Astral pumps, with aligned dimensions and fittings.
Q2: Is this pump energy efficient?
Yes — all models are Energy Star certified and deliver high flow at lower energy consumption compared to older models.
Q3: How do I claim the 3-year extended warranty?
Purchase through a Totally Hayward-authorised dealer and register your pump online to receive the extended 3-year warranty.
