Hayward SwimClear Cartridge Filter Series
Hayward SwimClear Cartridge Filter Series
We sell below minimum advertised price. Inquire to request our best price.
Hayward SwimClear Cartridge Filter Series
High-capacity cartridge filtration with superior water clarity
The Hayward SwimClear Cartridge Filter Series delivers crystal-clear water with minimal maintenance. Designed with advanced Easy-Lok technology and premium single-element cartridges, these filters provide superior flow rates, extended filter cycles, and industry-leading dirt-holding capacity. Ideal for residential pool owners who value performance, clarity, and efficiency — without the need for backwashing.
Premium Pool Equipment is proud to supply genuine Hayward SwimClear filters across Australia. All models include full warranty support and fast shipping. Need help choosing the right size? Contact our team for expert advice.
Key Features
- Crystal-clear filtration with high dirt-holding capacity
- Easy-Lok ring design for tool-free cartridge access
- Low resistance for improved pump efficiency
- Compact footprint ideal for tight equipment areas
- Durable, UV-resistant housing built for Aussie conditions
Model Comparison Table
| Model | Filtration Area (m²) | Design Flow Rate (LPM) | Dimensions H × W (mm) | Turnover 8 h / 10 h (kL) | Weight (kg) |
|---|---|---|---|---|---|
| C100S | 9.29 | 379 | 775 × 464 | 48 / 60 | 15 |
| C150S | 13.94 | 455 | 857 × 464 | 57.6 / 72 | 17 |
| C200S | 18.58 | 455 | 984 × 464 | 57.6 / 72 | 18 |
*Turnover capacity and weight based on Hayward SwimClear Single Element sell‑sheet (LITSCSESS23). Clearance above filter head for cartridge removal: C100S = 305 mm; C150S = 381 mm; C200S = 457 mm. Warranty: 3 year parts & labour (when purchased through Totally Hayward® partner).
Frequently Asked Questions
Q1: What size Hayward SwimClear filter should I choose?
Refer to your pool size and pump flow rate. The C150S is the most popular for standard residential pools. See the comparison table above for flow capacity.
Q2: Do these filters require backwashing?

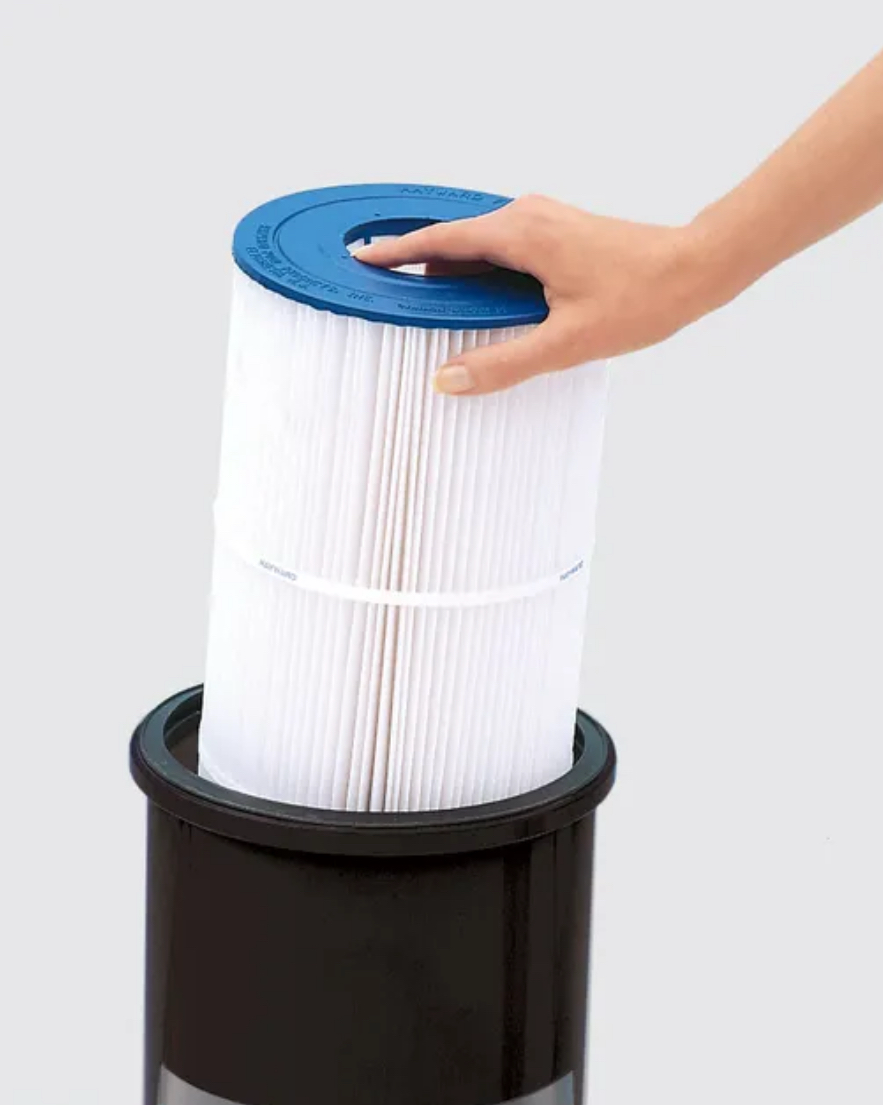

No — these are cartridge filters. Simply hose off the cartridge when pressure builds or as recommended by your pool professional.
Q3: Are replacement cartridges available?
Yes. Premium Pool Equipment stocks genuine Hayward replacement cartridges and accessories — contact us to order.
