Madimack InverECO Plus Heat Pump Range
Energy-Efficient Heating with Market-Leading Warranties

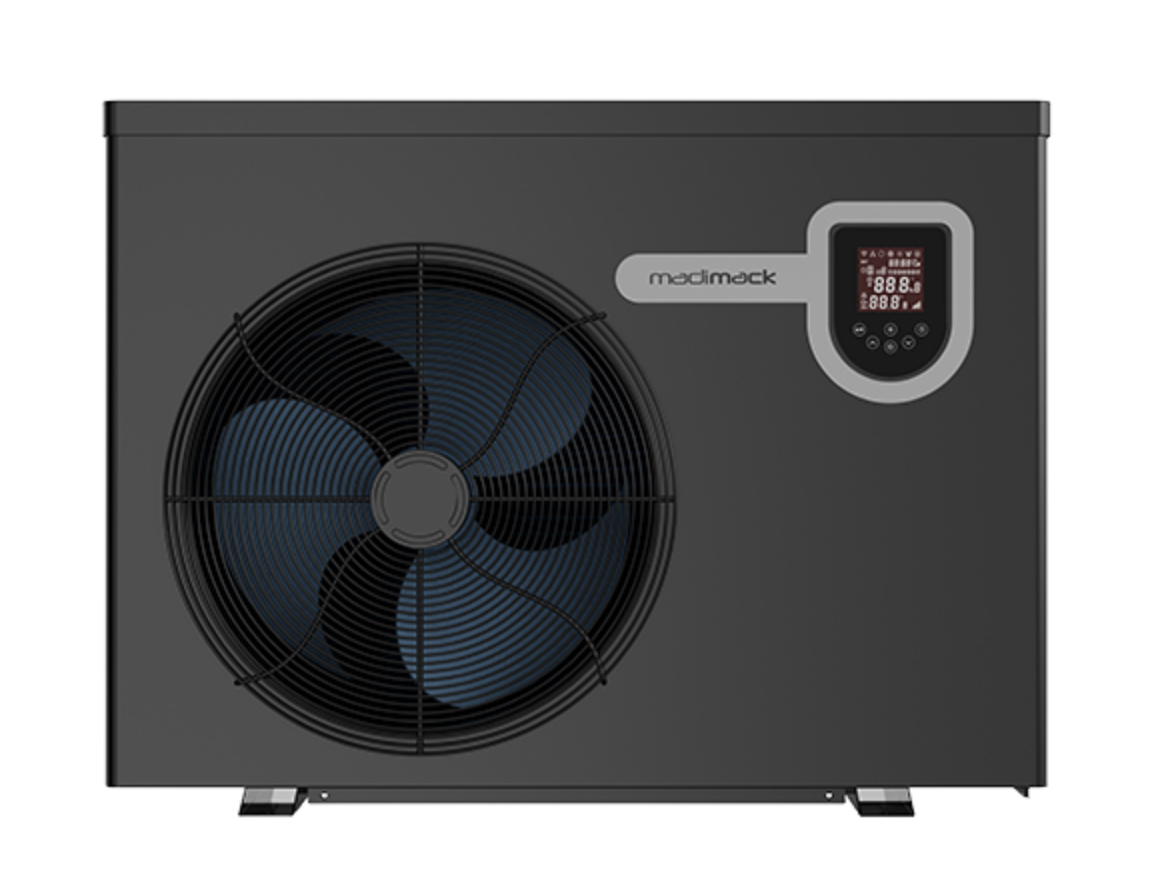

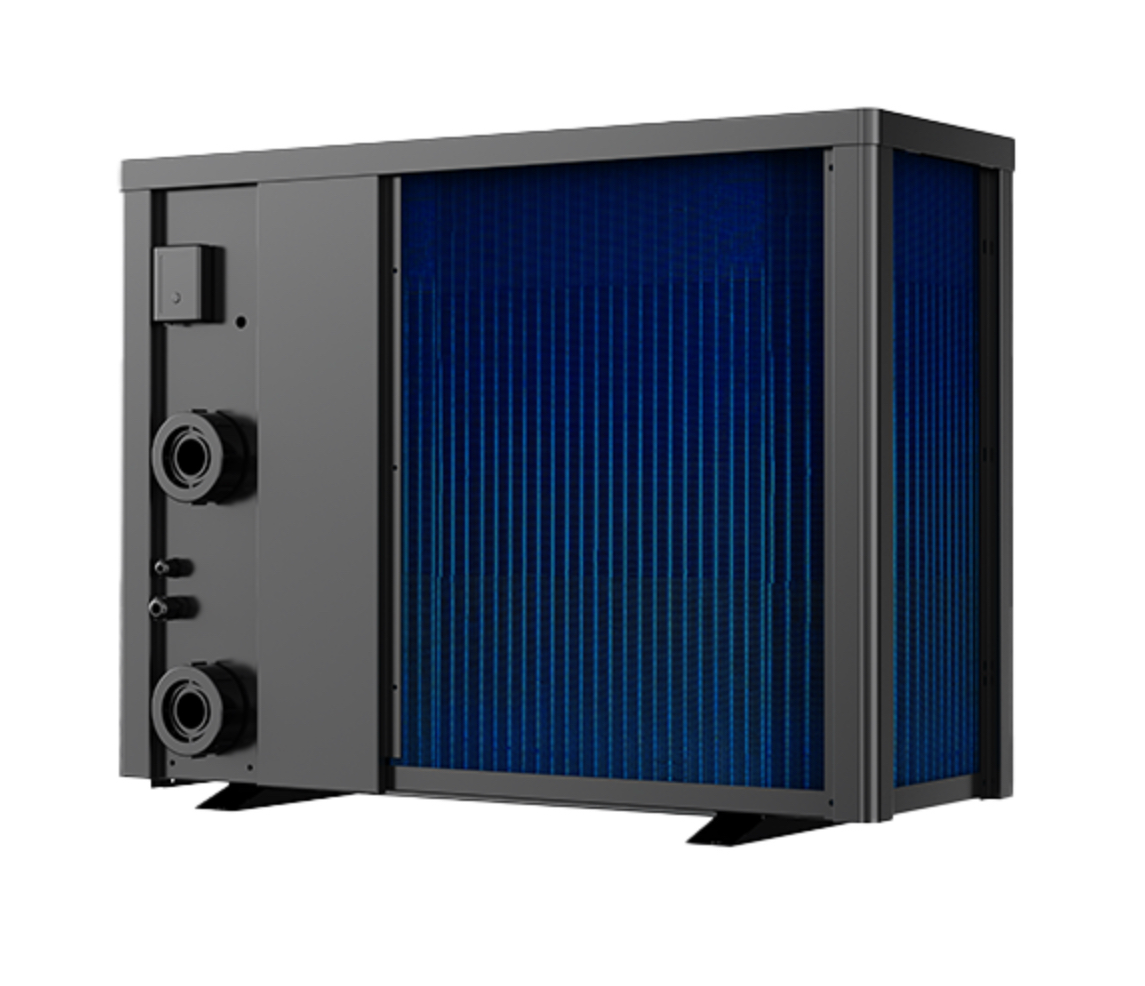

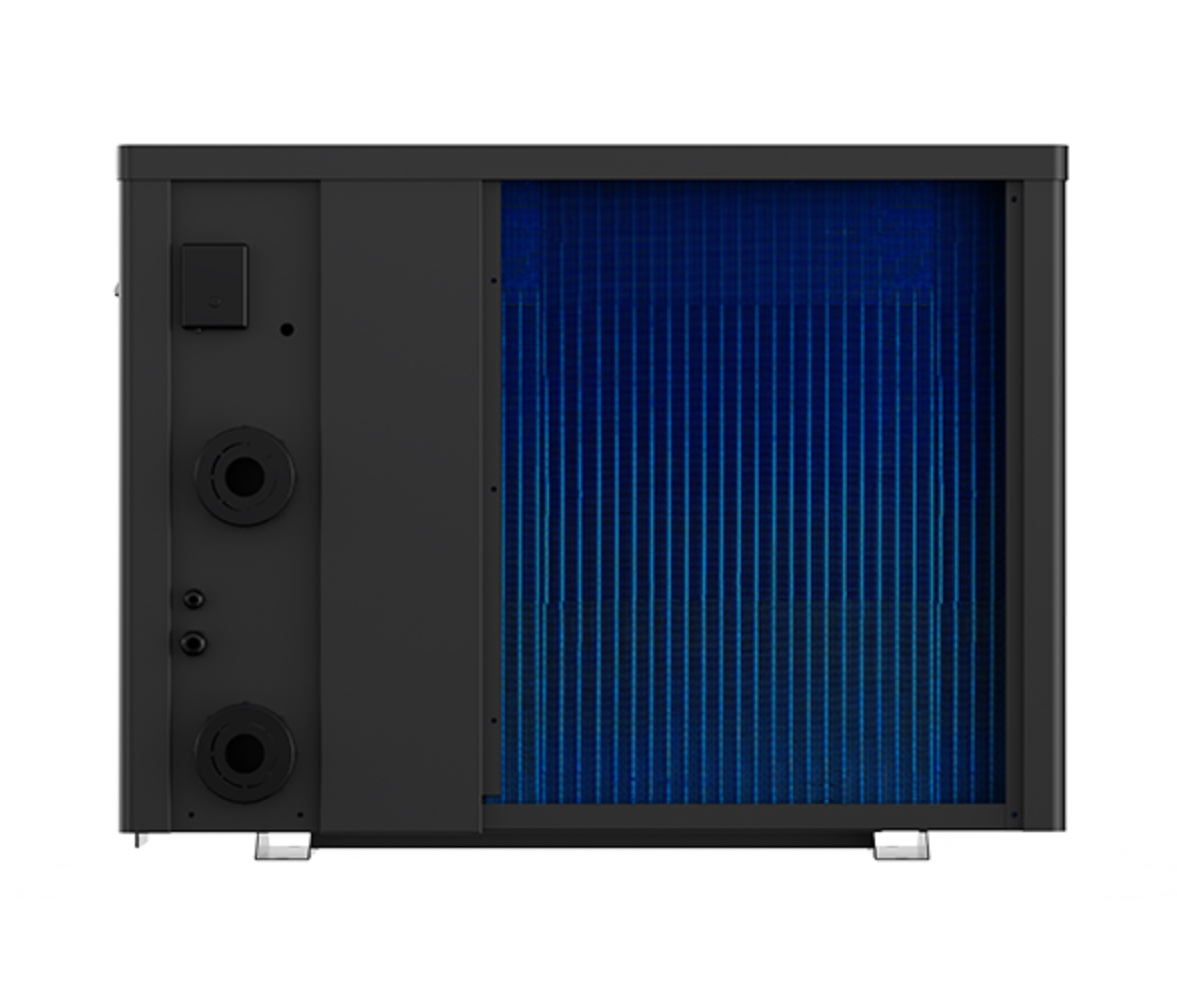

The Madimack Eco Plus Series is an advanced inverter pool heat pump designed to provide reliable, high-performance heating across a range of pool sizes. Built with twisted titanium heat exchangers and powered by full stepless DC compressor technology, it delivers industry-leading efficiency with quiet operation and performance down to 0°C. The Eco Plus series includes models from 9.0kW to 28.0kW heating capacity, covering everything from plunge pools to large residential systems.
Each unit comes backed by 25 years warranty on the titanium heat exchanger, 5 years on the compressor, and 1 year on parts. As a verified Madimack reseller, we offer expert support, fast local dispatch, and professional installation options for customers in the Perth region.
Key Features
- High-efficiency inverter technology with COP up to 11.0
- Silent operation with sound levels as low as 41.6 dB(A)
- Twisted titanium heat exchanger for superior durability
- Operates down to 0°C ambient temperature
- 25-year heat exchanger warranty for long-term confidence
Model Comparison Table
| Model | Heating Capacity (kW) | COP Range | Cooling Capacity (kW) | Max Input Current (A) | Water Flow (m³/h) | Dimensions (mm) | Net Weight (kg) | Sound Level @1m (dB) | Warranty |
|---|---|---|---|---|---|---|---|---|---|
| Eco Plus 90 | 9.0 | 10.5 ~ 6.2 | 3.6 | 8 | 3 ~ 5 | 864×359×648 | 46 | 41.6 ~ 53.5 | 25Y HEX 5Y Compressor 1Y Parts |
| Eco Plus 130 | 13.0 | 10.8 ~ 6.3 | 5.0 | 10 (plug) | 4 ~ 6 | 864×359×648 | 49 | 43.9 ~ 54.0 | 25Y HEX 5Y Compressor 1Y Parts |
| Eco Plus 160 | 16.0 | 10.7 ~ 6.2 | 6.1 | 17 | 6 ~ 8 | 954×359×748 | 60 | 46.2 ~ 57.3 | 25Y HEX 5Y Compressor 1Y Parts |
| Eco Plus 200 | 20.2 | 10.8 ~ 6.2 | 7.7 | 19.5 | 7 ~ 10 | 954×359×748 | 68 | 46.3 ~ 58.1 | 25Y HEX 5Y Compressor 1Y Parts |
| Eco Plus 240 | 24.2 | 10.8 ~ 6.3 | 8.8 | 20.5 | 10 ~ 12 | 954×429×748 | 80 | 46.9 ~ 58.7 | 25Y HEX 5Y Compressor 1Y Parts |
| Eco Plus 280 | 28.0 | 11.0 ~ 6.3 | 10.8 | 20 | 10 ~ 12 | 1122×415×958 | 90 | 48.6 ~ 60.5 | 25Y HEX 5Y Compressor 1Y Parts |
*COP ranges based on Air 27°C / Water 27°C / Humidity 80%. For full performance details, refer to technical documentation.
Recommended Pool Volumes
Use the table below to select the correct model based on your total pool volume. These estimates assume average residential usage, good insulation, and a pool cover. For cold climates or uncovered pools, size up one model for best results.
| Model | Recommended Pool Volume (L) | Typical Pool Type |
|---|---|---|
| ECO PLUS 90 | 10,000 – 20,000 L | Spas & plunge pools |
| ECO PLUS 130 | 20,000 – 30,000 L | Small backyard pools |
| ECO PLUS 160 | 30,000 – 45,000 L | Standard residential pools |
| ECO PLUS 200 | 45,000 – 60,000 L | Large family pools |
| ECO PLUS 240 | 60,000 – 75,000 L | Resort or oversized pools |
| ECO PLUS 280 | 75,000 – 90,000 L | Extra-large or commercial |
*Pool size estimates are based on Australian conditions with good insulation and regular use of a thermal cover. Always consult a technician for oversized or high-demand systems.
Frequently Asked Questions
Q: What type of heating system is the Madimack Eco Plus?
A: The Eco Plus range features electrical inverter heat pumps — not gas heaters. These are energy-efficient, air-sourced systems that use electricity to extract heat from ambient air and transfer it into your pool water.
Q: What pool sizes are suitable for each model?
A: Each model is designed for a specific pool volume. Refer to the “Recommended Pool Volumes” table for detailed guidance. The Eco Plus 90 suits pools up to 30,000L, while the Eco Plus 280 can heat larger pools up to 90,000L in warmer climates.
Q: How energy-efficient is this system?
A: With a maximum COP of up to 11.0, the Eco Plus range is one of the most efficient on the market. This means for every 1kW of electricity used, it can produce up to 11kW of heat — significantly reducing running costs compared to traditional systems.
Q: Can I install the Eco Plus myself?
A: Professional installation is strongly recommended. Correct sizing, plumbing integration, and electrical setup are critical for safe and optimal performance. Many warranties also require certified installation.
Q: Is this heat pump compatible with existing pool equipment?
A: Yes — the Eco Plus can be integrated into most filtration systems. Ensure adequate water flow (as per model specs) and compatibility with any existing automation systems or controllers if required.
Q: Does it work in cooler temperatures?
A: Absolutely. The Eco Plus heat pumps are built for Australian conditions and operate efficiently down to 0°C ambient air temperature, making them suitable for year-round use in most regions.
Q: How loud is the Eco Plus when operating?
A: All models are designed for low-noise operation. Depending on the model, sound levels range from as low as 41.6 dB to a maximum of 60.5 dB — comparable to light rainfall or a quiet conversation.
Q: What is covered under warranty?
A: The Eco Plus range includes a 25-year warranty on the titanium heat exchanger, a 5-year compressor warranty, and 1-year parts coverage. Warranty is subject to proper installation and usage as outlined in the official documentation.
Q: Can I control this heat pump remotely?
A: Yes. The Eco Plus range includes WiFi connectivity, allowing you to monitor and control your pool heating remotely through the Madimack app — ideal for adjusting settings while away or preparing your pool in advance.
Q: Will this system reduce my overall energy costs?
A: Yes. Thanks to the high COP and inverter efficiency, many users report significant long-term savings on pool heating costs. When paired with solar panels, the savings are even greater.
