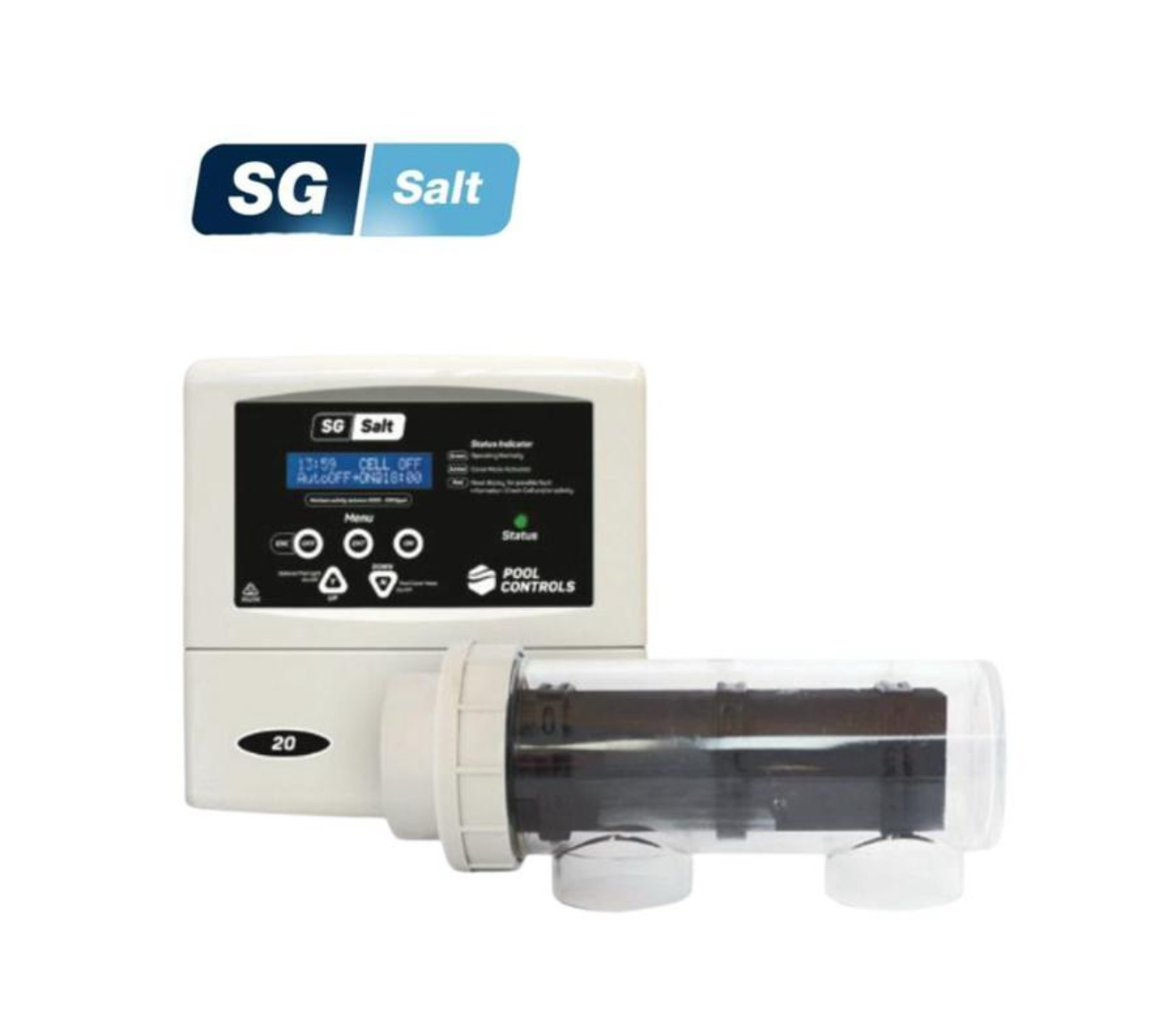

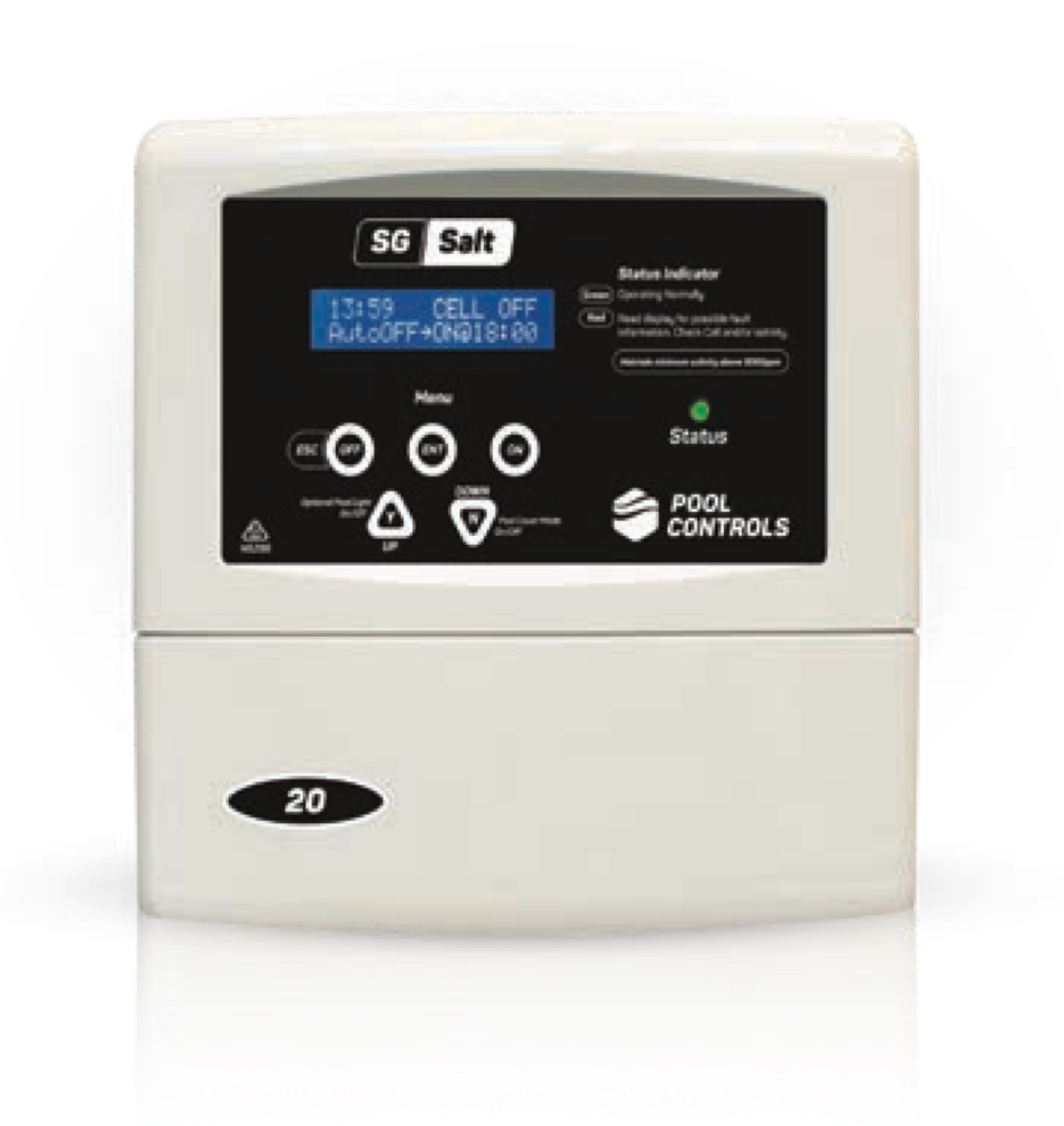

SG Series Salt Water Chlorinators
Simple, reliable saltwater chlorination for clear, low-maintenance pools
The Pool Controls SG Series is built for straightforward, dependable pool care. Choose from 10 g/hr, 20 g/hr or 30 g/hr chlorine output and select models with additional timed power outlets to run your cleaner or lights on schedule. Every SG uses a reverse-polarity, self-cleaning electrolytic cell for reduced scaling and easier upkeep, and is suitable for both traditional salt and mineral-blend pools.
Want truly hands-off water balance? Add the optional SG pH Control Module (peristaltic acid dosing). It plugs straight in, is auto-recognised by the SG control unit and maintains stable pH to keep sanitation effective and water sparkling.
Key Features
- Output options: 10, 20 or 30 g/hr to suit small through larger family pools.
- Reverse-polarity self-cleaning cell minimises scale and maintenance.
- “T” variants include extra timed power outlets for lights/cleaners.
- Salt & mineral compatible for flexible water chemistry choices.
- Optional SG pH Control Module (peristaltic) for automatic pH management.
- Australian design focused on reliability, simplicity and value.
Model Specification
| Model | Product Code | Chlorine Output | Timed Outlets | Cell Type | Pool Compatibility | Warranty |
|---|---|---|---|---|---|---|
| SG10 | 00122065 | 10 g/hr | No | Reverse-polarity, self-cleaning | Salt & mineral | 3 years |
| SG10T | 00122067 | 10 g/hr | Yes (additional timed outlets) | Reverse-polarity, self-cleaning | Salt & mineral | 3 years |
| SG20 | 00122001 | 20 g/hr | No | Reverse-polarity, self-cleaning | Salt & mineral | 3 years |
| SG20T | 00122002 | 20 g/hr | Yes (additional timed outlets) | Reverse-polarity, self-cleaning | Salt & mineral | 3 years |
| SG30 | 00122004 | 30 g/hr | No | Reverse-polarity, self-cleaning | Salt & mineral | 3 years |
| SG30T | 00122005 | 30 g/hr | Yes (additional timed outlets) | Reverse-polarity, self-cleaning | Salt & mineral | 3 years |
Notes: specifications confirmed through verified official pool controls sources.
Recommended Pool Sizing (Conservative)
| Model | Recommended Max Pool Size* | Notes |
|---|---|---|
| SG10 / SG10T | ≤ 20 kL | Small plunge or compact pools |
| SG20 / SG20T | ≤ 35 kL | Typical suburban family pools |
| SG30 / SG30T | ≤ 55 kL | Larger residential pools or higher bather load |
*Sizing is intentionally conservative to ensure the system is overspecified. For heated pools, frequent entertaining or high debris/sun exposure, move up one output tier. Installer should confirm final selection based on site conditions.

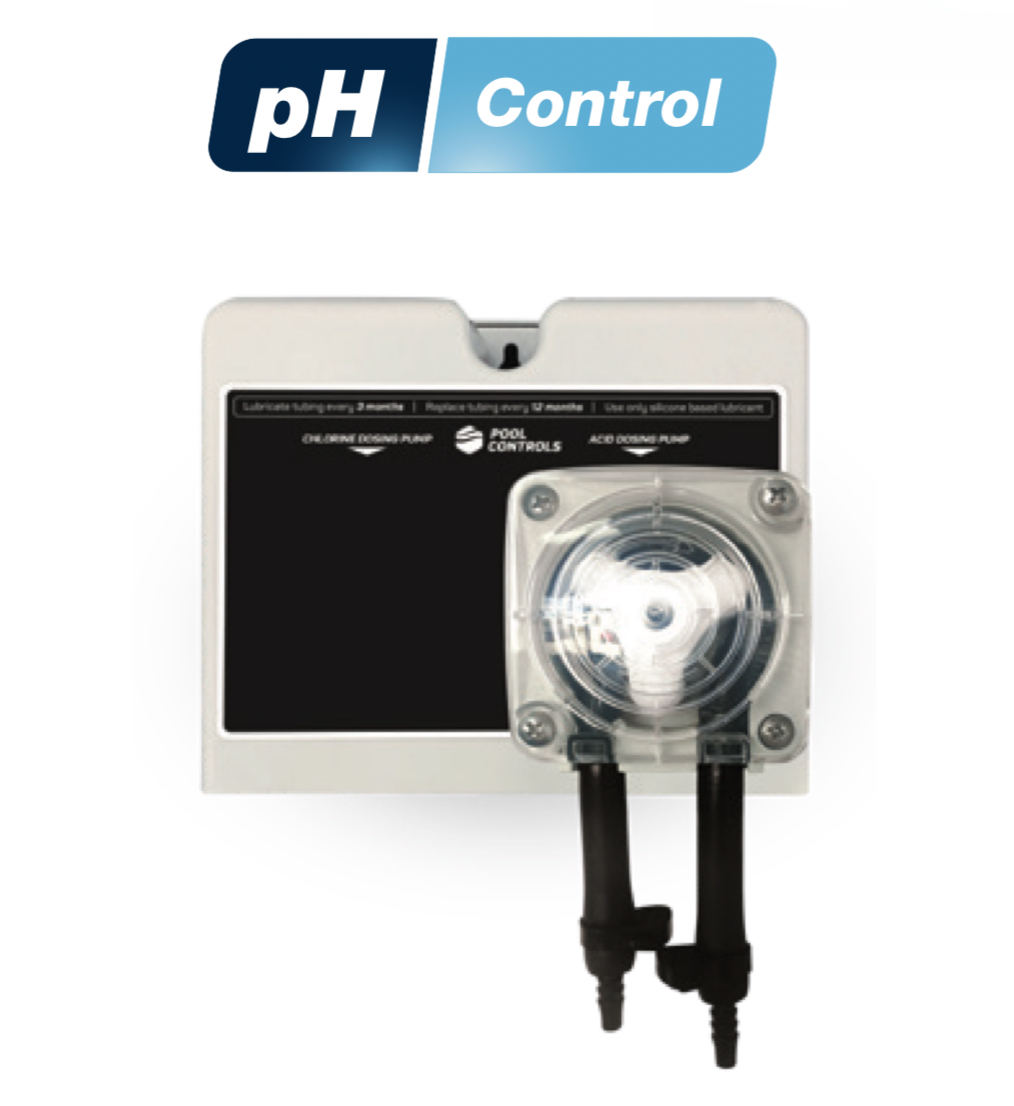

SG pH Control Module (Add-On)
The SG pH Control module plugs into any SG chlorinator and is auto-recognised by the controller. A peristaltic pump (60 RPM) doses diluted acid as required, maintaining stable pH and keeping sanitation efficient—no probes or calibration needed.
| Accessory | Product Code | Pump Type / Speed | Dosing Medium | Integration | Warranty |
|---|---|---|---|---|---|
| SG pH Control Module | 00122021 | Peristaltic — 60 RPM | Diluted pool acid | Auto-recognised by SG; no probe or calibration | 3 years |
*Product details verified from official Pool Controls sources.
Frequently Asked Questions
Q1: Which SG model should I choose for my pool size?
Choose a model that provides slightly more chlorine output than your estimated requirement to ensure the system isn’t overworked:
- SG10 / SG10T – Ideal for pools up to ~20,000L
- SG20 / SG20T – Suitable for pools up to ~35,000L
- SG30 / SG30T – Best for pools up to ~55,000L
Q2: What’s the difference between the “T” models and the standard models?
The “T” variants of each SG model include extra timed power outlets, allowing you to control external devices like lighting, robotic cleaners, or water features directly from the SG control unit. Non-“T” models don’t have these additional outputs.
Q3: Do I need the optional SG pH Control Module?
While not required, the SG pH Control Module is highly recommended. It automates acid dosing to maintain balanced pH levels, which:
- Improves chlorine efficiency
- Helps prevent cloudy water and scale build-up
- Reduces manual maintenance and testing frequency
Q4: What warranty does the SG Series include?
All SG Series Salt Water Chlorinators come with a comprehensive 3-year warranty, backed directly by Pool Controls. This ensures peace of mind, providing full coverage for parts and manufacturer defects for the first three years after purchase. For detailed warranty terms or support, consult the official Pool Controls documentation or your authorised retailer.
