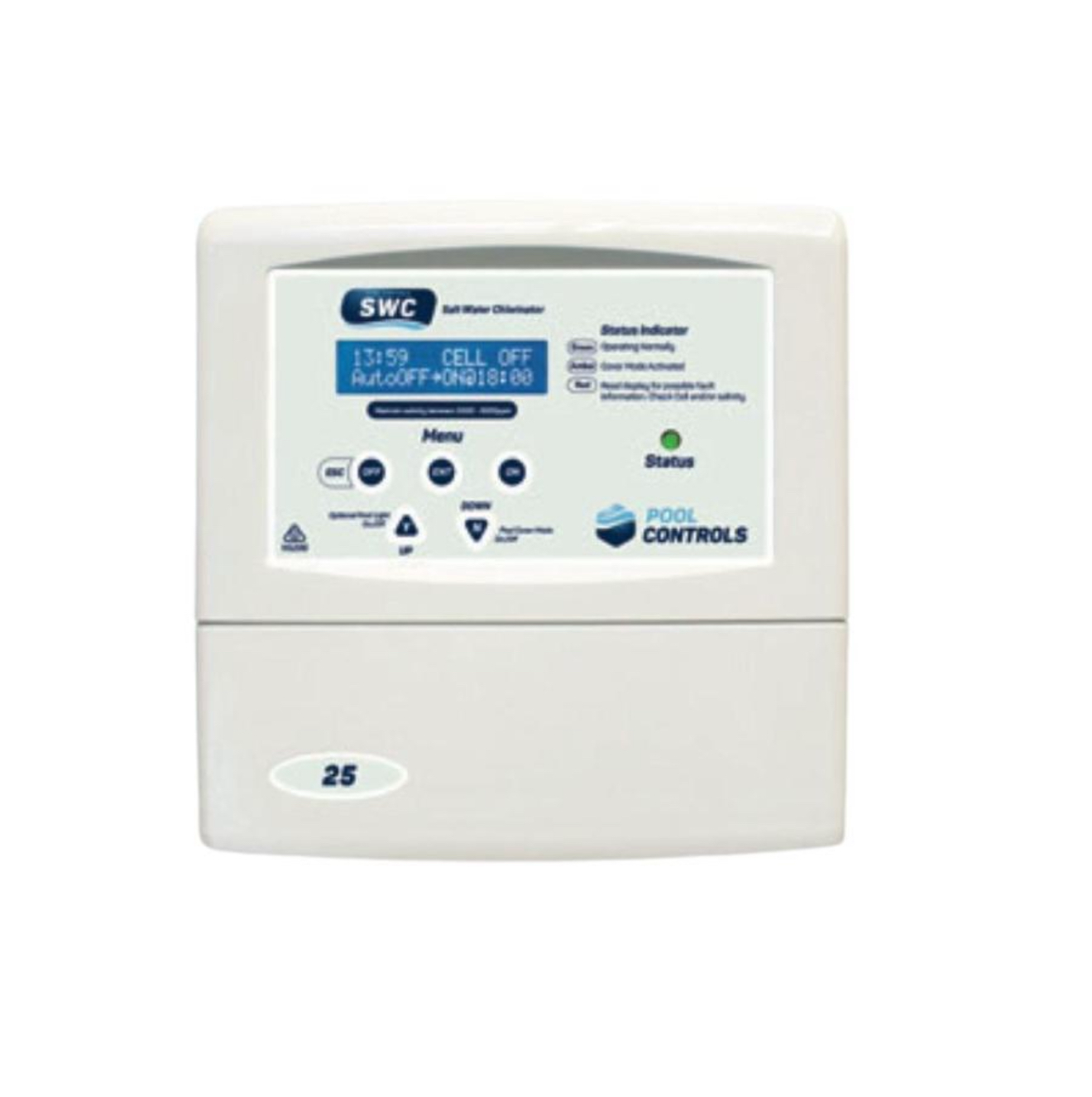

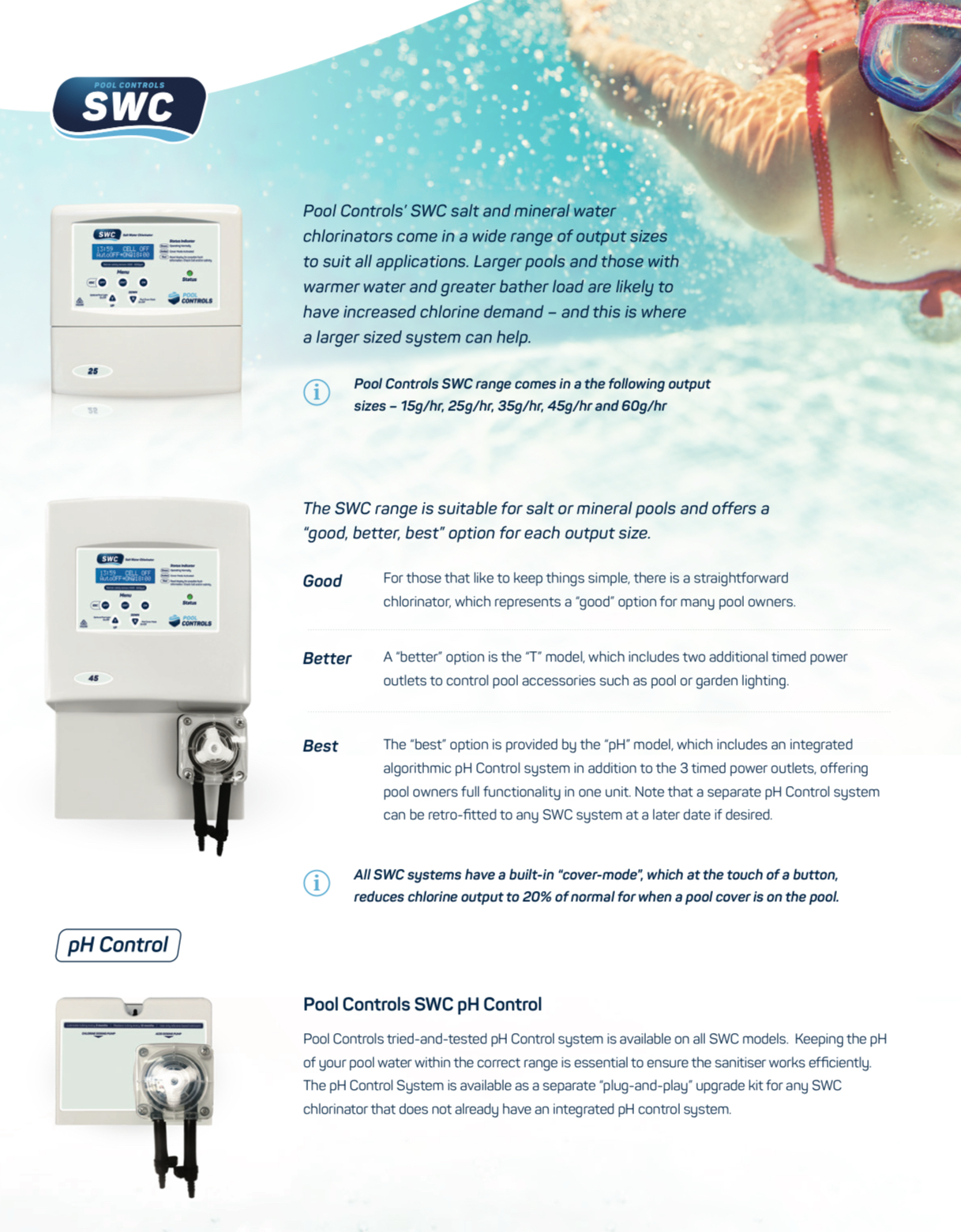

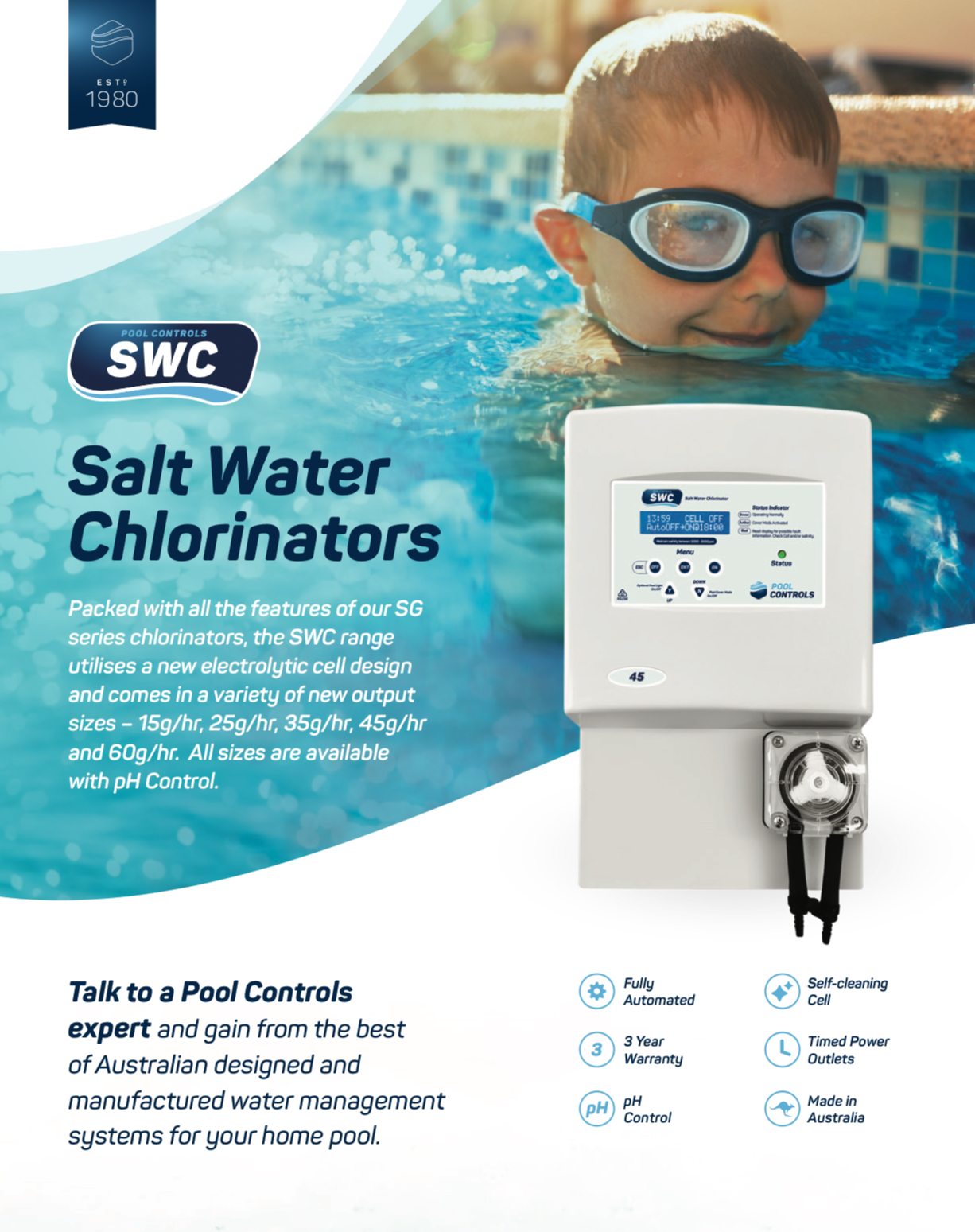

SWC Series Salt Water Chlorinators
Powerful saltwater chlorination with simple controls and upgrade paths
The Pool Controls SWC Series delivers dependable saltwater sanitation across a wide range of outputs — 15, 25, 35, 45 and 60 g/hr. Choose from standard models, “T” variants with extra timed outlets for lights/cleaners, or integrated pH models that automate acid dosing for crystal-clear water with less effort. Every SWC features a reverse-polarity, self-cleaning cell to reduce scaling and maintenance.
Designed in Australia for reliability and ease of use, SWC units also include a convenient Cover Mode that reduces chlorine output to ~20% at the touch of a button when a pool cover is on. Add the optional SWC pH Control module any time, or select a factory-integrated pH model for an all-in-one solution.
Key Features
- Output choices: 15, 25, 35, 45 or 60 g/hr to suit most residential pools.
- Reverse-polarity self-cleaning cell minimises scale and cleaning downtime.
- “T” models add extra timed outlets to power lights/cleaners on schedule.

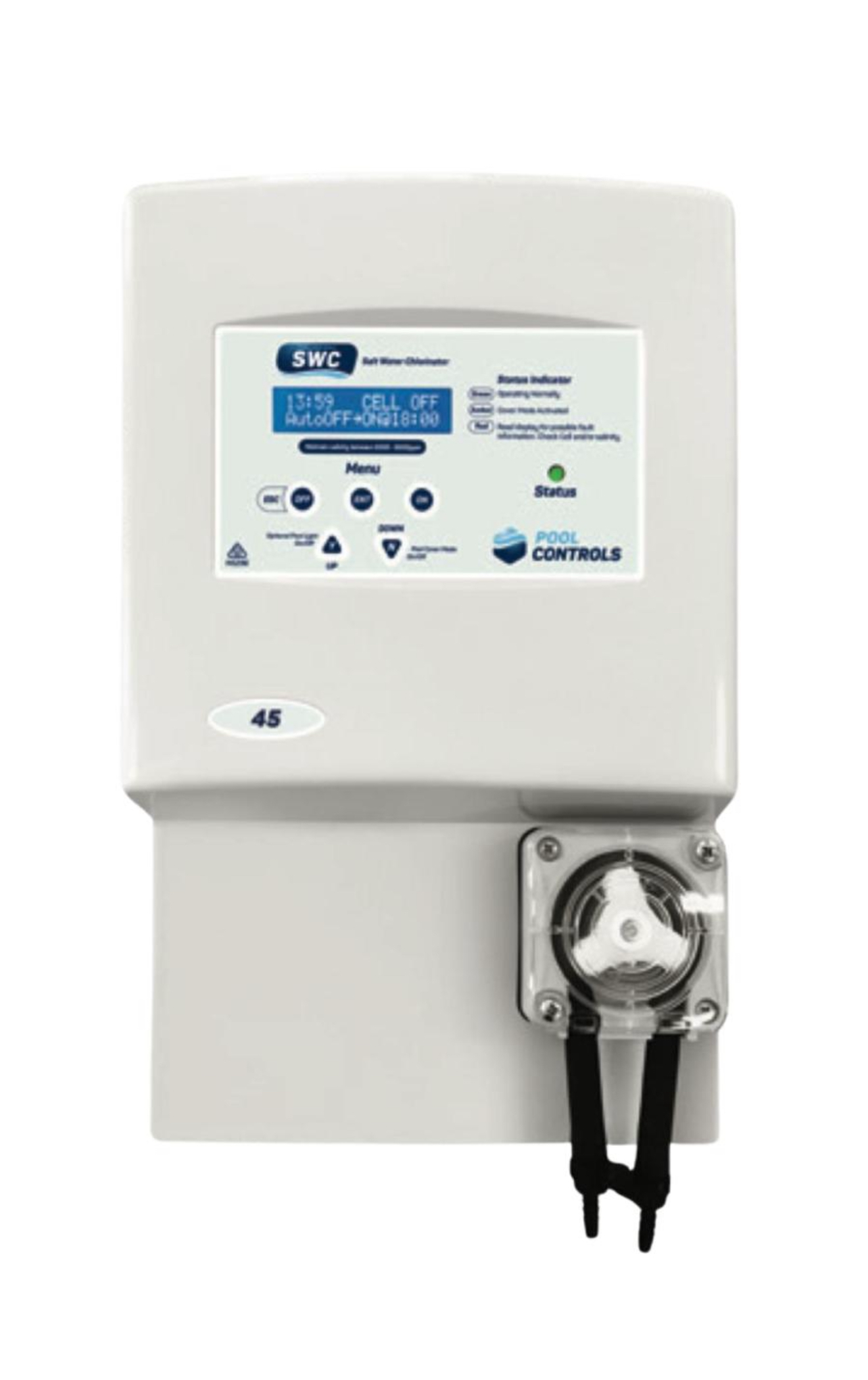

- Integrated pH models automate acid dosing for stable, comfortable water.
- Cover Mode instantly reduces output to ~20% when the pool is covered.
- 3-year warranty for peace of mind (confirm latest terms with Pool Controls).
Model Specifications Table
| Model | Chlorine Output | Timed Outlets | pH Control | Cell Type | Special Modes | Warranty |
|---|---|---|---|---|---|---|
| SWC15 | 15 g/hr | – | Optional (add-on module) | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC15T | 15 g/hr | Yes (additional timed outlets) | Optional | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC15pH | 15 g/hr | Yes (additional timed outlets) | Integrated (peristaltic) | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC25 | 25 g/hr | – | Optional | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC25T | 25 g/hr | Yes (additional timed outlets) | Optional | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC25pH | 25 g/hr | Yes (additional timed outlets) | Integrated (peristaltic) | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC35 | 35 g/hr | – | Optional | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC35T | 35 g/hr | Yes (additional timed outlets) | Optional | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC35pH | 35 g/hr | Yes (additional timed outlets) | Integrated (peristaltic) | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC45 | 45 g/hr | – | Optional | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC45pH | 45 g/hr | Yes (additional timed outlets) | Integrated (peristaltic) | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC60 | 60 g/hr | – | Optional | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
| SWC60pH | 60 g/hr | Yes (additional timed outlets) | Integrated (peristaltic) | Reverse-polarity, self-cleaning | Cover Mode (~20%) | 3 years |
* All specifications obtained through verified Pool Controls sources.
Recommended Pool Sizing (Conservative)
| Model Family | Recommended Max Pool Size* | Notes |
|---|---|---|
| SWC15 / SWC15T / SWC15pH | ≤ 25 kL | Compact pools; step up for heated/full-sun pools |
| SWC25 / SWC25T / SWC25pH | ≤ 45 kL | Typical family pools |
| SWC35 / SWC35T / SWC35pH | ≤ 60 kL | Larger domestic pools |
| SWC45 / SWC45pH | ≤ 75 kL | Higher bather load / shade-limited sites |
| SWC60 / SWC60pH | ≤ 95 kL | Large domestic or semi-commercial |
*Guide is intentionally conservative to ensure the system is overspecified. Increase one output tier for heated pools, heavy use, or full-sun exposure. Final selection should be confirmed by your installer.

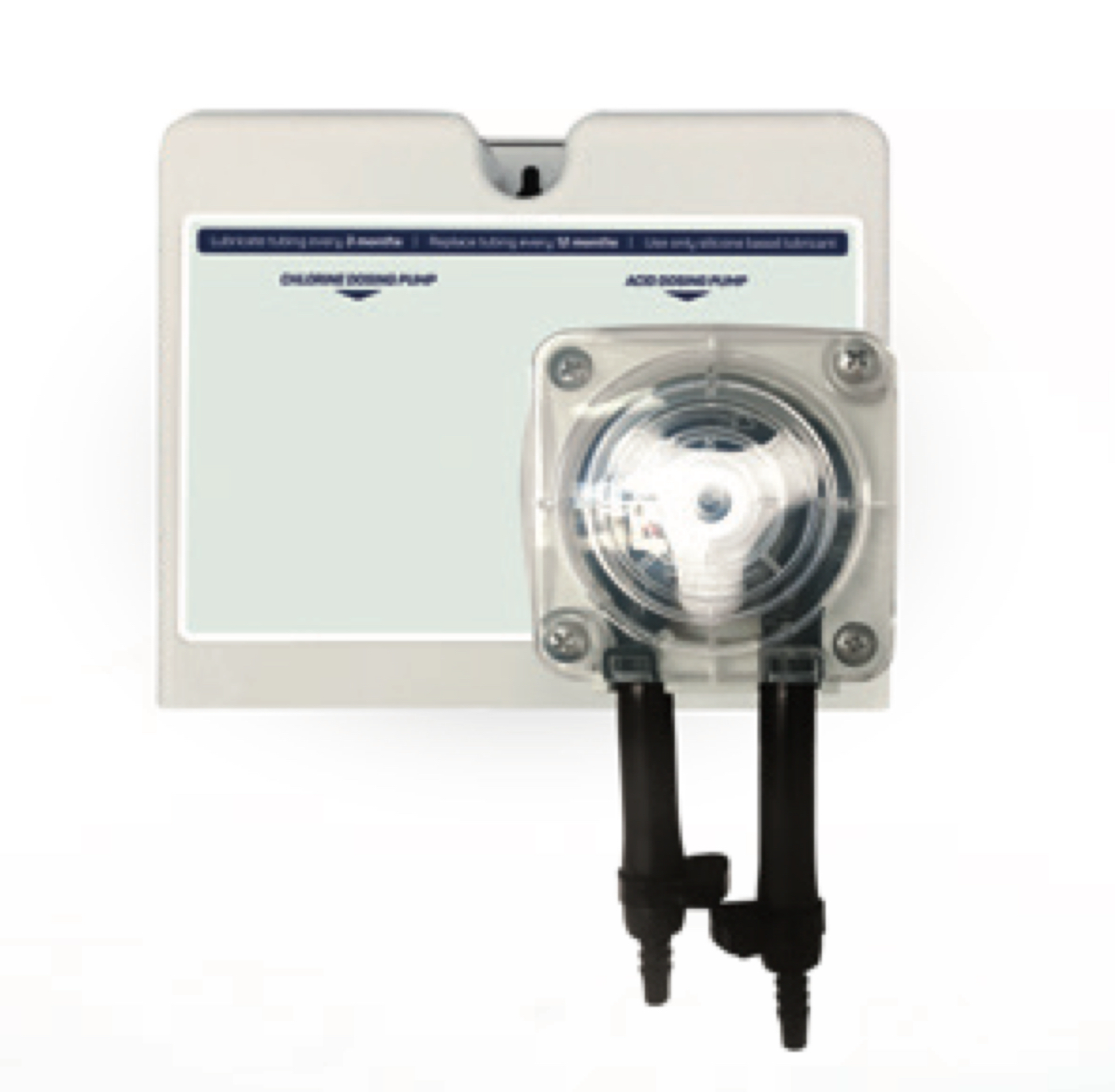

SWC pH Control Module (Add-On)
Not choosing an integrated pH model? Add the SWC pH Control module any time. It uses a peristaltic pump to dose diluted acid automatically for stable pH and clearer, more comfortable water.
| Accessory | Pump Type | Dosing Medium | Integration |
|---|---|---|---|
| SWC pH Control Module | Peristaltic | Diluted pool acid | Connects to SWC; automates pH |
Frequently Asked Questions
Q1: Which SWC model should I choose?
Match chlorine output to pool size and usage, then overspec slightly for headroom. Use the table above as a conservative guide and move up a tier for heated, full-sun or high-use pools.
Q2: What’s the difference between standard, “T” and pH models?
Standard models provide core chlorination. “T” models add extra timed power outlets. pH models include an integrated peristaltic acid doser for automatic pH control.
Q3: Does the SWC work with mineral pools?
Yes — SWC units are suitable for salt or mineral water. Confirm your chosen mineral blend is compatible with chlorine generators and follow salinity recommendations.
Q4: What is Cover Mode?
When your pool cover is on, Cover Mode reduces chlorine output to roughly 20% to prevent over-chlorination and save energy/consumables. Toggle on/off from the controller.
Q5: What is the warranty?
SWC chlorinators are backed by a 3-year warranty. For detailed coverage terms, refer to the latest Pool Controls documentation.
