Waterco Micron Top Mount Filter Range
We sell below minimum advertised price. Inquire to request our best price.
Description

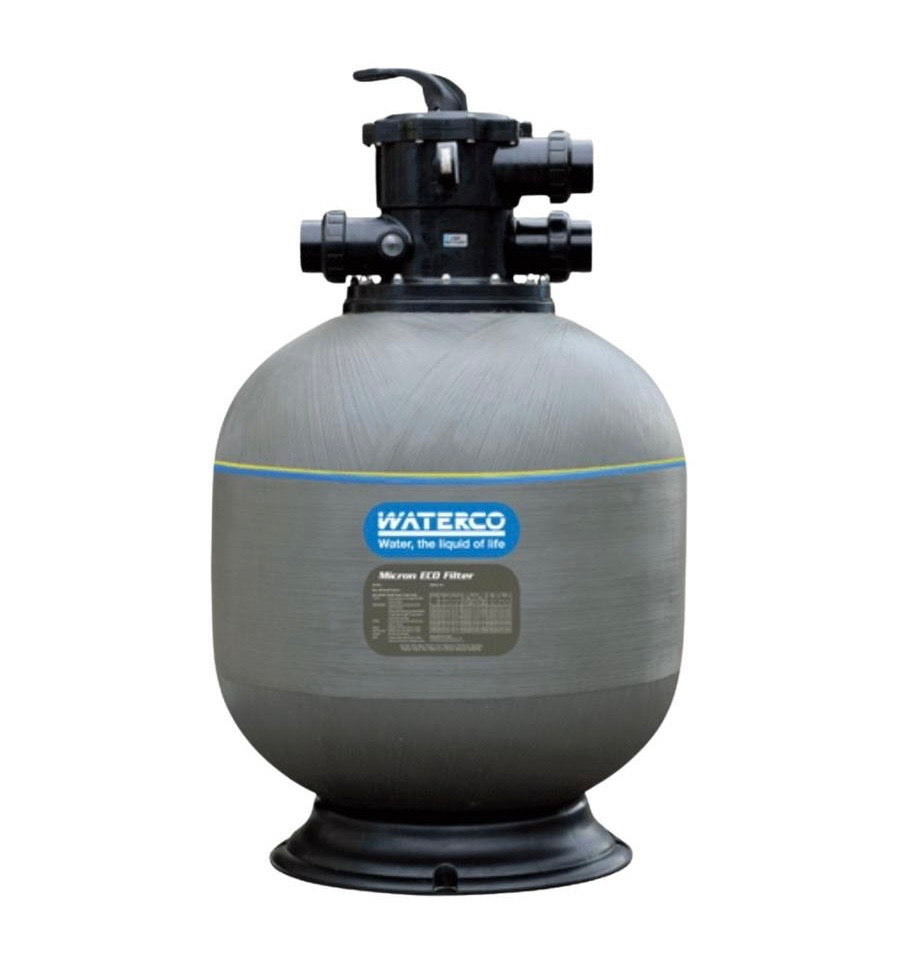

Waterco Micron Top Mount Media Filter
Durable fibreglass construction with efficient depth-bed filtration
The Micron Top Mount is Waterco’s flagship residential/media filter built from corrosion-proof, UV-resistant fibreglass for long service life. Its engineered laterals deliver balanced flow through the media bed for clearer, sparkling water and reliable backwashing—ideal for modern multi-speed and variable-speed pumps.
A compact top-mount multiport valve keeps plumbing neat and service simple, while the seamless tank design minimises head-loss and maintenance. Sizes cover small to large pools, with factory-matched valve diameters for low water-flow resistance.
Key Features
- Filament-wound fibreglass tank – seamless, rust-proof and UV-resistant.
- Hydraulically balanced laterals for even distribution and efficient backwash.
- Top-mount six-position valve for filter/backwash/rinse/waste/recirculate/close.
- Low water-flow resistance for better performance with variable-speed pumps.
- Engineered for sand, glass or zeolite media (media capacities per model).
Warranty
| Component | Residential Warranty | Commercial Warranty |
|---|---|---|
| Filter Tank | 10 Years (Conditional) | 5 Years (1 year full + 4 years pro rata) |
| Multiport Valve | 3 Years | 2 Years |
| Labour | 1 Year | — |
| Other Components | 1 Year | 1 Year |
*Please refer to Waterco’s official Warranty Terms and Conditions for full details.
Model Comparison Table
| Model | Valve Size (mm) | Inner Ø (mm) | Filter Area (m²) | Bed Depth (mm) | Max Flow (L/min) | Max Pool Size* (L) | Backwash Flow (L/min) | Media Volume (L) | Glass Pearl (kg) | Ecopure (kg) | Sand 16/30 (kg) | Zeoplus (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S600INJ | 40 | 600 ≈ 24” | 0.28 | 295 | 226 | 81,000 | 189 | 106 | 171 | 127 | 155 | 127 |
| S602INJ | 50 | 600 ≈ 24” | 0.28 | 295 | 226 | 81,000 | 189 | 106 | 171 | 127 | 155 | 127 |
| S702 | 50 | 700 ≈ 28” | 0.38 | 340 | 308 | 111,000 | 257 | 154 | 248 | 185 | 225 | 185 |
| S800 | 50 | 800 ≈ 32” | 0.50 | 420 | 402 | 145,000 | 335 | 233 | 375 | 279 | 340 | 279 |
| S900 | 50 | 900 ≈ 36” | 0.64 | 420 | 509 | 183,000 | 424 | 322 | 518 | 386 | 470 | 386 |
*Maximum pool size based on a 6-hour turnover (per Waterco documentation). All specifications acquired from verified Waterco sources.
Waterco Micron Top Mount Media Filter
Durable fibreglass construction with efficient depth-bed filtration
The Micron Top Mount is Waterco’s flagship residential/media filter built from corrosion-proof, UV-resistant fibreglass for long service life. Its engineered laterals deliver balanced flow through the media bed for clearer, sparkling water and reliable backwashing—ideal for modern multi-speed and variable-speed pumps.
A compact top-mount multiport valve keeps plumbing neat and service simple, while the seamless tank design minimises head-loss and maintenance. Sizes cover small to large pools, with factory-matched valve diameters for low water-flow resistance.
- Filament-wound fibreglass tank – seamless, rust-proof and UV-resistant.
- Hydraulically balanced laterals for even distribution and efficient backwash.
- Top-mount six-position valve for filter/backwash/rinse/waste/recirculate/close.
- Low water-flow resistance for better performance with variable-speed pumps.
- Engineered for sand, glass or zeolite media (media capacities per model).
| Component | Residential Warranty | Commercial Warranty |
|---|---|---|
| Filter Tank | 10 Years (Conditional) | 5 Years (1 year full + 4 years pro rata) |
| Multiport Valve | 3 Years | 2 Years |
| Labour | 1 Year | — |
| Other Components | 1 Year | 1 Year |
*Please refer to Waterco’s official Warranty Terms and Conditions for full details.
| Model | Valve Size (mm) | Inner Ø (mm) | Filter Area (m²) | Bed Depth (mm) | Max Flow (L/min) | Max Pool Size* (L) | Backwash Flow (L/min) | Media Volume (L) | Glass Pearl (kg) | Ecopure (kg) | Sand 16/30 (kg) | Zeoplus (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S600INJ | 40 | 600 ≈ 24” | 0.28 | 295 | 226 | 81,000 | 189 | 106 | 171 | 127 | 155 | 127 |
| S602INJ | 50 | 600 ≈ 24” | 0.28 | 295 | 226 | 81,000 | 189 | 106 | 171 | 127 | 155 | 127 |
| S702 | 50 | 700 ≈ 28” | 0.38 | 340 | 308 | 111,000 | 257 | 154 | 248 | 185 | 225 | 185 |
| S800 | 50 | 800 ≈ 32” | 0.50 | 420 | 402 | 145,000 | 335 | 233 | 375 | 279 | 340 | 279 |
| S900 | 50 | 900 ≈ 36” | 0.64 | 420 | 509 | 183,000 | 424 | 322 | 518 | 386 | 470 | 386 |
*Maximum pool size based on a 6-hour turnover (per Waterco documentation). All specifications acquired from verified Waterco sources.
Frequently Asked Questions
Q1: What media should I use?
The Micron Top Mount is compatible with silica sand, glass media and zeolite. Media capacities (litres and kilograms) vary by model—see the specification table.
Q2: How do I size the filter?
Use the max flow and max pool size columns (6-hour turnover basis) as a guide. When in doubt, choose the larger model to reduce head-loss and extend backwash intervals.
Q3: What’s the advantage of the ECO (50 mm valve) versions?
The ECO models (e.g., S602, S702, S800, S900) ship with a hydraulically efficient 50 mm multiport valve that reduces overall water-flow resistance and pairs well with variable-speed pumps.
Q4: Is maintenance difficult?
Routine backwashing via the top-mount valve is straightforward. Balanced laterals help lift and clean the media bed evenly, improving performance and extending media life.
