Reltech Platinum Series Pool Pump Series
We sell below minimum advertised price. Inquire to request our best price.
Description

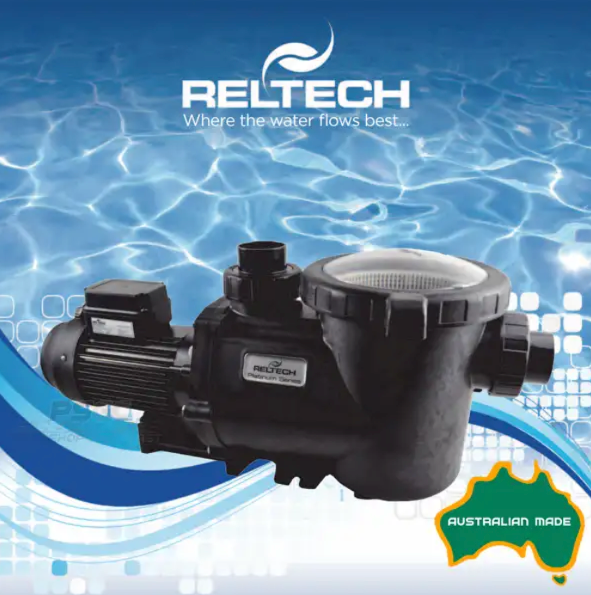

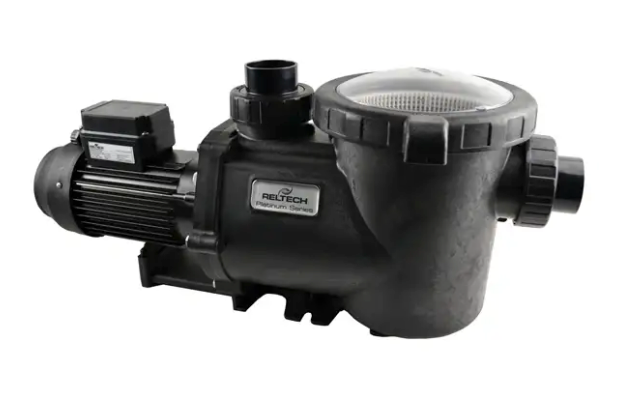

Reltech Platinum PLT Series Pool & Spa Pump
Australian-made high-flow pump engineered for residential and commercial pools
The Reltech Platinum PLT Series is one of the largest Australian-made single-speed pool and spa pumps on the market, engineered for high flow at high pressure to handle modern pool systems with extensive equipment. Reltech designs its own electric motors specifically for these pumps, with a matched motor and pump wet-end optimised for quiet operation, energy efficiency and long service life.
A computer-designed impeller and diffuser deliver rapid priming and a free, even flow, while the totally enclosed fan-cooled motor with built-in thermal overload protects against overheating. Every PLT pump is factory pressure- and performance-tested, fitted with a high-performance silicon carbide mechanical seal for long life in salt and fresh water, and built from corrosion- and UV-resistant materials. Available in four power ratings from 1.0HP to 3.0HP to suit residential pools through to commercial pools, spas, hotels and health clubs.
Key Features
- Australian made – one of the largest Australian-made pool pumps available.
- High-flow performance – computer-designed impeller and diffuser for rapid priming and pool water turnover.
- Quiet operation – matched motor and wet-end with elevated motor stand to reduce noise and vibration (64 dBA @ 1 m).
- Continuous-duty enclosed fan-cooled motor with built-in thermal overload protection.
- Silicon carbide mechanical seal – durable in salt and fresh water.
- Extra-large heavy-duty strainer basket with see-through lid for easy debris removal and longer cleaning intervals.
- Self-aligning ABS quick-connect barrel unions – accept 50 mm pipe ID or 65 mm fitting ID PVC pressure pipe.
- Corrosion- and UV-resistant construction for harsh Australian conditions.
- 2 m power lead fitted (10A 3-pin plug on PLT100/PLT150/PLT200; 15A on PLT300).
- Pressure- and performance-tested in factory; designed to AS 3633.
Sizes Available
- PLT100 – 1.0HP, 10A plug, pools up to ~55,000 L
- PLT150 – 1.5HP, 10A plug, pools up to ~75,000 L
- PLT200 – 2.0HP, 10A plug, pools up to ~100,000 L
- PLT300 – 3.0HP, 15A plug, large residential and commercial applications
Warranty
| Component | Residential Warranty | Commercial Warranty |
|---|---|---|
| Pump Body & Seal Plate | 3 Years | 6 Months (parts & in-field labour*) |
| Motor | 2 Years | 6 Months (parts & in-field labour*) |
| Mechanical Seal & Bearings | 12 Months | 6 Months |
| In-Field Labour | 12 Months* | 6 Months* |
*In-field labour warranty applies in capital city metropolitan areas or within a 20 km radius of an Authorised Reltech Service Agent. Travel and freight charges may apply outside these areas. Replacement of routine maintenance items (O-rings, gaskets, seals, bearings) is not covered. Refer to Reltech’s official Limited Warranty Terms and Conditions for full details.
Model Comparison Table
| Model | Horsepower | Flow Rate (LPM @ 8 m head) | Recommended Pool Size | Power Supply | Pipe Connection | Noise | Warranty |
|---|---|---|---|---|---|---|---|
| PLT100 | 1.0HP | 330 | Up to ~55,000 L | 240V / 10A | 50 mm / 65 mm | 64 dBA | 3 yrs |
| PLT150 | 1.5HP | 420 | Up to ~75,000 L | 240V / 10A | 50 mm / 65 mm | 64 dBA | 3 yrs |
| PLT200 | 2.0HP | 520 | Up to ~100,000 L | 240V / 10A | 50 mm / 65 mm | 64 dBA | 3 yrs |
| PLT300 | 3.0HP | Contact us | Large / Commercial | 240V / 15A | 50 mm / 65 mm | 64 dBA | 3 yrs |

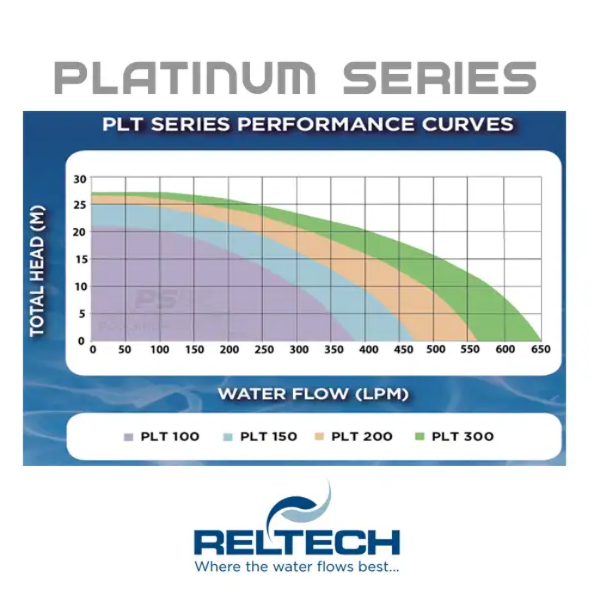

*Flow rates measured at 8 m total dynamic head. Pool size recommendations are indicative and depend on pipework, head losses and turnover targets. PLT300 requires a dedicated 15A circuit. All specifications acquired from the official Reltech Platinum Series Manual and verified Reltech retailer sources.
Reltech Platinum PLT Series Pool & Spa Pump
Australian-made high-flow pump engineered for residential and commercial pools
The Reltech Platinum PLT Series is one of the largest Australian-made single-speed pool and spa pumps on the market, engineered for high flow at high pressure to handle modern pool systems with extensive equipment. Reltech designs its own electric motors specifically for these pumps, with a matched motor and pump wet-end optimised for quiet operation, energy efficiency and long service life.
A computer-designed impeller and diffuser deliver rapid priming and a free, even flow, while the totally enclosed fan-cooled motor with built-in thermal overload protects against overheating. Every PLT pump is factory pressure- and performance-tested, fitted with a high-performance silicon carbide mechanical seal for long life in salt and fresh water, and built from corrosion- and UV-resistant materials. Available in four power ratings from 1.0HP to 3.0HP to suit residential pools through to commercial pools, spas, hotels and health clubs.
- Australian made – one of the largest Australian-made pool pumps available.
- High-flow performance – computer-designed impeller and diffuser for rapid priming and pool water turnover.
- Quiet operation – matched motor and wet-end with elevated motor stand to reduce noise and vibration (64 dBA @ 1 m).
- Continuous-duty enclosed fan-cooled motor with built-in thermal overload protection.
- Silicon carbide mechanical seal – durable in salt and fresh water.
- Extra-large heavy-duty strainer basket with see-through lid for easy debris removal and longer cleaning intervals.
- Self-aligning ABS quick-connect barrel unions – accept 50 mm pipe ID or 65 mm fitting ID PVC pressure pipe.
- Corrosion- and UV-resistant construction for harsh Australian conditions.
- 2 m power lead fitted (10A 3-pin plug on PLT100/PLT150/PLT200; 15A on PLT300).
- Pressure- and performance-tested in factory; designed to AS 3633.
- PLT100 – 1.0HP, 10A plug, pools up to ~55,000 L
- PLT150 – 1.5HP, 10A plug, pools up to ~75,000 L
- PLT200 – 2.0HP, 10A plug, pools up to ~100,000 L
- PLT300 – 3.0HP, 15A plug, large residential and commercial applications
| Component | Residential Warranty | Commercial Warranty |
|---|---|---|
| Pump Body & Seal Plate | 3 Years | 6 Months (parts & in-field labour*) |
| Motor | 2 Years | 6 Months (parts & in-field labour*) |
| Mechanical Seal & Bearings | 12 Months | 6 Months |
| In-Field Labour | 12 Months* | 6 Months* |
*In-field labour warranty applies in capital city metropolitan areas or within a 20 km radius of an Authorised Reltech Service Agent. Travel and freight charges may apply outside these areas. Replacement of routine maintenance items (O-rings, gaskets, seals, bearings) is not covered. Refer to Reltech’s official Limited Warranty Terms and Conditions for full details.
| Model | Horsepower | Flow Rate (LPM @ 8 m head) | Recommended Pool Size | Power Supply | Pipe Connection | Noise | Warranty |
|---|---|---|---|---|---|---|---|
| PLT100 | 1.0HP | 330 | Up to ~55,000 L | 240V / 10A | 50 mm / 65 mm | 64 dBA | 3 yrs |
| PLT150 | 1.5HP | 420 | Up to ~75,000 L | 240V / 10A | 50 mm / 65 mm | 64 dBA | 3 yrs |
| PLT200 | 2.0HP | 520 | Up to ~100,000 L | 240V / 10A | 50 mm / 65 mm | 64 dBA | 3 yrs |
| PLT300 | 3.0HP | Contact us | Large / Commercial | 240V / 15A | 50 mm / 65 mm | 64 dBA | 3 yrs |
*Flow rates measured at 8 m total dynamic head. Pool size recommendations are indicative and depend on pipework, head losses and turnover targets. PLT300 requires a dedicated 15A circuit. All specifications acquired from the official Reltech Platinum Series Manual and verified Reltech retailer sources.
Frequently Asked Questions
Q1: How do I choose the right model for my pool?
Match the model to your pool volume using the Recommended Pool Size column, then check that your pipework, filter and any heater/chlorinator can handle the rated flow. For pools above 100,000 L, or commercial/spa applications with high head loss, the PLT300 is recommended — please contact us so we can confirm sizing for your specific setup.
Q2: Is the PLT Series compatible with salt water and chlorinators?
Yes. The PLT Series is fitted with a high-performance silicon carbide mechanical seal designed for long life in both salt and fresh water, and is designed to operate with most chlorinators, heaters and other pool equipment.
Q3: What pipe size do I need?
The self-aligning ABS barrel unions accept 50 mm pipe ID or 65 mm fitting ID PVC pressure pipe on both inlet and outlet. Smaller-ID piping is not recommended and may damage the pump and void warranty. A straight section of pipe at least 300 mm long should be installed before the inlet for smoother, quieter operation.
Q4: What power supply does the pump need?
All PLT pumps run on 240V 50Hz. The PLT100, PLT150 and PLT200 are supplied with a 2 m flex and 10A 3-pin plug. The PLT300 (3.0HP) is a 15A model and requires a dedicated 15A outlet — a standard 10A power point is not suitable.
Q5: Are these pumps suitable for commercial use?
Yes. The PLT Series is designed for both residential pools and commercial pools and spas including hotels, health clubs and hydrotherapy. Note that commercial installations carry a shorter warranty period (6 months parts and in-field labour) — see the warranty table for full terms.
Q6: Looking for an energy-efficient variable-speed alternative?
The PLT Series is a single-speed pump optimised for high flow and reliability. If you’re after maximum energy savings and multi-speed control, ask us about the Reltech Ecoflo Variable-Speed range (PLT-V3 / V5 / V8), which carries 7- and 8-star MEPS ratings.
