Description
Spa Electrics Photon GKX LED Pool Light Series
Surface mount brilliance. Built for concrete pools.
The Photon GKX Series by Spa Electrics offers an advanced LED lighting solution tailored for concrete pool applications. Designed for both new installations and retrofits, the GKX models feature a compact surface-mount design that delivers powerful, energy-efficient lighting and a modern aesthetic. Australian-made, each unit comes ready to install with all required accessories, including a mounting ring, pebble ring, and cable sealant.
Choose from RGB+White Multi Plus, Blue (465nm), or White (4000K) to suit your pool’s design. Engineered with UV-stabilised polycarbonate and rated IPX8 for durability, the Photon GKX lights provide brilliant underwater illumination with style and reliability.
Key Features
- Surface-mounted LED design for concrete pool installations.

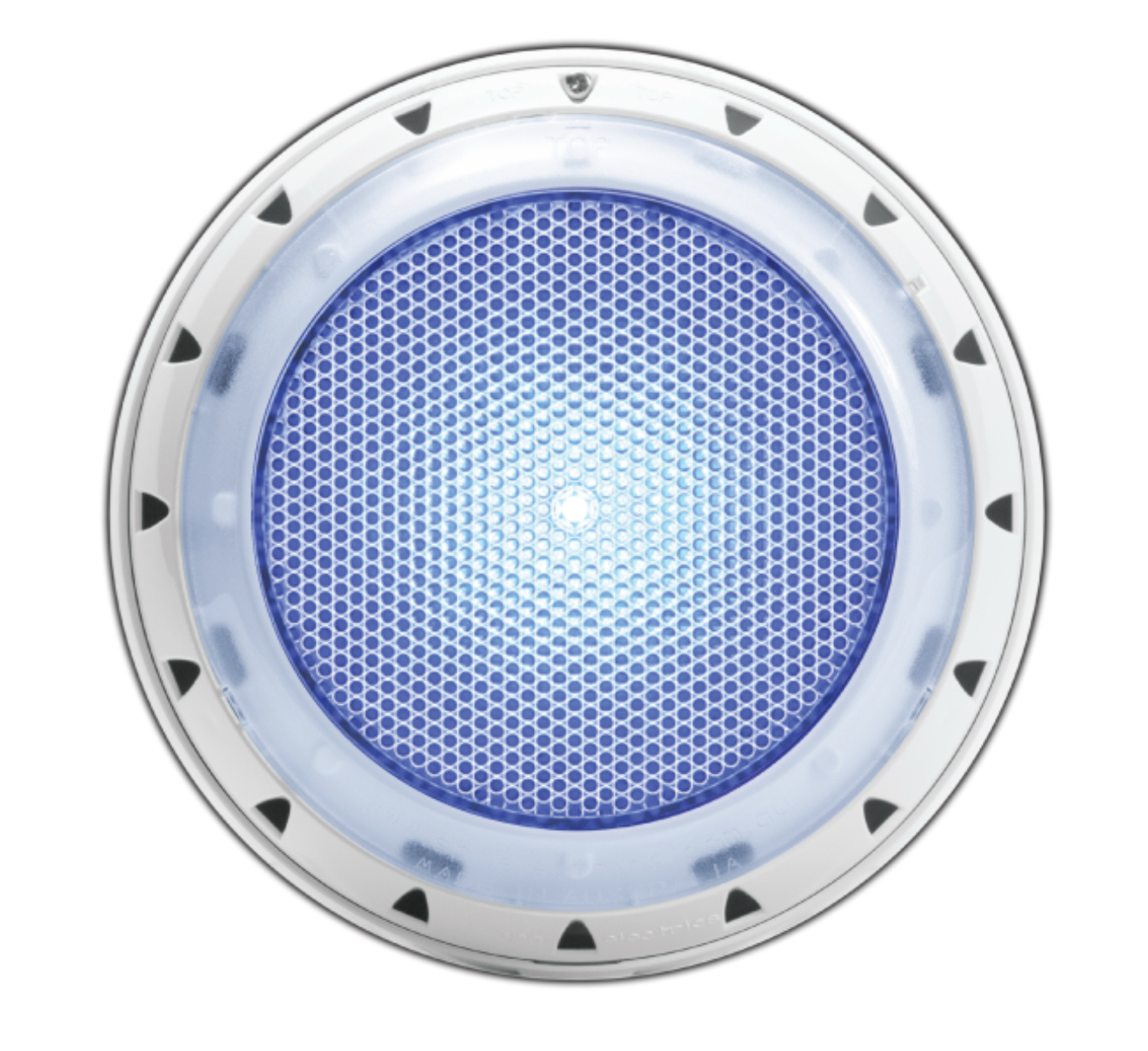

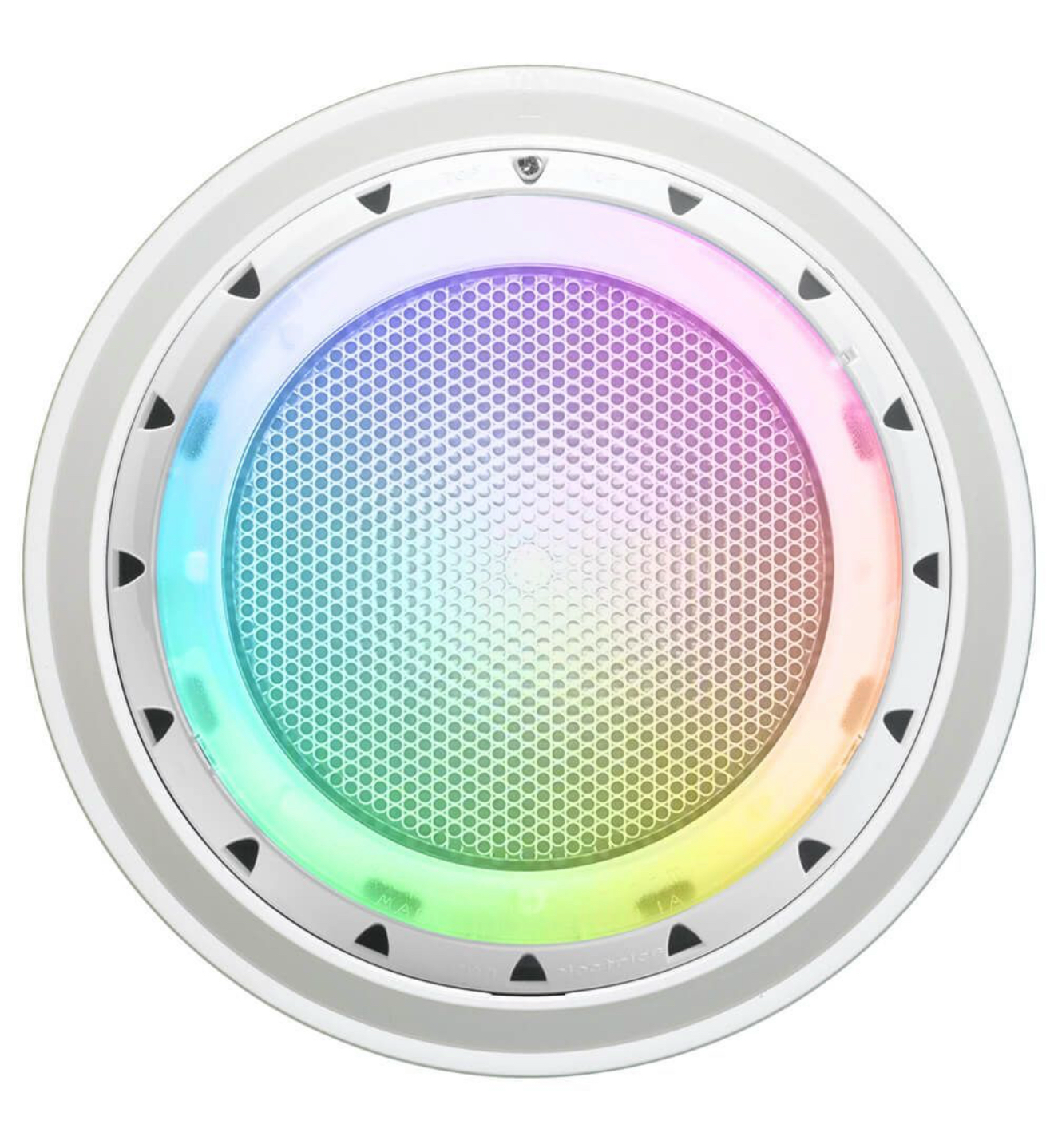

- RGB+White, Blue (465nm), or White (4000K) LED colour options.
- Low-voltage 12V AC operation using just 12W power.

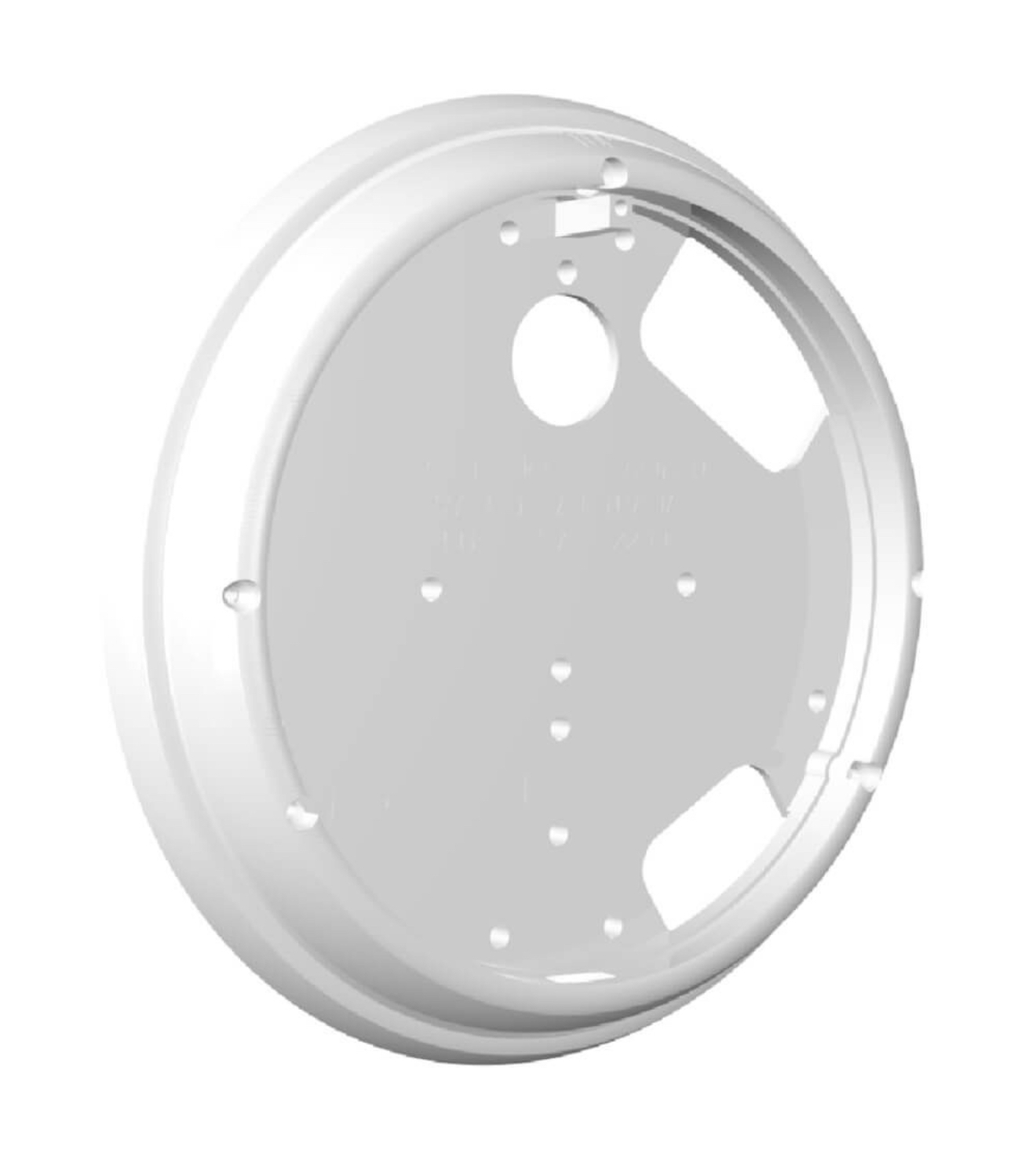

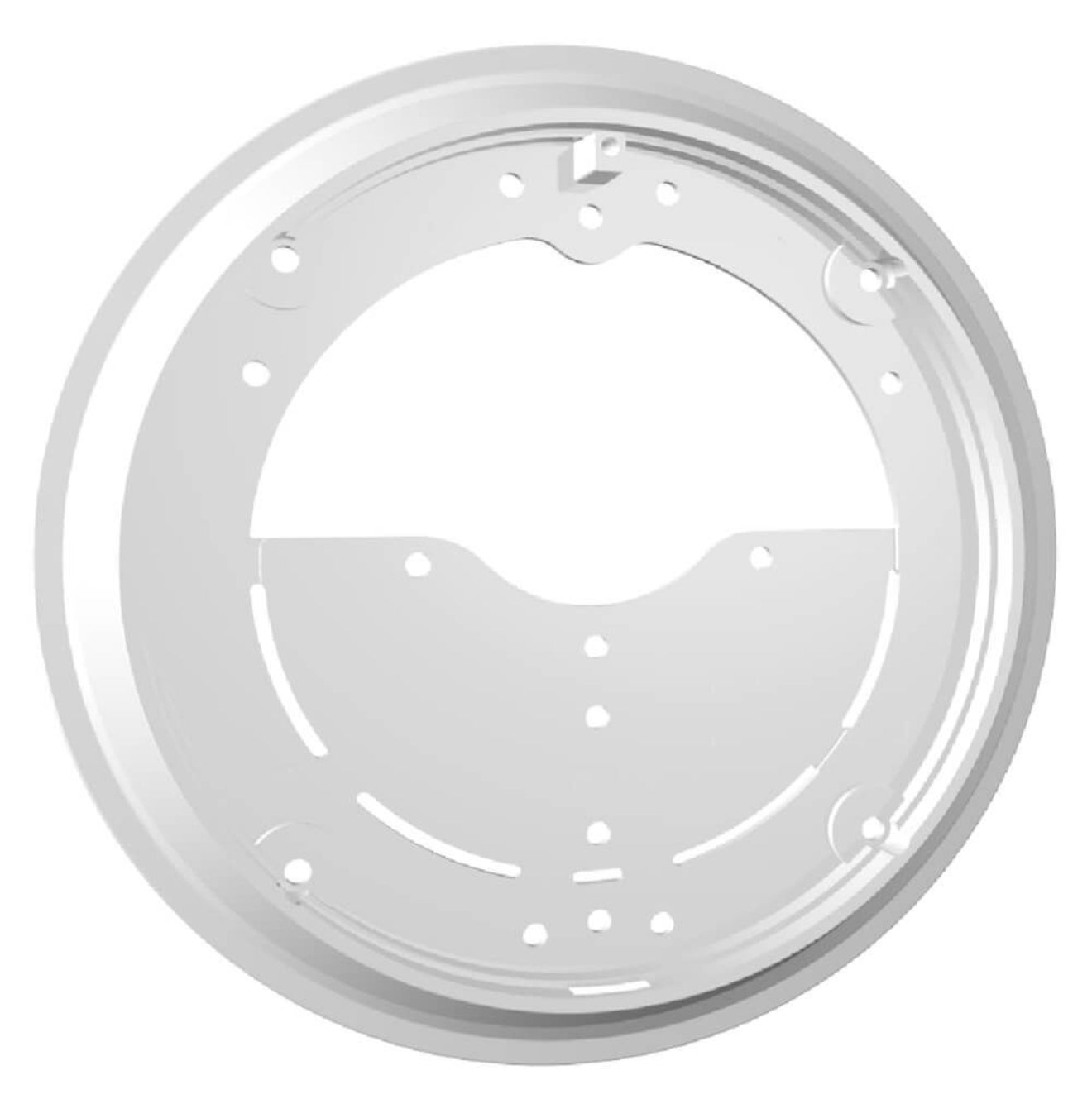

- Includes mounting ring, pebble ring, and tube of cable sealant.
- Compatible with iRIS, Connect 10, IntelliTouch®, and Zodiac/Jandy RS (Multi Plus only).
- 20m cable attached for direct-to-transformer setup.
- UV-stabilised body with IPX8 waterproof rating.
- Manufactured in Australia for long-lasting performance.
Model Comparison Table
| Model | Light Colour | Voltage | Wattage | Installation Type | IP Rating | Control Options | Body Material |
|---|---|---|---|---|---|---|---|
| Photon GKX Multi Plus | RGB + White (Multi Plus) | 12V AC | 12W | Concrete Surface Mount | IPX8 | Wall Switch / iRIS / Connect 10 / Zodiac RS / IntelliTouch | UV-Stabilised Polycarbonate |
| Photon GKX Blue | Blue (465nm) | 12V AC | 12W | Concrete Surface Mount | IPX8 | Wall Switch Only | UV-Stabilised Polycarbonate |
| Photon GKX White | White (4000K) | 12V AC | 12W | Concrete Surface Mount | IPX8 | Wall Switch Only | UV-Stabilised Polycarbonate |
*Specifications sourced from Spa Electrics technical data and verified distributor listings as of September 2025.
Optional Mounting Kits
The Photon GK Series is designed to suit a wide variety of pool surfaces. For installations into fibreglass or vinyl pools, Spa Electrics offers optional mounting kits to ensure a secure and professional fit. Each kit is tailored to the pool surface material and ensures optimal sealing and long-term durability.
Warranty
| Component | Domestic Installations | Commercial Installations |
|---|---|---|
| Photon GKX Light (All Models) | 12 Months | 12 Months |
| Installation Accessories | 12 Months | 12 Months |
Warranty applies to products installed in accordance with Spa Electrics guidelines. Refer to manufacturer documentation for full warranty terms and claim procedures.
Spa Electrics Photon GKX LED Pool Light Series
Surface mount brilliance. Built for concrete pools.
The Photon GKX Series by Spa Electrics offers an advanced LED lighting solution tailored for concrete pool applications. Designed for both new installations and retrofits, the GKX models feature a compact surface-mount design that delivers powerful, energy-efficient lighting and a modern aesthetic. Australian-made, each unit comes ready to install with all required accessories, including a mounting ring, pebble ring, and cable sealant.
Choose from RGB+White Multi Plus, Blue (465nm), or White (4000K) to suit your pool’s design. Engineered with UV-stabilised polycarbonate and rated IPX8 for durability, the Photon GKX lights provide brilliant underwater illumination with style and reliability.
- Surface-mounted LED design for concrete pool installations.
- RGB+White, Blue (465nm), or White (4000K) LED colour options.
- Low-voltage 12V AC operation using just 12W power.
- Includes mounting ring, pebble ring, and tube of cable sealant.
- Compatible with iRIS, Connect 10, IntelliTouch®, and Zodiac/Jandy RS (Multi Plus only).
- 20m cable attached for direct-to-transformer setup.
- UV-stabilised body with IPX8 waterproof rating.
- Manufactured in Australia for long-lasting performance.
| Model | Light Colour | Voltage | Wattage | Installation Type | IP Rating | Control Options | Body Material |
|---|---|---|---|---|---|---|---|
| Photon GKX Multi Plus | RGB + White (Multi Plus) | 12V AC | 12W | Concrete Surface Mount | IPX8 | Wall Switch / iRIS / Connect 10 / Zodiac RS / IntelliTouch | UV-Stabilised Polycarbonate |
| Photon GKX Blue | Blue (465nm) | 12V AC | 12W | Concrete Surface Mount | IPX8 | Wall Switch Only | UV-Stabilised Polycarbonate |
| Photon GKX White | White (4000K) | 12V AC | 12W | Concrete Surface Mount | IPX8 | Wall Switch Only | UV-Stabilised Polycarbonate |
*Specifications sourced from Spa Electrics technical data and verified distributor listings as of September 2025.
The Photon GK Series is designed to suit a wide variety of pool surfaces. For installations into fibreglass or vinyl pools, Spa Electrics offers optional mounting kits to ensure a secure and professional fit. Each kit is tailored to the pool surface material and ensures optimal sealing and long-term durability.
| Component | Domestic Installations | Commercial Installations |
|---|---|---|
| Photon GKX Light (All Models) | 12 Months | 12 Months |
| Installation Accessories | 12 Months | 12 Months |
Warranty applies to products installed in accordance with Spa Electrics guidelines. Refer to manufacturer documentation for full warranty terms and claim procedures.
Frequently Asked Questions
1. Is the Photon GKX compatible with concrete, vinyl, or fibreglass pools?
The GKX is specifically designed for concrete pools only. It is not compatible with vinyl or fibreglass pool types.
2. What size niche or mounting does the GKX light require?
The Photon GKX comes with a purpose-built mounting ring and pebble ring included in the box. It’s designed for flush mounting into standard concrete wall niches and does not require custom installation hardware.
3. How long is the cable supplied with each GKX light?
Each Photon GKX light includes a standard 20m cable, suitable for most residential pool setups. Cable sealant is also provided to ensure waterproof integrity.
4. Can I upgrade an existing single-colour GKX to a Multi PLUS model later?
Yes, you can upgrade to the Photon GKX Multi PLUS model later, but it will involve swapping the entire light fitting. The upgrade is physical rather than software-based.
5. What is the main difference between the Multi PLUS and standard blue/white GKX lights?
The Multi PLUS version offers vibrant multi-colour lighting with programmable effects, while the Blue and White models are single-colour lights designed for users who prefer a consistent aesthetic or want to match existing lighting setups.
