Description

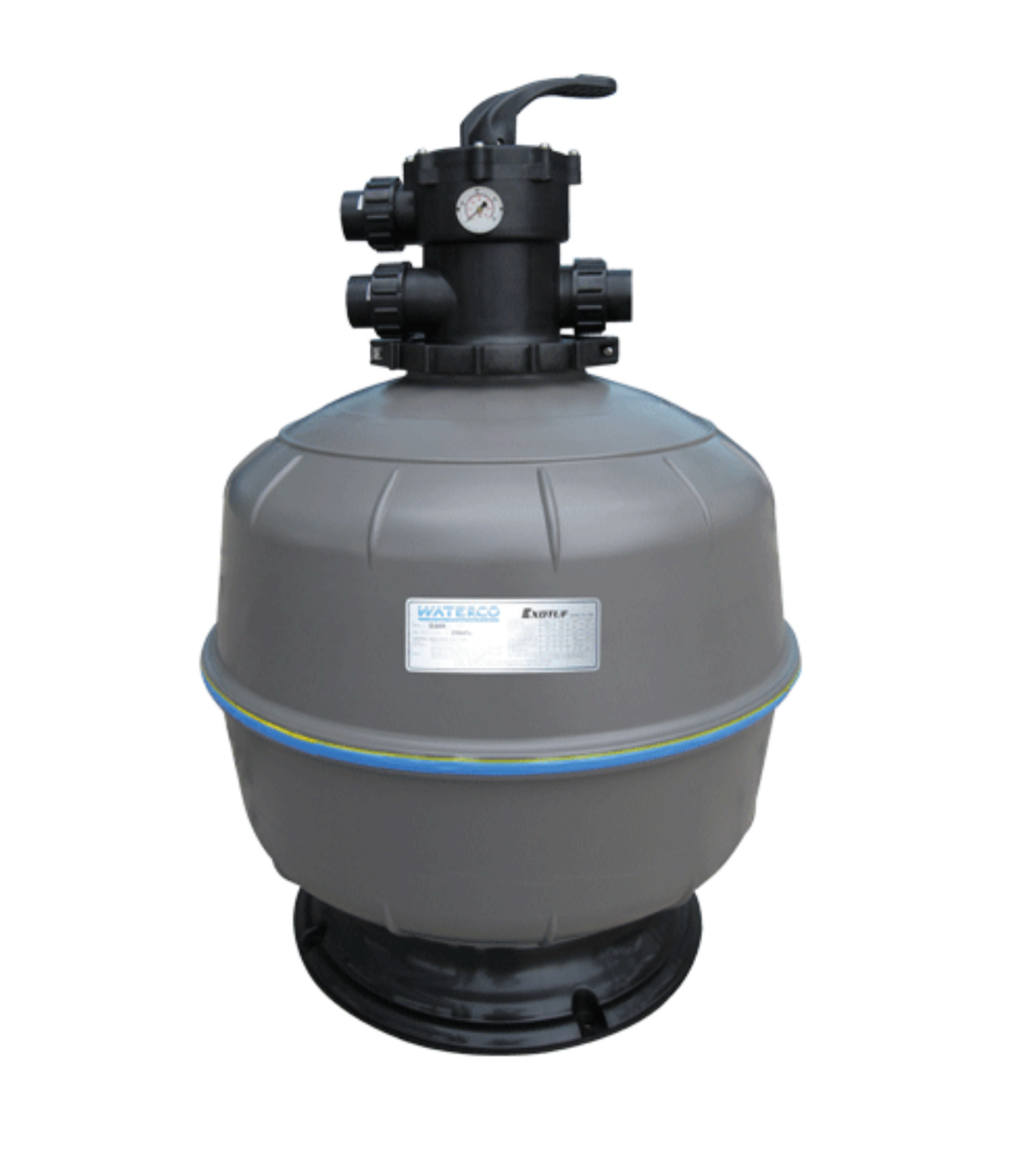

Waterco Exotuf Media Filter Range
Strong, simple and built for modern Aussie pools
The Exotuf range is engineered for reliability with a precision injection-moulded tank and an easy-to-use multiport valve. It’s a low-maintenance choice that pairs perfectly with today’s high-flow pumps and in-floor systems, delivering clean, sparkling water with straightforward filter/backwash/rinse operation and clear sight-glass inspection.
Choose the size to suit your pool (E400 to E602), load with your preferred media (sand, glass, or zeolite) and enjoy confident performance backed by Waterco’s 10-year tank warranty. Local parts, service and support keep ownership simple.
Key Features
- Injection-moulded tank for superior structural strength and UV/corrosion resistance.
- 250 kPa working pressure — ideal for high-performance pumps and in-floor cleaning.
- 40 mm multiport as standard; E602 with 50 mm valve for lower head loss on larger systems.
- Hydraulically balanced internals for efficient filtration and effective backwashing.
- Compatible with sand, crushed glass, Glass Pearl and zeolite media.
- Clear sight glass and pressure gauge to simplify routine maintenance.
- 10-year tank warranty (see Warranty section below for details).
Model Comparison Table
| Model | Valve Size (mm) | Inner Ø (mm) | Filter Area (m²) | Bed Depth (mm) | Max Flow (L/min) | Max Pool Size (L)* | Min Backwash (L/min) | Media Volume (L) | Glass Pearl (kg) | Crushed Glass 0.5–1.0 (kg) | Crushed Glass 0.8–1.5 (kg) | Sand 16/30 (kg) | Zeolite 1–2.2 (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E400 | 40 | 400 | 0.13 | 160 | 100 | 36,200 | 94 | 27 | 44 | 36 | 37 | 40 | 33 |
| E500 | 40 | 500 | 0.20 | 250 | 157 | 56,500 | 131 | 62 | 100 | 83 | 84 | 90 | 75 |
| E600 | 40 | 600 | 0.28 | 250 | 226 | 81,000 | 189 | 89 | 144 | 118 | 120 | 130 | 107 |
| E602 | 50 | 600 | 0.28 | 250 | 226 | 81,000 | 189 | 89 | 144 | 118 | 120 | 130 | 107 |
*Maximum pool size based on a 6-hour turnover as per Waterco guidance. Values and capacities validated via Waterco’s current Exotuf brochure.
Warranty (Australia)
- ExoTUF filter range: 10 years (conditional)
- Filter tank: 10 years
- Multiport valve: 2 years
- Other components: 1 year
- Labour: 1 year
Always refer to Waterco’s latest warranty terms and conditions.
Waterco Exotuf Media Filter Range
Strong, simple and built for modern Aussie pools
The Exotuf range is engineered for reliability with a precision injection-moulded tank and an easy-to-use multiport valve. It’s a low-maintenance choice that pairs perfectly with today’s high-flow pumps and in-floor systems, delivering clean, sparkling water with straightforward filter/backwash/rinse operation and clear sight-glass inspection.
Choose the size to suit your pool (E400 to E602), load with your preferred media (sand, glass, or zeolite) and enjoy confident performance backed by Waterco’s 10-year tank warranty. Local parts, service and support keep ownership simple.
- Injection-moulded tank for superior structural strength and UV/corrosion resistance.
- 250 kPa working pressure — ideal for high-performance pumps and in-floor cleaning.
- 40 mm multiport as standard; E602 with 50 mm valve for lower head loss on larger systems.
- Hydraulically balanced internals for efficient filtration and effective backwashing.
- Compatible with sand, crushed glass, Glass Pearl and zeolite media.
- Clear sight glass and pressure gauge to simplify routine maintenance.
- 10-year tank warranty (see Warranty section below for details).
| Model | Valve Size (mm) | Inner Ø (mm) | Filter Area (m²) | Bed Depth (mm) | Max Flow (L/min) | Max Pool Size (L)* | Min Backwash (L/min) | Media Volume (L) | Glass Pearl (kg) | Crushed Glass 0.5–1.0 (kg) | Crushed Glass 0.8–1.5 (kg) | Sand 16/30 (kg) | Zeolite 1–2.2 (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E400 | 40 | 400 | 0.13 | 160 | 100 | 36,200 | 94 | 27 | 44 | 36 | 37 | 40 | 33 |
| E500 | 40 | 500 | 0.20 | 250 | 157 | 56,500 | 131 | 62 | 100 | 83 | 84 | 90 | 75 |
| E600 | 40 | 600 | 0.28 | 250 | 226 | 81,000 | 189 | 89 | 144 | 118 | 120 | 130 | 107 |
| E602 | 50 | 600 | 0.28 | 250 | 226 | 81,000 | 189 | 89 | 144 | 118 | 120 | 130 | 107 |
*Maximum pool size based on a 6-hour turnover as per Waterco guidance. Values and capacities validated via Waterco’s current Exotuf brochure.
- ExoTUF filter range: 10 years (conditional)
- Filter tank: 10 years
- Multiport valve: 2 years
- Other components: 1 year
- Labour: 1 year
Always refer to Waterco’s latest warranty terms and conditions.
Frequently Asked Questions
Q1: Which model should I choose?
Match the model to your pool volume and pump flow. The table above lists Max Pool Size and Max Flow for each model. If in doubt, choose the next size up to reduce head loss and extend backwash intervals.
Q2: What media do you recommend?
Exotuf works with silica sand, crushed glass (two grades), Glass Pearl and zeolite. Choose based on clarity goals and maintenance preference—see media weights in the table for each model.
Q3: Is the valve 40 mm or 50 mm?
E400, E500 and E600 include a 40 mm multiport. The E602 ships with a 50 mm valve for larger pipework/flows.
Q4: What is the working pressure and temperature?
Rated to 250 kPa working pressure and 50 °C maximum water temperature.
