Waterco Exotuf Plus Media Filter Range
We sell below minimum advertised price. Inquire to request our best price.
Description

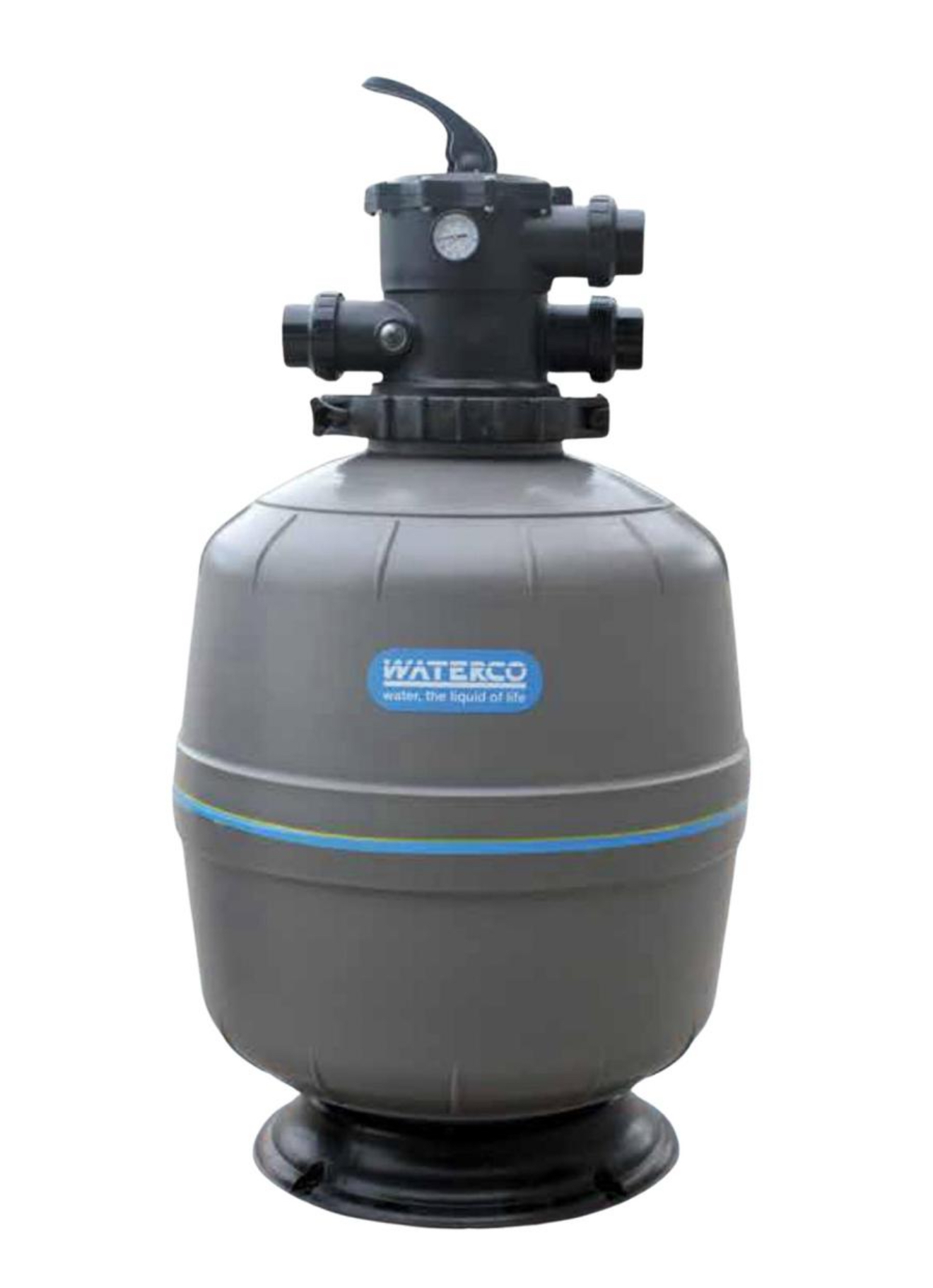

Waterco Exotuf Plus Top Mount Media Filter
Stronger filtration. Smarter savings.
The Waterco Exotuf Plus is a premium top-mount filter built to handle the cyclic pressures of modern pools while delivering real savings. Featuring hydraulically-efficient fish tail laterals, it reduces backwash time and water usage by up to 30 %, making it ideal for energy-conscious setups and low-powered pumps.
You’ll also get corrosion- and UV-resistant construction, a high pressure rating (350 kPa), and a 360° clamp multiport valve that simplifies installation and service. Depth filtration ensures fine particles are trapped within the media, enhancing clarity without pushing stress onto the system. If you're after performance, durability and water-/energy-efficiency, Exotuf Plus delivers.
Key Features
- Reinforced fibreglass tank construction
- Deeper filter bed for higher dirt-holding capacity
- Top mount multiport valve with simple operation
- High-performance lateral system for even water flow
- Ideal for large residential and semi-commercial pools

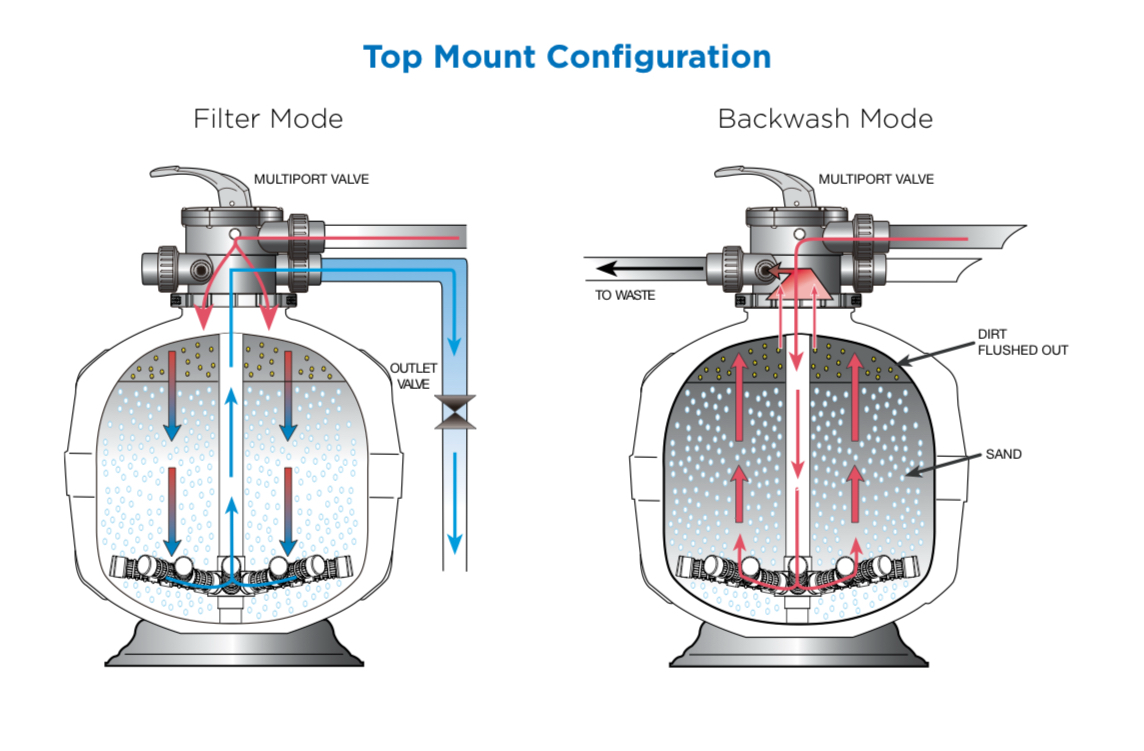

- Fish tail laterals for more efficient backwashing and water flow
Model Comparison Table
| Model | Valve Size (mm) | Inner Dia. (mm) | Filter Area (m²) | Bed Depth (mm) | Max. Flow (L/min) | Max. Pool Size (L) | Min. Backwash (L/min) | Media Volume (L) | Glass Pearl (kg) | Eco Pure 0.815–1.5 (kg) | Sand 16/30 (kg) | Zeolite 1–2.2 (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E600 Plus | 40 | 600 | 0.28 | 360 | 226 | 81,360 | 189 | 120 | 194 | 162 | 175 | 144 |
| E602 Plus | 50 | 600 | 0.28 | 360 | 226 | 81,360 | 189 | 120 | 194 | 162 | 175 | 144 |
| E702 Plus | 50 | 700 | 0.38 | 430 | 308 | 110,800 | 257 | 185 | 298 | 250 | 270 | 222 |
*All specifications taken directly from official Waterco sources.
Warranty
| Component | Domestic Installations | Commercial Installations |
|---|---|---|
| Exotuf Filters | 10 Years (conditional) | 5 Years (conditional) |
| Filter Tank | 10 Years | 5 Years (1 year full + 4 years pro rata) |
| Multiport Valve | 2 Years | 2 Years |
| Other Components | 1 Year | 1 Year |
Please refer to Waterco’s full warranty terms and conditions for additional details.
Waterco Exotuf Plus Top Mount Media Filter
Stronger filtration. Smarter savings.
The Waterco Exotuf Plus is a premium top-mount filter built to handle the cyclic pressures of modern pools while delivering real savings. Featuring hydraulically-efficient fish tail laterals, it reduces backwash time and water usage by up to 30 %, making it ideal for energy-conscious setups and low-powered pumps.
You’ll also get corrosion- and UV-resistant construction, a high pressure rating (350 kPa), and a 360° clamp multiport valve that simplifies installation and service. Depth filtration ensures fine particles are trapped within the media, enhancing clarity without pushing stress onto the system. If you're after performance, durability and water-/energy-efficiency, Exotuf Plus delivers.
- Reinforced fibreglass tank construction
- Deeper filter bed for higher dirt-holding capacity
- Top mount multiport valve with simple operation
- High-performance lateral system for even water flow
- Ideal for large residential and semi-commercial pools
- Fish tail laterals for more efficient backwashing and water flow
| Model | Valve Size (mm) | Inner Dia. (mm) | Filter Area (m²) | Bed Depth (mm) | Max. Flow (L/min) | Max. Pool Size (L) | Min. Backwash (L/min) | Media Volume (L) | Glass Pearl (kg) | Eco Pure 0.815–1.5 (kg) | Sand 16/30 (kg) | Zeolite 1–2.2 (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E600 Plus | 40 | 600 | 0.28 | 360 | 226 | 81,360 | 189 | 120 | 194 | 162 | 175 | 144 |
| E602 Plus | 50 | 600 | 0.28 | 360 | 226 | 81,360 | 189 | 120 | 194 | 162 | 175 | 144 |
| E702 Plus | 50 | 700 | 0.38 | 430 | 308 | 110,800 | 257 | 185 | 298 | 250 | 270 | 222 |
*All specifications taken directly from official Waterco sources.
| Component | Domestic Installations | Commercial Installations |
|---|---|---|
| Exotuf Filters | 10 Years (conditional) | 5 Years (conditional) |
| Filter Tank | 10 Years | 5 Years (1 year full + 4 years pro rata) |
| Multiport Valve | 2 Years | 2 Years |
| Other Components | 1 Year | 1 Year |
Please refer to Waterco’s full warranty terms and conditions for additional details.
Frequently Asked Questions
Q1: What makes the Exotuf Plus different from the standard Exotuf?
The Exotuf Plus features a deeper filter bed and larger tank design, giving it superior dirt-holding capacity and making it ideal for larger pools or semi-commercial applications.
Q2: What media can I use in this filter?
The Exotuf Plus is compatible with sand, recycled glass media, and zeolite. Media selection depends on your filtration goals and water clarity requirements.
Q3: What pool sizes can this filter handle?
Depending on the model, the Exotuf Plus range can manage pools up to 110,000 litres. Always oversize the filter for optimal performance.
Q4: How often do I need to backwash the filter?
Backwashing frequency depends on pool usage and debris load. Typically, every 2–4 weeks under normal residential conditions.
