Waterco Micron W & WD Deep Bed Media Filters

600-1000mm deep-bed filtration for residential and commercial water treatment

Waterco’s Micron W & WD media filters are purpose-built deep-bed filters designed to treat the entire incoming water supply, delivering clear, conditioned water to every outlet. With a 600 mm media bed in Micron W and an extra-deep 1000 mm bed in Micron WD, these vessels provide enhanced in-depth filtration and higher dirt-holding capacity for residential, commercial and industrial applications. Their filament-wound fibreglass construction and 7 bar (700 kPa) pressure rating make them ideal for demanding water treatment duties where reliability and performance are critical.

Micron W & WD filters can be configured with different filtration media (such as 16/30 silica sand or Zeoplus® zeolite) to suit applications including whole-of-house filtration, tank and bore water treatment, iron and manganese reduction, water features and light industrial processes. A compatible multiport valve streamlines backwashing and rinsing, while hydraulically balanced internals support even flow distribution through the deep bed. Premium Pool Equipment can help you select the right model and media combination for your project, and for customers in the Perth region we can coordinate professional installation and commissioning as part of a complete treatment solution.

• Deep-bed filtration — Micron W models use a 600 mm media bed, while Micron WD models extend this to 1000 mm, increasing contact time, improving fine-particle capture and boosting dirt retention capacity.

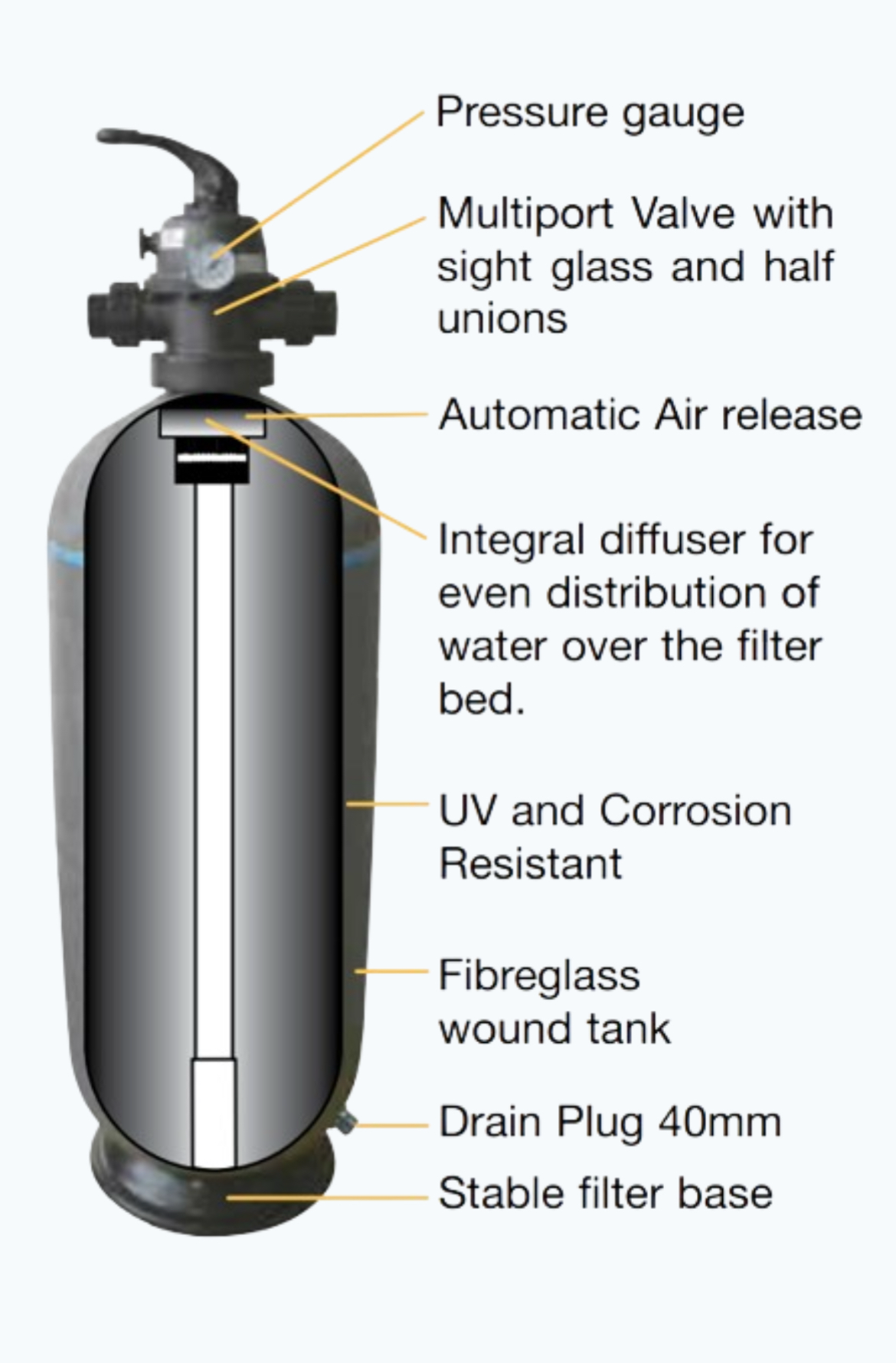

• High-strength fibreglass vessel — blow-moulded inner shell reinforced with precision filament-wound fibreglass for working pressures up to 700 kPa (7 bar) and long-term resistance to corrosion.
• Versatile water treatment applications — suitable for incoming household water supply, water tanks, bore and well water, iron/manganese reduction, water features and a range of commercial and industrial processes.
• Efficient multiport operation — designed to work with compatible multiport valves to provide filter, backwash, rinse and bypass functions, simplifying operation and maintenance.
• Optimised hydraulics — carefully engineered internal laterals and diffusers promote even flow through the media bed and effective scouring during backwash, helping maintain performance between service intervals.
• Flexible media choices — factory-rated for 16/30 silica sand or Zeoplus® zeolite, with model-specific media quantities listed in the comparison table below.
• Scalable model range — tank diameters from 250 mm to 700 mm with matching deep-bed volumes, making it straightforward to size a filter that matches your design flow rate and duty.

*Summary only. Always refer to Waterco’s official Warranty Terms and Conditions for full details, inclusions and exclusions.

*All hydraulic and media specifications are taken directly from Waterco Micron W & WD technical literature. Always confirm final sizing against your system design requirements and applicable standards.
