Waterco Opal Cartridge Filters
We sell below minimum advertised price. Inquire to request our best price.
Description

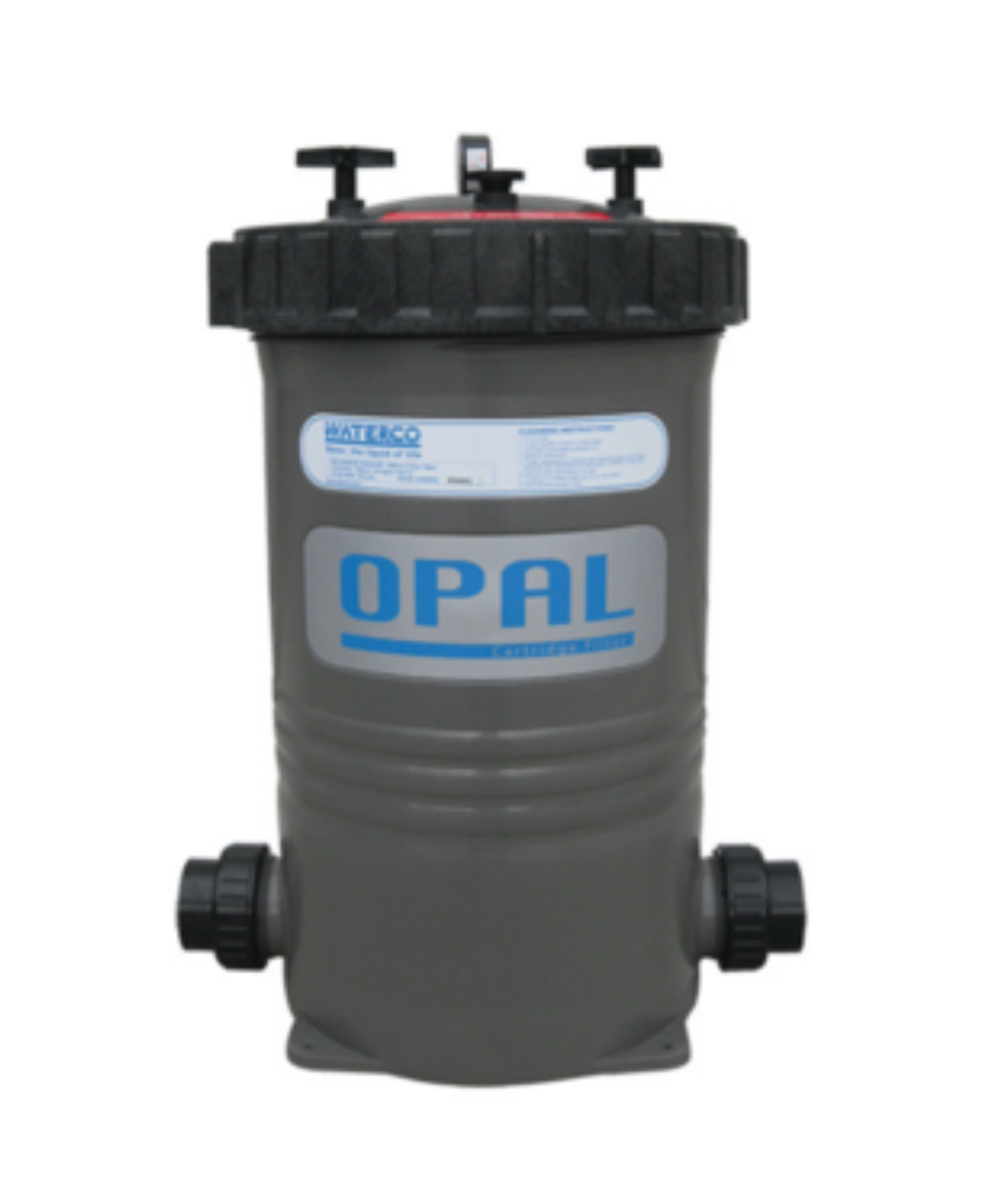

Waterco Opal Cartridge Filters — Opal 135 · Opal 180
Minimal fuss, maximum clarity
The Waterco Opal Cartridge Filter is designed to eliminate the hassle of media-based filtration. The pleated reusable cartridge delivers high surface area for efficient dirt capture, meaning fewer cleanings and longer intervals between maintenance. Built tough with a polypropylene tank and easy-access screw-on lid, Opal makes pool care simple and durable.
Ideal where backwashing is difficult or water conservation is important, these filters perform under pressure and with low maintenance demands. With working pressures up to 250 kPa, temperature ratings as low as 4°C all the way to 50 °C, and high flow capacity, Opal keeps your pool sparkling without over-engineering.
Key Features
- Pleated, reusable polyester cartridge with high dirt holding capacity (12.5–16.7 m²) to reduce cleaning frequency.
- Screw-on lock-ring lid for fast cartridge removal and cleaning.
- No sand, DE or media — just cartridge filtration. Cleaner, simpler, less mess.
- High maximum flow rates (~510 L/min) and large pool size capacity (~183,600 L) for Opal 135 and Opal 180.
- Solid, high-impact polymer tank built for rugged conditions.
- Built-in pressure gauge & air relief valve to help maintain optimal filtration performance.
Model Comparison Table
| Model | Filter Area (m²) | Max Flow (L/min) | Working Pressure (kPa) | Max Pool Size (L) |
|---|---|---|---|---|
| Opal 135 | 12.5 (135ft²) | 510 | 250 (50psi) | 183,600 |
| Opal 180 | 12.5 (180ft²) | 510 | 250 (50psi) | 183,600 |
*Specifications based on Waterco Opal Cartridge Filter official sources.
Warranty (Australia)
- Opal Filter Tank: 10 years (5 years full + 5 years pro-rata)
- Other components: 1 year
- Labour: 1 year
Waterco Opal Cartridge Filters — Opal 135 · Opal 180
Minimal fuss, maximum clarity
The Waterco Opal Cartridge Filter is designed to eliminate the hassle of media-based filtration. The pleated reusable cartridge delivers high surface area for efficient dirt capture, meaning fewer cleanings and longer intervals between maintenance. Built tough with a polypropylene tank and easy-access screw-on lid, Opal makes pool care simple and durable.
Ideal where backwashing is difficult or water conservation is important, these filters perform under pressure and with low maintenance demands. With working pressures up to 250 kPa, temperature ratings as low as 4°C all the way to 50 °C, and high flow capacity, Opal keeps your pool sparkling without over-engineering.
- Pleated, reusable polyester cartridge with high dirt holding capacity (12.5–16.7 m²) to reduce cleaning frequency.
- Screw-on lock-ring lid for fast cartridge removal and cleaning.
- No sand, DE or media — just cartridge filtration. Cleaner, simpler, less mess.
- High maximum flow rates (~510 L/min) and large pool size capacity (~183,600 L) for Opal 135 and Opal 180.
- Solid, high-impact polymer tank built for rugged conditions.
- Built-in pressure gauge & air relief valve to help maintain optimal filtration performance.
| Model | Filter Area (m²) | Max Flow (L/min) | Working Pressure (kPa) | Max Pool Size (L) |
|---|---|---|---|---|
| Opal 135 | 12.5 (135ft²) | 510 | 250 (50psi) | 183,600 |
| Opal 180 | 12.5 (180ft²) | 510 | 250 (50psi) | 183,600 |
*Specifications based on Waterco Opal Cartridge Filter official sources.
- Opal Filter Tank: 10 years (5 years full + 5 years pro-rata)
- Other components: 1 year
- Labour: 1 year
Frequently Asked Questions
Q1: What is the main advantage of a cartridge filter like Opal?
It eliminates sand or DE media, which means no periodic backwashing; instead the cartridge cleans easily with a hose. Less water waste and simpler maintenance.
Q2: How often do I clean or replace the cartridge?
Hose-clean whenever the pressure gauge rises noticeably above normal working pressure. Fully replace when fabric is worn or pleats damaged.
Q3: What size pool can Opal 135 & 180 handle?
Up to approx. 183,600 L under proper circulation (assuming correct pump matching).
Q4: What are the pressure & temperature limits?
Operating up to 250 kPa, with temperatures up to ~ 50 °C. Works well in warm climates and heavy-use pools.
